Summary of Contents for OSD Audio PA90

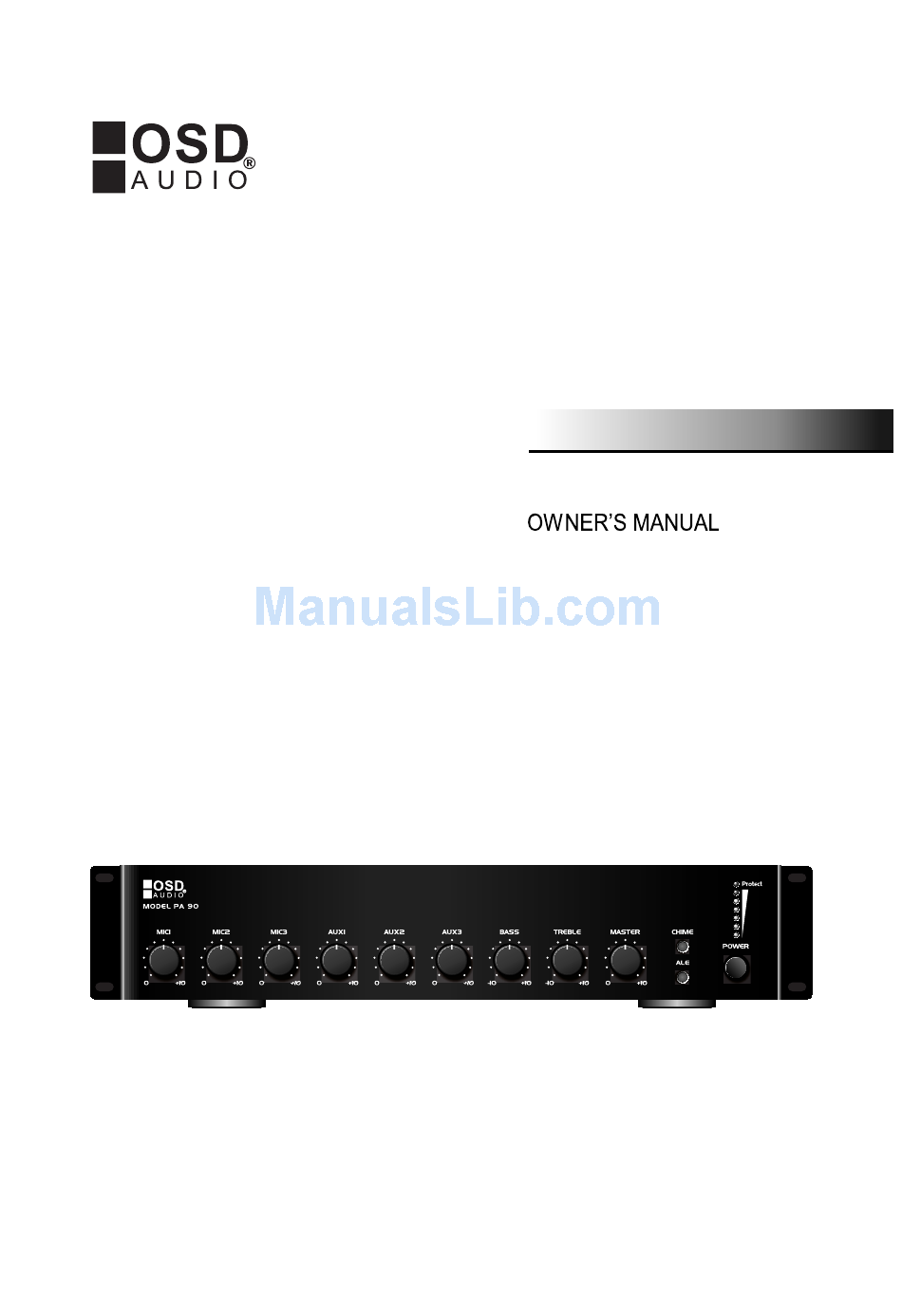

- Page 1 PA90 PA Amplifier...
- Page 2 TO PREVENT FIRE OR SHOCK HAZARD, DO NOT USE THIS PLUG WITH AN Ÿ EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE. TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THE APPLIANCE TO RAIN Ÿ...
- Page 3 Read these instructions. Keep these instructions. Read all warnings. Follow all instructions. Do not use this appliance near water. Clean only with dry cloth. The Equipment shall be operated in open area. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

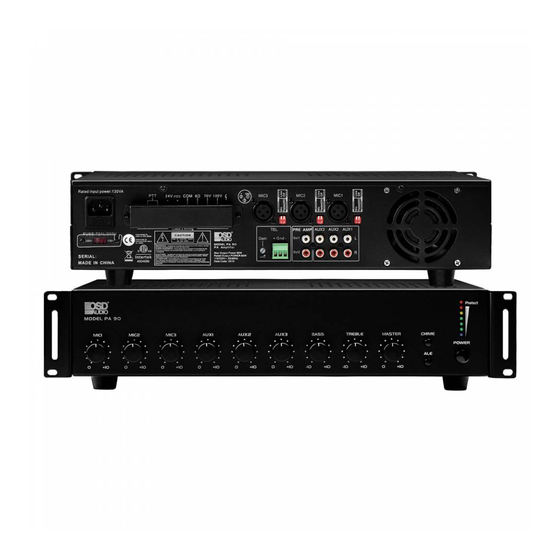

- Page 4 “Gain” beside the terminal block. There is a total of 7 inputs on the rear panel of the PA90 Commercial Amplifier including 3 MIC inputs, 3 AUX inputs, The PA90 commercial amplifier also has 1 pair of RCA and 1 TEL input with input gain adjustment.
- Page 5 The 24V DC connectors allow you to connect external back up misapplication, alteration, faulty installation, modification, power supply to OSD PA90. It helps you th use OSD PA90 in service by anyone other than OSD AUDIO or damage that is applications that must continue to operate in case of a power attributable to acts of god.
- Page 6 Talk(PTT)” function. INSTALL UNIT IN RACK In this configuration, the OSD PA90 is set to install in a 19" rack. When mount it I a rack, make sure the mounting brackets are well fixed by the screws and remove the 4 feet from the bottom of the unit.
