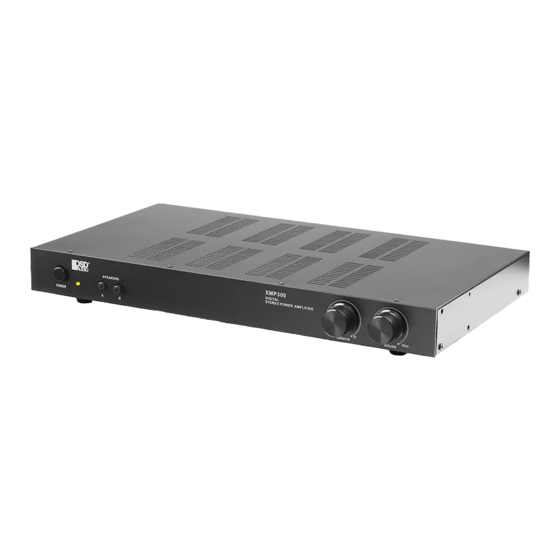

OSD Audio XMP300 Owner's Manual

XMP300
Digital Stereo Power Amplifier

FEATURES:

MAIN / INTERRUPT priority input switching
MAIN auxiliary output
Speaker A/B switching
Front panel Balance and Volume controls
Signal sensing "Power On" and Trigger mode
Rear mounted treble and bass controls

SPECIFICATIONS

Stereo (8 ohm): 150W x 2, <1% THD+N
Stereo (4 ohm): 300W x 2, <1% THD+N
Bridged Mono (8 ohm): 450W, 1kHz, <1% THD+N
Frequency Response: 10Hz ~ 30kHz, -2dB/ +1dB
Signal to Noise Ratio: 100dB below 150W output into 8 ohms
w/20kHz Lowpass filter
Channel Separation: 65dB @ 1kHz, referred to 150W output
into 8 ohms
Input Sensitivity: 700mV input for rated 150W output
into 8 ohms
Bass/Treble Control: +/- 12dB @ 100Hz and 10kHz
AC Power Consumption: 450W maximum
Net Weight: 7.9lbs / 3.7kgs
Gross Weight: 10.7lbs / 5kgs
OSD Audio
775 Columbia St.,
Brea. CA92821
www.osdaudio.com
Congratulations on your purchase of the OSD Audio XMP300.
Please take a few moments to read this entire manual, and be sure to
retain this document for future reference. Please read and observe all
safety instructions detailed on page 2.
NOTE: If any part of this product is damaged or missing, please call your
dealer or OSD Audio directly at 562-697-2600.
Please read your warranty and retain your receipt and original carton
for possible future use.
For more information about OSD Audio electronics, speakers and
accessories please visit www.osdaudio.com
2.15"
(55mm)
11"
(280mm)
XMP300
OWNER'S MANUAL
16.9" (430mm)
XMP300 Owner's Manual 51115
