- Page 1 INSTALL GUIDE ZHAGA CONTROLLER DOC-1000647-A-3 Page 1 2/16...

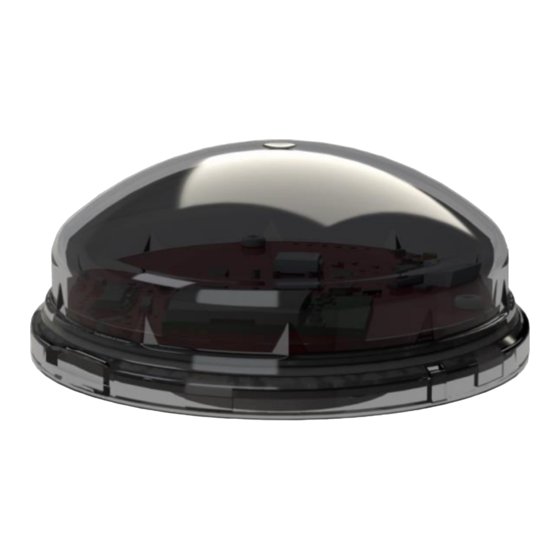

- Page 2 Part Number: ZHA-S1 DESCRIPTION The Zhaga Controller provides wireless control of LED fixtures that have DALI-2 LED drivers and standard Zhaga connectors. SPECIFICATIONS • Radio Frequency: 2.4 GHz (IEEE 802.15.4) • RF Transmission Output Power: +20dBM • Operating Temperature: -40 to +70 C •...
- Page 3 FIGURE 1 Bottom View of the Zhaga Controller Note the key location at the bottom INSTALLATION INSTRUCTIONS TURN OFF POWER AT CIRCUIT BREAKER OR FUSE AND VERIFY THAT POWER IS OFF BEFORE WIRING! If applicable, remove the sealing cap or lighting control device currently installed in the fixture receptacle. Align the Zhaga Lighting Controller such that the contacts pins are positioned above the receptacle contact.
- Page 4 Declaration of Conformity (FCC 96-208 & 95-19): Synapse Wireless, Inc. declares that the product name “ZHA-S1” to which this declaration relates, meet the requirements specified by the Federal Communications Commission as detailed in the following specifications: •...
