SimplySNAP
The instructions within this section will help you set up and configure a SimplySNAP lighting solution.
For later maintenance tasks, individual sections later in this guide will also have the information
needed to perform these edits.
System Requirements
• Synapse SimplySNAP SS420 Site Controller
• Synapse light controllers
• Laptop or tablet running Chrome browser
• (Optional) Sensors and switches
Lighting System Configuration Overview

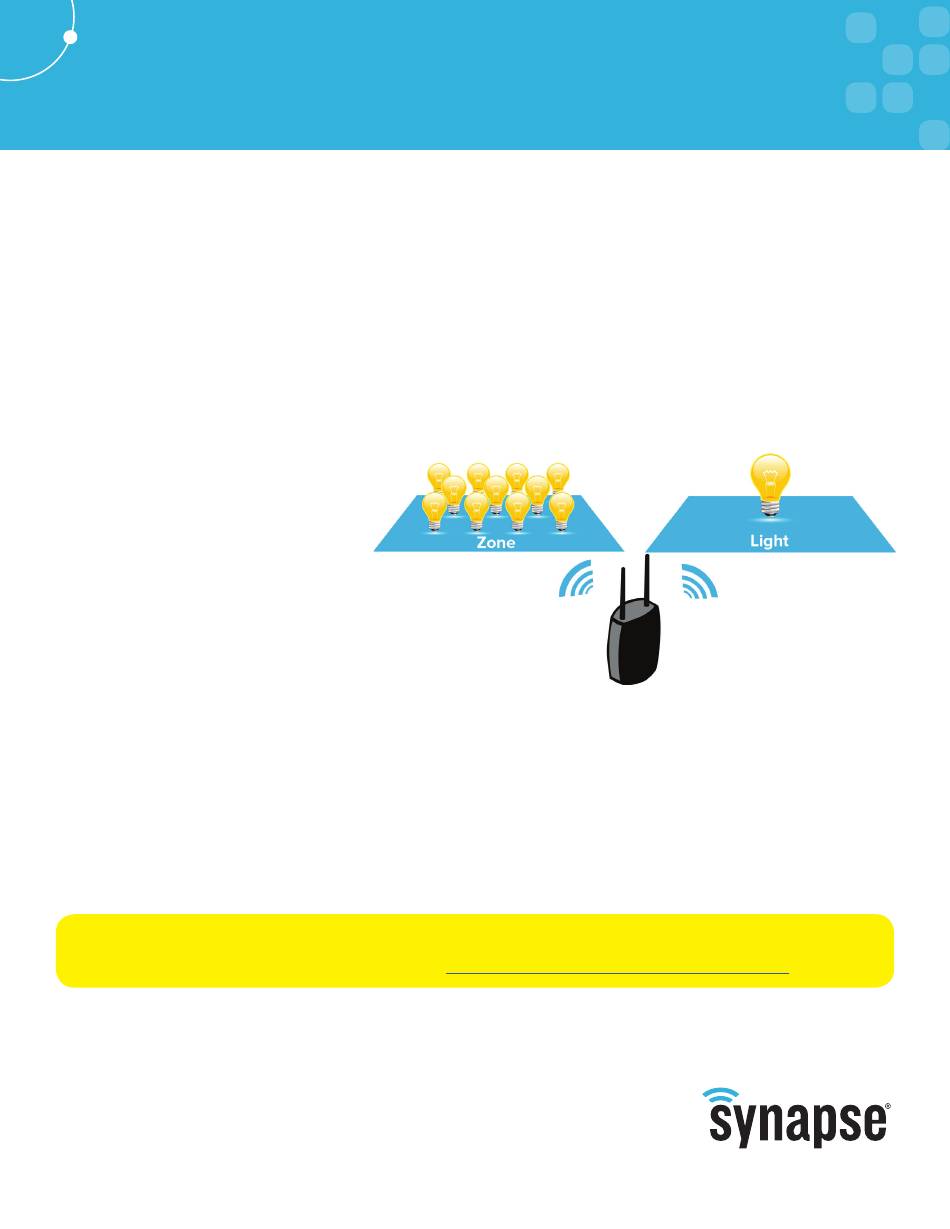

A SimplySNAP lighting solution
consists of a Synapse SS420 site
controller and some number of
lights equipped with Synapse light
controllers and sensors.

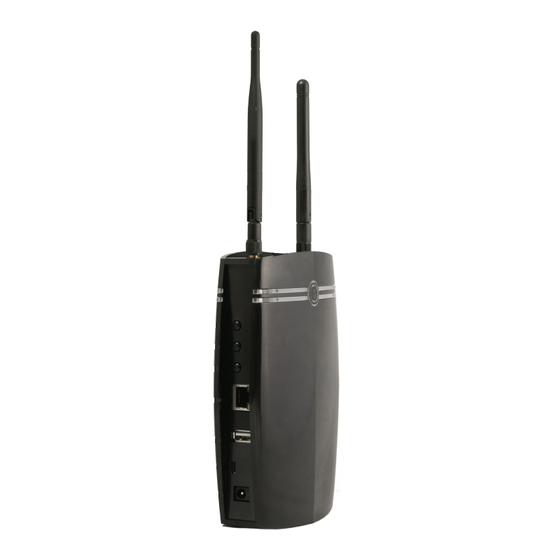

The SS420 site controller
serves as the hub of control and
communications for managing the
lights that make up the lighting
solution.
Hardware Installation
The first step in installing a SimplySNAP lighting solution is to connect the physical hardware of
the system, followed by configuration of the system within the SimplySNAP user interface. These
instructions assume that you have already installed Synapse Lighting Controllers for the lights that will
make up your SimplySNAP lighting solution and you are now ready to connect the site controller.
For more detailed instructions, including usage and configuration information, please
download the SimplySNAP User Guide from www.synapse-wireless.com/SImplySNAP.
Call Dave Medinis 239 841 3283
©2008-2015 Synapse, All Rights Reserved. All Synapse products are patent pending. Synapse, the Synapse logo,
SNAP, and Portal are all registered trademarks of Synapse Wireless, Inc.
Quick Install Guide
116-071514-003-C000
Advertisement
Table of Contents
Related Manuals for Synapse SimplySNAP SS420
Summary of Contents for Synapse SimplySNAP SS420
- Page 1 SimplySNAP user interface. These instructions assume that you have already installed Synapse Lighting Controllers for the lights that will make up your SimplySNAP lighting solution and you are now ready to connect the site controller.
- Page 2 Once you select the SSID and your computer attempts to connect to the Wi-Fi connection of your site controller, it will prompt you for a password to complete the connection. Enter the password synapse!wireless to establish the connection. Page 2...
- Page 3 SimplySNAP Continued When this password is entered a connection is established and will appear in your network settings similar to what is shown below. This may appear as an “Unidentified network” with no Internet access. Now launch the Chrome browser and enter HTTPS://192.168.55.1 in the address bar.
- Page 4 SimplySNAP Continued To retrieve a DHCP assigned IP address: 1. Connect to the site controller via WiFi as described above and log in. 2. Click the Config menu item in the left menu bar, then click the System Info tab near the top of the screen.
- Page 5 SimplySNAP Continued Change the Login information for the site controller: You should next change the default username and password to a custom username and password. Click Config in the left menu bar, then click the Change Login tab. You can change the username and password by following the on-screen instructions.
- Page 6 SimplySNAP Continued Adding Lights To add a light, access the SimplySNAP dashboard and then click the Devices & Zones menu choice in the Left Menu Bar. To add a new light: 1. Click the Add Light Icon near the top of the page. 2.
- Page 7 SimplySNAP Continued Adding Sensors and Switches Sensors and switches contribute to the “intelligence” of your Lighting system. With sensors in place your system will be able to respond to events such as a person entering or leaving the area. Switches can act as a manual way to activate lights without needing to log in to the SimplySNAP interface.
