Synapse DIM10-220 Installation Manual

Failure to follow these instructions could cause damage to the equipment and voids the warranty.

WARNING AND CAUTIONS:

• TO AVOID FIRE, SHOCK, OR DEATH; TURN OFF POWER AT CIRCUIT BREAKER OR FUSE AND TEST THAT POWER IS OFF BEFORE
INSTALLATION!
• Risk of Electric Shock - More than one disconnect switch may be required to de-energize the equipment before servicing.
• To be installed and/or used in accordance with appropriate NEC, local electrical codes, and regulations.
• If you are unsure about any part of these instructions, consult an electrician; all work should be performed by qualified personnel.
WARNING AND CAUTIONS MULTI PHASE POWER:
• On Multi-phase circuits, the DIM10-220 only switches one leg of power. Even though the light is not on, the 2nd phase that lands on
the neutral wire is hot.
• If the LEDs of a luminaire have a slight glow when SimplySNAP instructs the DIM10-220 to turn off the power, the other phase is still
hot. The LED glow is caused by voltage potential created by the LED driver and the LED array. This is not a function of the control
device. This is an isolation issue with the LED circuit.

SPECIFICATIONS:

• Dimensions: 6.1" L x 2.1" W X 1.6" H
• Mounting: ½" Conduit Knock Out, in Luminaire or Pole Hanging Kit
• Input Power: 120 - 277VAC, 50/60 Hz : Phase to Phase power is supported, the controller only switches one phase.
• Load Rating: 5A@ 120 – 277VAC (+/- 10%)
• Surge Rating: 6kV
• Operating Temperature: -40 to +70 C
• IP Rating: IP65
• Dimming Control: 0-10VDC, 30 mA, Class 1/2
• Wiring: 15" wires attached (+/- 1" )
• Radio: 2.4 GHz (IEEE 802.15.4), +20 dBm Transmit Power, -103 Receive Sensitivity
• Sensor Input: 0-24V
• Sensor Power Supply: 24VDC @ 20mA
• Power Monitoring: 2% accuracy, Compiant with ANSI C136.52
• Power Readings: Watts, Voltage
• Certifications: c(UL)us, FCC/IC, RoHS
• Warranty: 5 Years. See
• Default State – Switched "LOAD" 100% energized

Controller Part Numbers:

• DIM10-220-F (with internal antenna)
• DIM10-220 (with external antenna cable and Female RPSMA bulkhead connector, antenna not included).

Included Hardware:

• DIM10-220-F (with internal antenna) includes main controller with attached wires and metal locknut for securing unit to a standard
½" knockout
• DIM10-220 (with external antenna) includes main controller with attached wires, antenna cable with bulkhead, dust cap, and
mounting bracket.

Required Materials (Not included):

• If installing the DIM10-220, you will require a 50 OHM Terminator Plug for proper installation. Amphenol P/N 132360RP
• Wiring Connectors: All existing wiring connectors must be replaced with new UL listed wiring connectors. All wiring connectors must
be correctly sized for the application and the number and the size of the electrical conductors.
• If installing a DIM10-220, you will require an external antenna.
• For more details and information about available antenna options, please check

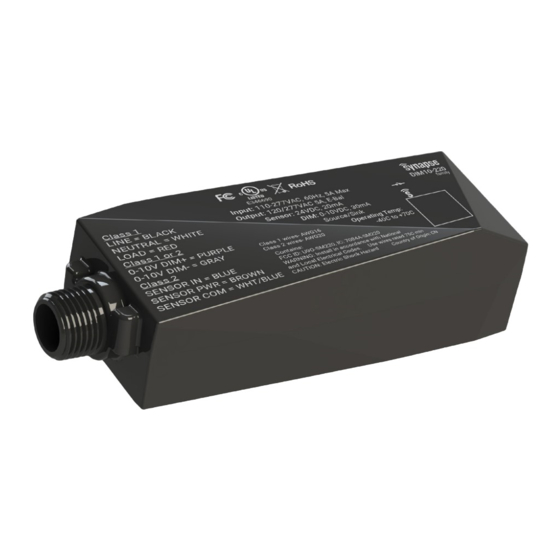

DIM10-220 and DIM10-220-F Bolt-on Lighting Controllers
0-10V DIMMER CONTROL, 1 SENSOR INPUT
www.synapsewireless.com/warranty
INSTALLATION GUIDE
for warranty terms.
Page 1
www.synapsewireless.com/documentation/
DOC-1000512-A-2
