SimplySNAP
The instructions in this guide provide a basic overview for quickly getting results from a SimplySNAP lighting
solution. They are intended to get you up and running quickly, and should be used for initial testing and proof of
concept operations. There are several ways to commission a SimplySNAP solution, and we recommend that
before you attempt a full installation, you review these options in the SimplySNAP User Guide available at:
help.synapse-wireless.com/Lighting/
Installation Overview:
Connect the site controller and turn it on
l
Log in to the site controller
l
Conduct a system census to discover lights
l
Configure and place lights
l
Control the lights
l
Once these steps are complete, you'll have a good feel for how a full installation will work and behave, and a
clearer picture for how you'll want the full installation to be configured.
System Requirements
Synapse Wireless SimplySNAP Site Controller
l
Synapse Wireless light controllers
l
Laptop or tablet running the Google Chrome browser
l
6723 Odyssey Drive
//
Huntsville, AL 35806
(877) 982-7888
//
synapse-wireless.com
©2008-2017 Synapse Wireless, All Rights Reserved. All Synapse Wireless products are patent pending. Synapse Wireless the Synapse
Wireless logo, SNAP, and Portal are registered trademarks of Synapse Wireless.
Quick Install Guide
116-071514-003-J-0
Advertisement
Table of Contents
Related Manuals for Synapse SimplySNAP
Summary of Contents for Synapse SimplySNAP
- Page 1 Quick Install Guide The instructions in this guide provide a basic overview for quickly getting results from a SimplySNAP lighting solution. They are intended to get you up and running quickly, and should be used for initial testing and proof of concept operations.
-
Page 2: Lighting System Configuration Overview

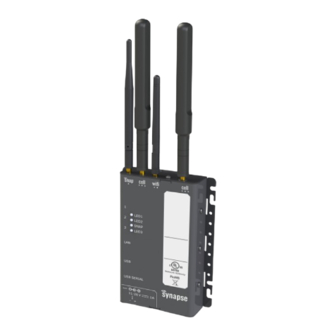

Lighting System Configuration Overview A SimplySNAP lighting solution consists of a SimplySNAP Site Controller and some number of lights equipped with Synapse Wireless light controllers, and potentially sensors and/or switches. Page 2 SimplySNAP... - Page 3 The SimplySNAP Site Controller serves as the hub of control and communications for managing the lights that make up the lighting solution. NOTE: In most of this document an SS420 site controller is used for illustration. The SS450 has extra antennas for cellular service but is otherwise identical.
-
