Synapse DIM10-087-06-FW Installation Manual

WARNING AND CAUTIONS:
• TO AVOID FIRE, SHOCK, OR DEATH: TURN OFF POWER AT CIRCUIT BREAKER
OR FUSE AND TEST THAT POWER IS OFF BEFORE INSTALLING!
• PROPER GROUNDING REQUIRED TO AVOID STATIC DISCHARGE WHICH
CAN DAMAGE CONTROLLERS DURING INSTALLATION.
SPECIFICATIONS
• Dim Control Max Load: 10 mA Source/Sink
• Radio Frequency: 2.4 GHz (IEEE 802.15.4)
• RF Transmission Output Power: +20dBM
• Operating Temperature: -40 to +85 C
• Operating Humidity: 10 to 90%, non-condensing
• DALI-2: Limited to 6 LED Drivers
• Wire Size: 18 AWG, 8" Wires, UL1316, 600V
• Dimensions: 2.25" L x 2.0" W x .3" H
(57 x 50.8 x 7.6 mm)
CAUTION
DIM10-087-06-FW controllers must be installed in
accordance with national, state, and local electrical
codes and requirements.
DESIGN CONSIDERATIONS
Below are some recommendations for successful
dimming using the DIM10-087-06-FW. The dimming
control wires are referenced as Dim+ and Dim-. The
dimming signals have a Maximum voltage of 10V DC.
• Do not ground the DIM- wire to chassis ground;
this is a return signal and is critical for proper
dimming.
• Route dimming wires away from AC lines if
possible.
• For DALI applications – Maximum of 8 LED Drivers
supported per controller.
• Do not mount to a heatsink or to a LED driver.
• When installing the DIM10-087-06-FW into an
enclosure, consideration of the internal antenna
position and interference is required in order to
provide the most optimum wireless signal
strength. Prior to permanently mounting it, make
sure the antenna is free of any metal objects
within 12 in. of the antenna.

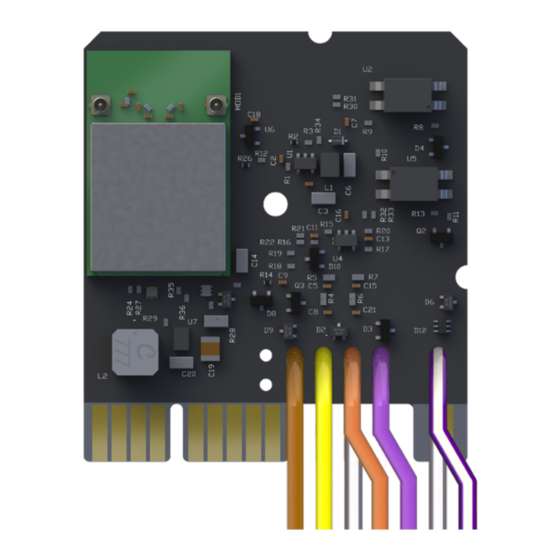

DIM10-087-06-FW Controller
Load Ratings: 700mW @ 5 to 24V DC
Operating Temperature: -40 to +85 C / Operating Humidity: 10 to 90%, non-condensing
INSTALLATION GUIDE
INSTALLATION INSTRUCTIONS
WARNING: TO AVOID FIRE, SHOCK, OR
DEATH: TURN OFF POWER AT CIRCUIT
BREAKER OR FUSE AND VERIFY THAT POWER IS
OFF BEFORE WIRING!
MOUNTING
1.
Place the controller in desired location and secure
it using a #4 or M3 sized screw using the mounting
hole located in the center of the DIM10-087-06-
FW.
WIRING THE DIM10-087-06-FW
CONTROLLER
Note: Unless specified, the connections to a
standard Dim to Off LED driver and the DALI 2
LED driver are the same.
2. Connect the POWER (BROWN) wire of the DIM10-
087-06-FW to the 5-24V DC Aux output from the
LED driver.
3.
Connect the DIM- and DALI- (GRAY/WHITE
STRIPE) wires of the DIM10-087-06-FW to the
COMMON/DALI- or COMMON/DIM- based on the
LED driver you have.
WARNING AND CAUTIONS:
• If you are unsure about any part of these instructions, consult an electrician; all
work should be performed by qualified personnel.
• Disconnect power at circuit breaker or fuse when servicing, installing or removing
fixture or changing lamps.
CONNECTING SENSORS
Note: Steps 4-7 are for adding sensors to the
DIM10-087-06-FW controller; if you are not
connecting sensors skip this section.
There are two sensor inputs on the DIM10-087-06-FW
designed for low powered (24V DC) type sensors.
•
•
4.
Connect the sensor power wire to the AUX out on
the LED driver (the LED driver powers the sensor).
5.
Connect the sensor Common to the
COMMON/DALI- or COMMON/DIM- based on the
LED driver you have.
6.
Connect the
SENSOR B (ORANGE) wire
controller to the sensor CTRL/Control wire.
7. If you are using more than one sensor then
duplicate the installation as described above.
(See Figures 1 AND 2)
CONNECTING THE DIMMING CIRCUIT
Note: Steps 8-10 are for connecting up to a
Standard Dim to Off LED driver; if you are using a
DALI 2 LED driver skip to steps 11-13.
8.
Connect the DIM+ (PURPLE) wire from the DIM10-
087-06-FW to the DIM+ wire on the LED driver.
9.
Connect the DIM- (GRAY/WHITE STRIPE) wire
from the DIM10-087-06-FW to the COMMON/DIM-
wire on the LED driver.
10.
Cap the unused DALI+ (PURPLE/WHITE STRIPE)
wire.
(See Figure 1)
The SENSOR A (YELLOW) wire is used to
connect sensor A.
The SENSOR B (ORANGE) wire is used to
connect sensor B.
SENSOR A (YELLOW) wire or the
of the DIM10-87-06-FW
DOC-1000316-A-1
