Synapse TL7-HVG Manual

WARNING AND CAUTIONS:
• TO AVOID FIRE, SHOCK, OR DEATH; TURN OFF POWER AT CIRCUIT BREAKER OR
FUSE AND TEST THAT POWER IS OFF BEFORE INSTALLING!
• The TL7-HVG should only be installed in a fixture with a NEMA/ANSI C136.41 receptacle.
• Device is rated up to 6kV surge, take steps to install an external surge protector for
additional protection.
• Failure to follow these instructions and warnings could potentially void warranty.
SPECIFICATIONS
•
Relay Max Switch Circuit:
o 5A @ 110-277VAC (+/- 10%)
3A @ 347VAC (+/- 10%)
o
2A @ 480VAC (+/- 10%)
o
• Dim Control Max Load: 20mA
• Radio Frequency: 2.4 GHz (IEEE 802.15.4)
• RF Transmission Output Power: +20dBM
• Operating Temperature: -40 to +70 C
• Operating Humidity: 0 to 90%, non-condensing
• Dimensions: 3.3" D x 3.9" H
(84mm D x 98mm H)
• Surge Protection: 6kV
• Sensor Input: 24V
• Sensor Power Max Load: 24VDC, 50mA peak and
20mA continuous
WIRING DETAILS OF C136.41 SOCKET
If a motion sensor or the C136.41 socket needs to be
wired up prior to installing the TL7-HVG, please refer to
the wiring details.
(See Figure 1)
WARNING:
· If a single Synapse controller is used to drive the DIM+ input of multiple LED drivers, then all of the DIM- lines
from all drivers MUST be directly tied/shorted together to provide a common return/ground to the controller.
· Synapse will not warranty or be liable for designs with any other electronic means of coupling DIM- lines from
multiple drivers.

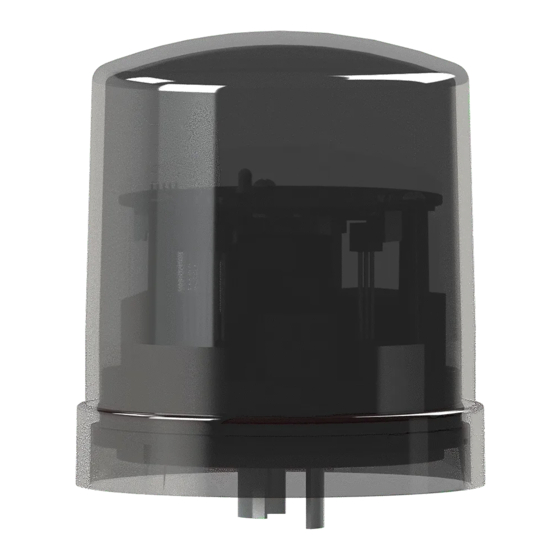

TL7-HVG Lighting Controller
Load Rating: 110-480VAC ±10%
WARNING AND CAUTIONS:
• If you are unsure about any part of these instructions, consult an electrician; all
work should be performed by qualified personnel.
• TL7-HVG controllers must be installed in accordance with national, state, and
local electrical codes and requirements.
INSTALLATION GUIDE

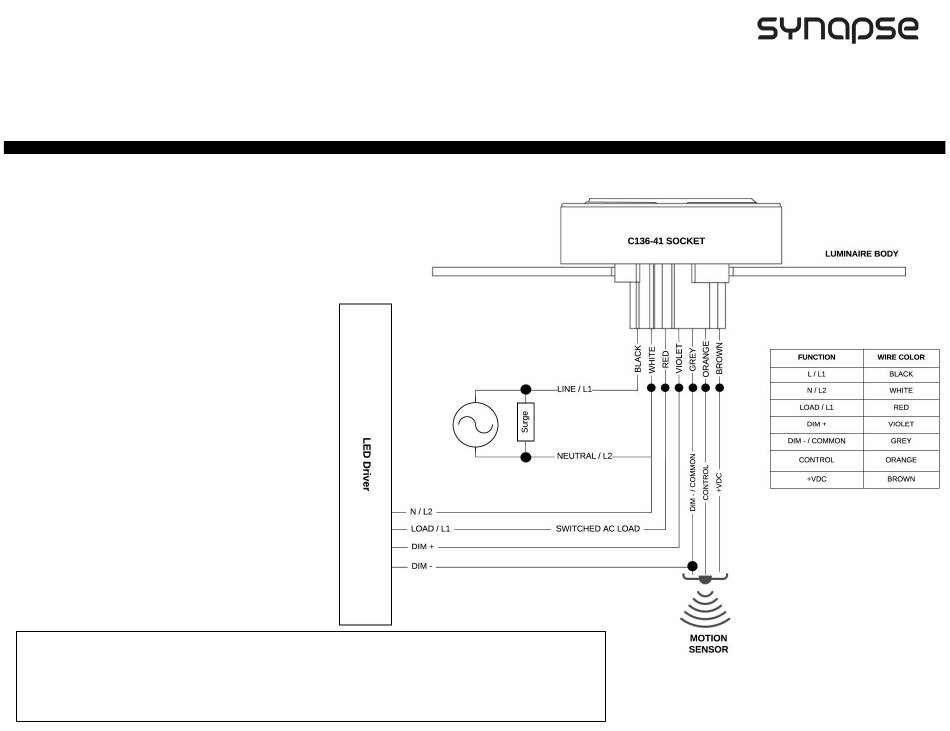

Figure 1 – C136.41 Socket Wiring Details
DOC-1000496-A-5
