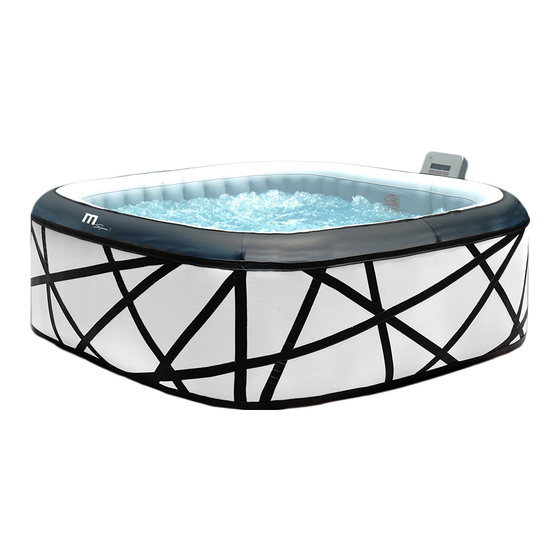

mspa Soho M-029S Owner's Manual
  1. Manuals
  2. Brands
  3. mspa Manuals
  4. Hot Tub
  5. Soho M-029S
  6. Owner's manual

mspa Soho M-029S Owner's Manual

Hide thumbs Also See for Soho M-029S:

Advertisement

Table of Contents

www.the-mspa.com
MSpa® Owner's Manual
and Warranty Card
M-029S
M-112S
M-114S
M-031S
EN
DO NOT RETURN MERCHANDISE TO YOUR DEALER STORE DIRECTLY. CALL MSPA AFTER
SALES SERVICE CENTER FOR PRODUCT QUESTIONS OR CONTACT MSPA AT
info@the-mspa.com
Due to MSpa continuous product improvement, MSpa reserves the right to change
specifications and product appearance, which may result in updates to the
instruction manual without notice.
®
Where Luxury Is Affordable
Soho
Castello
Super Castello
Camaro
M-051S
M-113S/115S
M-123S/125S
Super Camaro
Luxury Exotic
Birkin

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Soho M-029S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for mspa Soho M-029S

Summary of Contents for mspa Soho M-029S

  • Page 1 M-123S/125S Birkin M-031S Camaro DO NOT RETURN MERCHANDISE TO YOUR DEALER STORE DIRECTLY. CALL MSPA AFTER SALES SERVICE CENTER FOR PRODUCT QUESTIONS OR CONTACT MSPA AT info@the-mspa.com Due to MSpa continuous product improvement, MSpa reserves the right to change specifications and product appearance, which may result in updates to the...

  • Page 2: Table Of Contents

    To guide you in your initial MSpa experience, we are pleased to present you with this instruction manual. Please carefully and thoroughly read this manual entirety before using the product for the first time. We are delighted to welcome you to the MSpa family, and look forward to sharing with you the full spectrum of our expertise.

  • Page 3: Safety Precautions

    SAFETY PRECAUTIONS For your own safety and that of your product, make sure to following the safety precautions below. Fail to follow the instruction may result in serious injury, property damage or death. Improper installation or operation will void the warranty. READ, UNDERSTAND AND FOLLOW ALL INSTRUCTIONS DANGER Risk of Accidental Drowning.
  • Page 4 Residential electrical connection box must be located safely with a distance of at least 2m away from the spa. Electric installation should fulfill the local requirement or standards. Do not press down or uplift the control panel or put any heavy items on the control panel after installations.
  • Page 5 several degrees above the normal body temperature 37°C(98.6°F). The symptoms of hyperthermia include an increase in the internal temperature of body, dizziness, lethargy, drowsiness, and fainting. The effect of hyperemia include failure to perceive heat; failure to recognize the need to exit spa; unawareness of impending hazard;...
  • Page 6 For water already used, discharge it in time or use water chemicals for cleaning. Usually,change water every 3-5 days. Use Mspa chemical kit for disinfection in accordance with manufacture's instructions. Do not leave or set up the spa in temperature lower than 4°C if heater is not operating.
  • Page 7 Warning: Water protection levels of appliance at different product zones are different see the following scheme. ( Installation regulations comply to IEC 60364-7-702) NOTE-The measured zone dimensions are limited by walls and fixed partitions. Zones Description of the zones Zone 0 Zone 0 is the interion of the basin including any recesses in their walls or floors.

  • Page 8: Specifications & Product Overview

    SPECIFICATIONS BUBBLE SPA (EU, UK, SW ) Seating Water Outside Inside Model No. Shape Dimensions Height Weight Capacity Capacity Dimensions Square 4 + 2 930Ltr/245gal 1.85m/73” 1.45m/57” 0.68m/27” 35kg/77.2lbs M-029S SOHO Round 700Ltr/184gal 1.80m/71” 1.40m/55” 0.70m/28” 30kg/66lbs M-112S CASTELLO Round 700Ltr/184gal 1.80m/71”...
  • Page 9 PRODUCT OVERVIEW Packaging content ® ® ® ® * round or square NOTE: Drawings for illustration purpose only. Actual product may vary. Not to scale.

  • Page 10: First Use/Set-Up Preparation

    QTY. PART NO. Spa cover with aluminum foil inside Check the part No. with MSpa Service (Soho M-029S comes with a ground mat with the cover) Center by providing the model No. Control panel B9300897 Check the part No. with MSpa Service Spa tub Center by providing the model No.
  • Page 11 Additional requirements for indoor installation Verify the supporting floor can support the filled weight of spa with maximum number of occupants. Check with a qualified contractor or structural engineer to verify the requirement. Make sure the floor is water resistant and provides non-slip surface. Do not install the spa on a carpet of any other material that could damaged by the moisture.

  • Page 12: Spa Set-Up

    Lay out all the parts on the ground and make sure all parts are accounted for. Make sure the spa tube is right side up. (*For missing or damaged part, contact the MSpa Service Center) Spread the Heat Preservation Ground Mat over a cleared area. Spread out the spa liner over the ground mat.
  • Page 13 Spa Inflation. 6.1 Unscrew the air valve cap (a) on the control panel to reveal the air blower inflation outlet and connect one end of the inflation hose (b) to the outlet. See Figure 6.1 6.2 Unscrew the air valve cap on the spa pool and reveal the stem for inflation. 6.3 Connect the other end of the inflation hose (b) to the manometer (c) first and then insert to the air valve.
  • Page 14 Spa Deflation. 8.1 Unscrew the air valve cap on the spa pool to deflate the spa. 8.2 Once the deflation is completed, replace the cap back. Spa Bladder Deflation. 9.1 Pull the valve cap out and squeeze the valve at its base until deflated. 9.2 Close and recess the valve back.
  • Page 15 Zipper and Buckle Operation 11.1 Digital Lock Operation Original password is “000”. Following the steps below to change the password: 3XVK WKH EXWWRQ D LQ WKH GLUHFWLRQ RI )LJ   WR XQORFN WKH GLJLWDO ORFN 6HW \RXU SUHIHUUHG SDVVZRUG LQ  GLJLWV E\ WXUQLQJ WKH QXPEHU ZKHHO E  VHH )LJ   ,QVHUW EDFN WKH FDEOH F  7KH QHZ SDVVZRUG LV VHW 11.1.(1) 11.1.(2)

  • Page 16: Control Panel Operation

    CONTROL PANEL OPERATION 1. ON/OFF Button 2. Bubble Button - Adjust the bubble level by pressing the button (L1:300W, L2: 500W, L3:720W) 3. Water Filter Button 4. Heater Button 5. Temperature UP & DOWN Button 6. Celsius/Fahrenheit Toggle Button 7. Ozonator Button ON/OFF Button: To activate the control panel.
  • Page 17 Please change the water or contact or too high MSpa Service Center. Water pressure switch failure Please contact the MSpa Service Center. Filter failure Add more water to reach the minimum line Water level is not reached the minimum water line Please contact the MSpa Service Center.

  • Page 18: Water Maintenance & Chemicals

    WATER MAINTAINCE AND CHEMICALS Water Sanitation The spa owner must regularly check and keep the spa water sanitized with scheduled maintenance (daily, if necessary). Adding sanitizer or other chemical will control bacteria and viruses present in the spa water. The maintenance of a proper water balance through appropriate use of sanitizers is the most important factor in maximizing the life and appearance of the spa as well as ensuring clean, healthy and safe water.
  • Page 19 MSpa Water Treatment Kit MSpa Water Treatment Kit (*Optional) B0301858 MSpa Chemical Starter Kit (20 X 20g Bromine Tablets + 500ml Algaecide + Floating Dispenser) Disinfectant for water spas and pools. disinfectant, algaecide and bactericide. B0301859 Bromine Tablets - 50 X 20g Bottle Slowly dissolve in water to provide active bromine sanitizer in the form of hypobromous acid.

  • Page 20: Drainage, Cleaning And Storage

    DRAINAGE, CLEANING & STROAGE 1. Spa Drainage 1. Turn off all the buttons (heater, filter and bubble) on the control panel unit. 2. Connect the drain valve adapter to a garden hose and point the other end of the garden hose to a suitable draining area with local environmental regulations (Fig.1.1) 3.

  • Page 21: Disposal & Environmental Protection

    Storage and Prepare for the Next Time Use 1. Drain and clean the spa by following the “Drainage” and “Spa Cleaning” sections 2. Reserve the set up instructions to deflate and disassemble the spa tub, spa control unit and air bladder 3.

  • Page 22: Troubleshooting

    ,QVXIILFLHQW ILOWHULQJ WATER NOT CLEAN &OHDQ RU UHSODFH WKH ILOWHU FDUWULGJH LQ WLPH 'LUW\ ILOWHU FDUWULGJH 5HIHU WR WKH FKHPLFDO PDQXIDFWXUH V LQVWUXFWLRQ ,PSURSHU ZDWHU PDLQWHQDQFH CONTACT YOUR LOCAL MSPA DEALER OR SERVICE CENTER FOR ANY PRODUCT RELATED QUESTIONS OR PROBLEMS.

  • Page 23: Mspa Limited Warranty Policy

    The warranty period begins on the date of purchase and MSpa requires presentation of the original proof to purchase to ascertain the date. During the warranty period, MSpa will either repair or replace, at its discretion, any defective products. Replacement products or repaired parts will be warranted for only the unexpired portion of the original warranty.

  • Page 24: Mspa Service Center Locations

    MSpa Service Center Locations Country Address/Tel./Fax/E-mail Country Address/Tel./Fax/E-mail ETS LA MINOUCHE S.A. MSPA Service Après-Vente Centre Phone : +32.68.44.58.70 WWW.MSPA.FR Fax : +32.68.44.58.74 sav@mspa.fr Belgium E-mail : sav@laminouche.com France par POOLSTAR FRANCE Website : http://mspabelgium.com Conseils et Assistance Address : Avenue des Artisans, 35 0892 233 089 (0.34€/min)

  • Page 25: Mspa Warranty Card

    For Spa pool (body) problem – Picture of defect part need to be attached along with the mail-in warranty card and is MANDATORY to claim the warranty For electric part(s) or control box problem – Send the control box to your local MSpa Service Center. See the Service Center Contact List in the manual.
