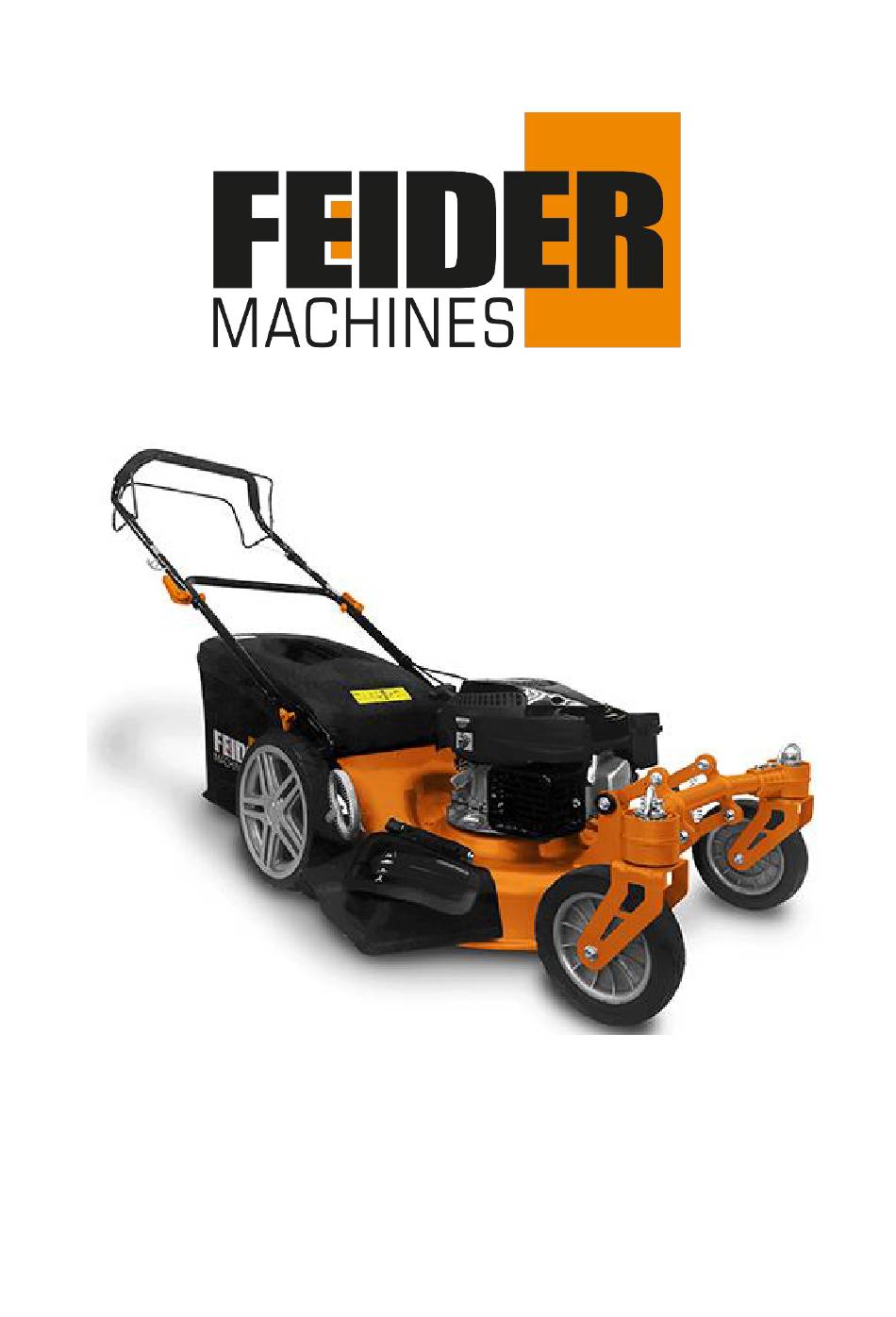

ORIGINAL INSTRUCTIONS >EN
PETROL LAWN MOWER
FTDT5170ZT
INSTRUCTION MANUAL
CAUTION Read the instructions before using this machine!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FTDT5170ZT and is the answer not in the manual?

Questions and answers

Summary of Contents for Feider Machines FTDT5170ZT

  • Page 1 ORIGINAL INSTRUCTIONS >EN PETROL LAWN MOWER FTDT5170ZT INSTRUCTION MANUAL CAUTION Read the instructions before using this machine!
  • Page 2: Table Of Contents

    CONTENTS 1. SAFETY INSTRUCTIONS......................3 DESCRIPTION............................7 3. ASSEMBLY..........................8 4. FILLING FUEL TANK.........................10 5. OPERATION.............................11 6. MAINTENANCE AND STORAGE......................12 7. DECLARATION OF CONFORMITY......................14 8. WARRANTY..............................15 9. PRODUCT FAILURE..........................16 10. WARRANTY EXCLUSIONS........................17...
  • Page 3: Safety Instructions

    1. SAFETY INSTRUCTIONS Instructions  Read the instructions carefully. Be familiar with the controls and proper use of the equipment.  Never allow children to use this mower. If the mower is given to an other people, also give this manual.
  • Page 4  Do not mow on steep slopes.  Use extreme caution when tipping or pulling the mower towards you.  Never use the mower with defective guards, or without safety devices such as baffles and or collection bins, which are not in place. ...
  • Page 5 Special safety instructions  Always use the mower with its pick-up bag and / or deflector in the intended position.  Switch off the engine before emptying the pick-up bag or before changing the cutting height.  While the engine is running, never put your hands or feet under the mower or under the grass ejection area.
  • Page 6 protection, hearing protection, eyes protection and gloves.  To avoid health issues, limit the time of operation. Take enough rest. Exposure to noise and vibrate can have bad consequences on health.  WARNING: There is a danger about moving blade assemblies. Always handle blades when they are in a complete stop and wear protective gloves.
  • Page 7: Description

    Warning! Risk of projections. Keep bystanders away Remove the ignition cable before all maintenance work, and read the instructions for use. Warning - Moving blades. Keep hands and feet away when the machine is operated. Stop the machine before removing any foreign objects from the working area.
  • Page 8: Assembly

    Technical data Model FTDT5170ZT Engine displacement 170.1 cm³ Power 2.5 kW Engine speed 2900/min Cutting width 51 cm Adjustable cutting height 6 positions Grass collection capacities weight 3 4 kg Guaranteed Sound Power Level 98dB Sound pressure level (LpA) 85,5 dB (A); K...
  • Page 9 Instruction for grass bag assembly Before using the grass catcher, the side discharge must be removed. If the grass bag is delivered unassembled: Pull plastic loops over basket rods. Open the flap then Install the grass catcher on the hook on the rear of the tool. Release the flap. Disassemble the grass catcher Lift the flap and remove the grass catcher.
  • Page 10: Filling Fuel Tank

    4. FILLING FUEL TANK a. Filling tank WARNING! Gasoline is extremely flammable. Store fuel in specially designed cans for this purpose. Fill the fuel tank only outdoors and before starting the engine. Do not smoke when filling the fuel tank or handling fuel. Never open the fuel tank cap and never add fuel while the engine is running or when it is hot.
  • Page 11: Operation

    5. OPERATION Start the device on a safe and flat ground, preferably not in tall grass. Make sure that the cutting tools do not touch objects or the ground. a. Start the engine Push 3 times the primer bulb. Pull the drive lever bar the operation control bar (control lever) in the direction of the handle and hold it.
  • Page 12: Maintenance And Storage

    Always work perpendicular to the slopes. If the blades come into contact with a foreign object, immediately turn off the engine. Wait for the blades to stop turning completely and check that the unit has not been damaged. Only resume work if the unit has not been damaged.
  • Page 13 Air Filter Unclip the air filter cover and remove the sponge filter element. To avoid objects falling into the air intake, replace the air filer cover. MAINTENANCE SCHEDULE Before After After After After Once a SERVICE year Mowing ✓ check and tighten nuts, bolts and screws Check the oil / fuel level and refill oil / fuel if ✓...
  • Page 14: Declaration Of Conformity

    32 rue Aristide Bergès - Z.I. du Casque - 31270 Cugnaux - France Tel: +33 (0)5.34.502.502 Fax: +33 (0)5.34.502.503 Declares that the machines: LAWN MOWER PETROL Model: FTDT5170ZT Serial No.: 20221228068-20221228487 Have been designed in compliance with the following standards: EN ISO 5395-1 :2013+A1 :2018...
  • Page 15: Warranty

    8 . WARRANTY WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identifed as defective by the designated distributor.
  • Page 16: Product Failure

    9 . PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank if your product has one. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine.
  • Page 17: Warranty Exclusions

    10. WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •...
  • Page 18 BUILDER SAS 32, rue Aristide Bergès - ZI 31270 Cugnaux – France Made in PRC 2022...
