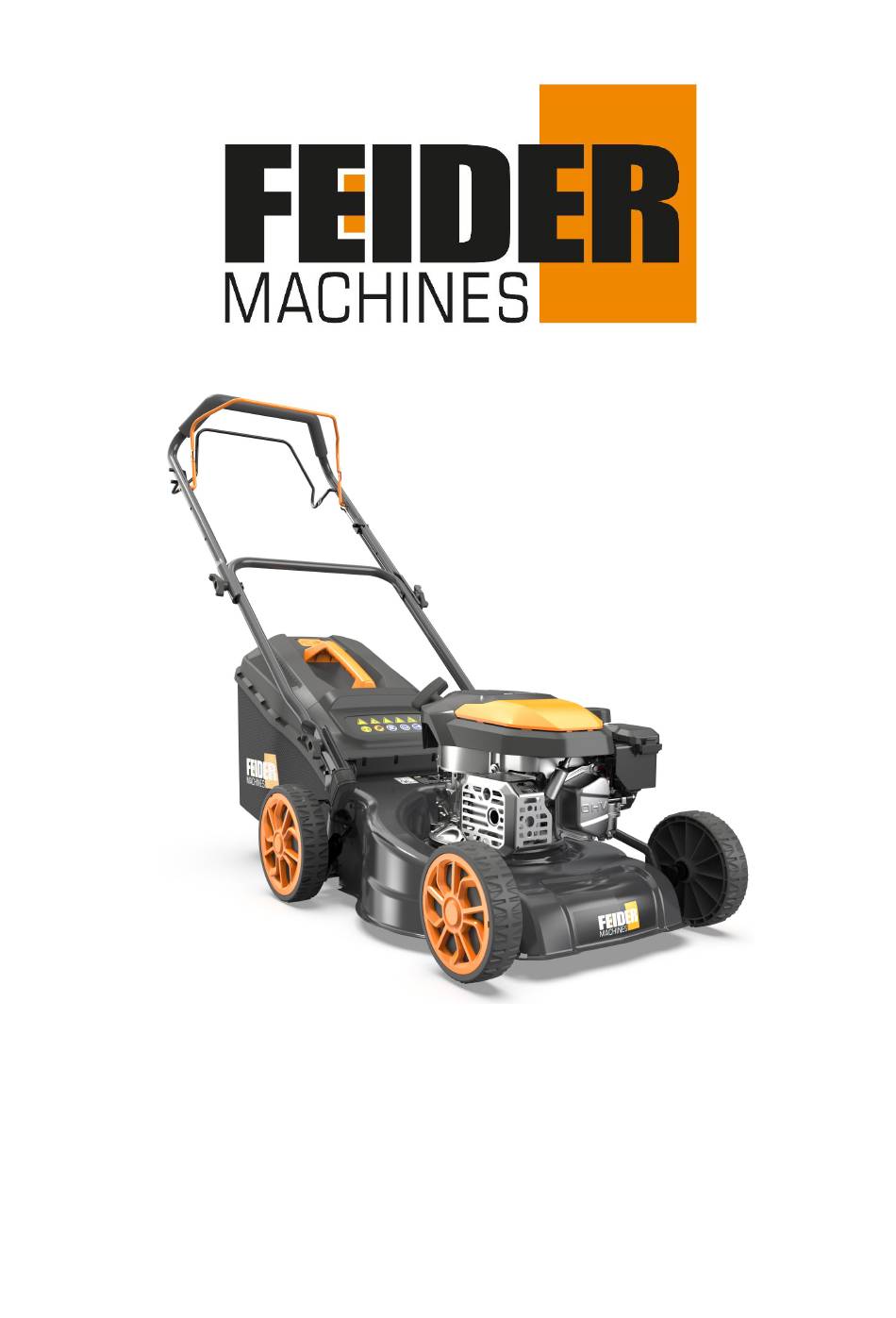

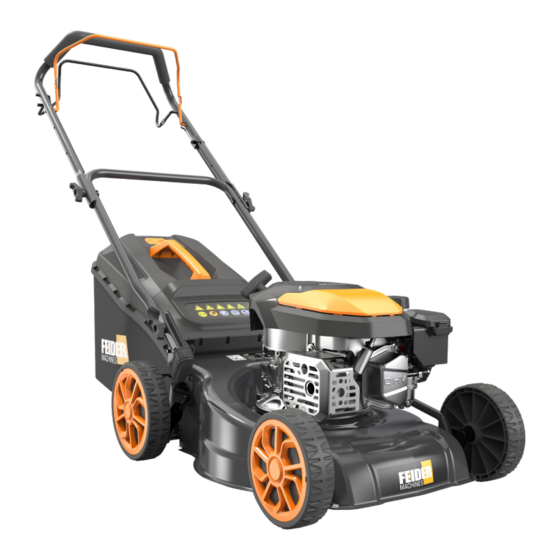

- Page 1 ORIGINAL INSTRUCTIONS >EN PETROL LAWN MOWER FTDT4125 USER GUIDE CAUTION: Read this manual before using this machine!
-
Page 2: Table Of Contents
CONTENTS 1. INTENDED USE............................3 2. SAFETY INSTRUCTIONS........................3 3. YOUR PRODUCT........................... 7 4. ASSEMBLY............................. 9 5. ENGINE FUEL AND OIL........................11 6. OPERATION ............................11 7. MAINTENANCE AND STORAGE..................... 13 8. TROUBLESHOOTING.........................15 9. DECLARATION OF CONFORMITY....................16 10. GARANTIE............................17 11. PANNE PRODUIT..........................18 12. -
Page 3: Intended Use
1. INTENDED USE This equipment is intended for mowing lawns. It is not suitable for commercial use. Any use other than that specifically permitted in this instruction manual may result in damage or injury. This equipment is intended for use by adults. Children or other people who are unfamiliar with the operating instructions must not operate this equipment. - Page 4 Exercise extreme caution when changing direction on slopes. Stop the blades if the mower is to be tilted during transport when crossing surfaces other than grass, and when transporting the mower to the area to be mowed. Do not mow on steep slopes. ...
- Page 5 Replace worn and damaged parts for safety. If the fuel tank is to be drained, it must be made outdoors. Special safety instructions In case of lack of knowledge or first use of this product, we recommend that you have a formation/ training with a professional or an experienced person.
- Page 6 Fuel Handling Use caution when handling fuels. They are flammable and the vapors are explosive. Use only an approved container. Never remove the fuel cap or add fuel while the machine is on. Turn off the unit and allow the engine and exhaust components to cool down before refuelling.
-
Page 7: Your Product
Danger! Keep your hands and feet away from the cutting element. Caution – Risk of burn, Stay clear of hot surface. Stay a safe distance from the machine. Unplug the spark plug before maintenance and repair. Read the instruction manual. Shut off engine and remove spark plug connector before performing maintenance or repair work. - Page 8 3.2 TECHNICAL DATA Model FTDT4125 Engine RV125-S Displacement 127.1cm³ Rated engine power 2.0kW Max engine power 2.3kW Rated engine speed 2800 min Cutting width 410mm Motion type Self-propelled Volume of the collection bag 4 5L Weight 23 kg Fuel tank capacity...
-
Page 9: Assembly
2) Rear discharge without grass collection Remove the mulch kit and close the flap. 4. ASSEMBLY 4.1 ASSEMBLY OF THE HANDLE Assemble the handle on the machine as per below. Fasten the lower handle by using two bolts and two small knobs on each side. ... - Page 10 Fasten the cord to handle with a cable clamp. 4.2 ASSEMBLY OF THE GRASS CATCHER Take out the grass box and corresponding accessories. Assemble as shown in the figure,and use screws to lock and fix. Clip the grass bag over the metal frame. Make sure to be secured ...
-
Page 11: Engine Fuel And Oil
5. ENGINE FUEL AND OIL CAUTION: The engine must be filled with correct type of oil and gasoline before starting. Do not add oil or fuel while the engine is running. Do not use mix oil and petrol. DANGER: Petrol vapors are highly flammable and extremely explosive. Always keep fuel away from sparks, open flames heat and other sources of ignition. - Page 12 NOTE: If the primer is pressed too often, excessive fuel will enter the carburetor which lead to difficulty start. Stand behind the mower. Pull the brake/stop lever toward the handle grip. Hold the lever and grip together with one hand. Pull starter grip(recoil cord)slowly until resistance is felt.
-
Page 13: Maintenance And Storage
7. MAINTENANCE AND STORAGE 7.1 MAINTENANCE OF POWER COMPONENTS WARNING: Before performing any maintenance or cleaning work, stop the engine and wait until the blade has come to a stop. Remove the spark plug connector. Risk of accidents. Allow the equipment to cool before any maintenance and cleaning. Risk of burning. Improper maintenance can lead to machine damage or injury. - Page 14 CHANGE ENGINE OIL: Remove the oil dipstick. Tilt the engine slowly to drain or use an oil pump to drain the oil into a suitable container. Refill with 500ml or less oil, SAE 5W/30, SAE 10W/30 is recommended. ...
-
Page 15: Troubleshooting
7.2.4 Store the machine Clean the machine before storage. Make sure the machine is not hot when you store the machine. Make sure that the machine does not have loose or damaged parts. If it necessary, do these steps/instructions: Replace the damaged parts. Tighten the bolts. -
Page 16: Declaration Of Conformity
32, rue Aristide Bergès -Z1 31270 Cugnaux - France Tel. +33 (0) 5.34.502.502 Fax: +33 (0) 5.34.502.503 Declares that the machine named below PETROL LAWN MOWER FTDT4125 Serial number: 20240114381-20240114680 Complies with the following European Directives: Machinery Directive 2006/42/EC EMC Directive 2014/30/EU... -
Page 17: Garantie
10. WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 5 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identified as defective by the designated distributor. -
Page 18: Panne Produit
11. PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: • Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine. •... -
Page 19: Exclusions De Garantie
12. WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •... - Page 20 BUILDER SAS 32, rue Aristide Bergès - ZI 31270 Cugnaux - France MADE IN PRC...
