Feider Machines FTDTR4870 Original Instructions Manual

Roller lawn mower
Hide thumbs
Table of Contents

Advertisement

Quick Links

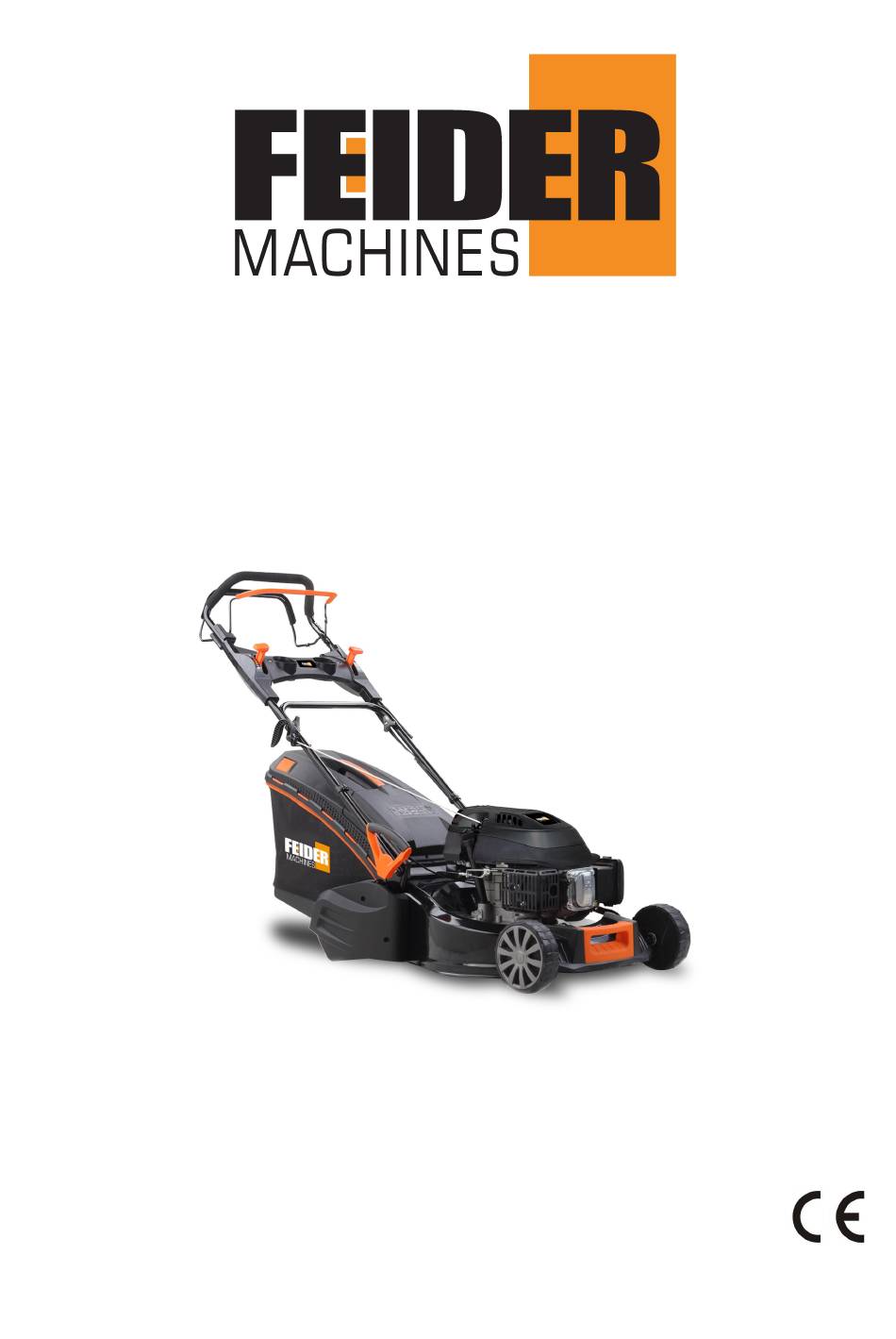

ROLLER LAWN MOWER
FTDTR4870
ORIGINAL INSTRUCTIONS
WARNING: READ THESE INSTRUCTIONS BEFORE USE THIS MACHINE
BUILDER SAS
Zi du Casque, 32 rue Aristide Bergès, 31270 Cugnaux - France
Made in PRC
1

Advertisement

Table of Contents
loading

Related Manuals for Feider Machines FTDTR4870

Summary of Contents for Feider Machines FTDTR4870

  • Page 1 ROLLER LAWN MOWER FTDTR4870 ORIGINAL INSTRUCTIONS WARNING: READ THESE INSTRUCTIONS BEFORE USE THIS MACHINE BUILDER SAS Zi du Casque, 32 rue Aristide Bergès, 31270 Cugnaux - France Made in PRC...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS 1. Safety Messages…………………………………………………………………..3 2. Assembly……………………………………..………………….……………..…9 3. Before Operation……………………………..………………………………….12 4. Operation……………………………………..……………………………………14 5. Maintenance………………..……………..………………………………………17 6. Storage………………………………………….…………………………………23 7. DECLARATION OF CONFORMITY…….………………………………………24 8. WARRANTY …………………………………….…………………………………25 9. PRODUCT FAILURE ………………………….………………………………… 26 10. WARRANTY EXCLUSIONS ……………….…………………………………27...

  • Page 3: Safety Messages

    1. Safety messages Your safety and the safety of others are very important. We have provided important safety messages in this manual and on the mower. This information alerts you to potential hazards that could hurt you or others. Please read these messages carefully. Of course, it is not practical or possible to warn you about all the hazards associated with operating or maintaining a lawn mower.
  • Page 4 Preparation  During mowing, always wear slip-resistant foot protection and long pants. Do not use the equipment barefoot or wearing sandals open.  Wear personal protective equipment including at least: clothes of protection, gloves, foot protection, mask, ocular and hearing protection Carefully inspect the area where equipment and remove all foreign objects such as stones, ...
  • Page 5  Do not tilt the mower when starting the machine or turn on the engine, unless the mower needs to be tilted for starting. In this case, do not tilt it more than absolutely necessary and lift only the part that is furthest away from the user. ...
  • Page 6 height.  While the engine is running, never put your hands or feet under the mower or under the grass ejection area.  Before mowing, remove all foreign objects from the grass that can be propelled by the machine. Keep children and pets at a safe distance while using the mower. ...
  • Page 7 foot protection, hearing protection, eyes protection and gloves.  To avoid health issues, limit the time of operation. Take enough rest. Exposure to noise and vibrate can have bas consequences on health.  WARNING: There is a danger about moving blade assemblies. Always handle blades when they are in a complete stop and wear protective gloves.
  • Page 8 A long exposition to noise can affect the health of the operator. A hearing protection must be always used when operating the tool. The operation of the tool must be limited and some rest must be taken between two sessions (e.g. 10min of operation and 20min of rest). Intended use This device is only for lawn mowing grass in the domestic area.

  • Page 9: Assembly

    Assembly Unpacking Remove lawn mower from carton and check thoroughly for additional loose parts. Handle Setup And Height Adjustment Open out the handle and screw the handles parts with the two Nuts and Bolts by tool, And screw the handles parts with the four knobs and Bolts by hand. Put the recoil starter on the right of the handle and fix the cable with the plastic collar.
  • Page 10 Brake Cable Setup Put the brake cable and Clutch cable to the hole of brake lever and Clutch lever. (see the arrow mark) Brake Cable Clutch Cable...
  • Page 11 Panel Setup Take out panel and two screws in a bag from carton, and fix the panel with screws. SCREW CONTROL PANEL Grass Bag Assembly Slide the grass bag frame into the grass bag and attach the clips as shown. ...

  • Page 12: Before Operation

    Rear Discharge Guard Props Take out two supports in a bag from carton, and lift the rear discharge guard, install the two supports which can hold the rear discharge guard, and this can make the grass out more efficiently from the deck. SUPPORT 3.
  • Page 13 FUEL NOTICE: Engine delivered without gasoline, refuel 1.0 liter of before starting the engine.  Remove the filler cap  Add fuel to the bottom of the fuel level limit in the neck of the fuel tank. Do not overfill. Wipe up spilled fuel before starting the engine.

  • Page 14: Operation

    4. Operation Starting The Engine Move the choke lever to the “CHOKE” position.  CHOKE Pull back on the brake lever and hold it against  the handle. BRAKE LEVER Release the clutch lever. This will prevent the mower from moving forward when you ...
  • Page 15 With the starter handle in its support, take the starter handle with your right hand and  pull slowly as far as to have a resistance, then pull energetically on the starter handle with starter rope through the support. (If the cold start is not sufficient enough, repeat this operation 2 or 3 times) Immediately after the start, push back the choke lever from “CHOKE”...
  • Page 16 Clutch Lever  Push the clutch lever forward and hold it against the handlebar to propel the mower forward. Release the clutch lever to stop the mower’s forward movement. Always release the clutch lever before starting the engine. If the clutch is engaged, the mower will move forward.

  • Page 17: Maintenance

    Stop Engine CLUTCH LEVER Release the clutch lever.  BLAKE LEVER Release the brake lever.  The blade will continue to rotate for a few seconds after the engine has stopped. Disconnect the spark plug cap if the lawnmower is to be left unattended. 5.
  • Page 18 -Wear strong working gloves; -Grasp the machine at the points that offer a safe grip, taking account of the weight and its distribution. Blade Inspection Tilt the mower to the right, so the air cleaner side is up. This will help to prevent fuel ...
  • Page 19 Grass Bag Cleaning And Replacement Cleaning Wash the bag with a garden hose, and allow it to dry completely before use; a wet bag will clog quickly. Replacement Unclip the plastic edges of the bag from the frame,  remove the frame from the bag. Insert the frame into the bag, clip the plastic edges of ...
  • Page 20 Air Cleaner Service NOTICE: Operating the engine without an air cleaner, or with a damaged air cleaner, will allow dirt to enter the engine, causing rapid engine wear. Press down on the cover  tabs and remove the cover. Remove the filter from the ...
  • Page 21 Inspect the spark plug. Replace it if the electrodes are worn, or if the insulator is  cracked or chipped. Measure the spark plug electrode gap with a suitable gauge. The gap should be  0.028 ~ 0.031 in (0.7 ~ 0.8mm). Correct the gap, if necessary, by carefully bending the side electrode with a suitable tool.
  • Page 22 Maintenance Schedule REGULAR SERVICE Before First Every 3 Every 6 Every Every PERIOD(4) Each Month Months Months Year Years 5 Hrs 25 Hrs 50 Hrs or 250 ITEM Perform at every indicated month or operating hour interval, whichever comes first. Engine oil Check Replace...

  • Page 23: Storage

    Trouble Shooting ENGINE WILL NOT START Possible Cause Correction 1. Check fuel. Out of fuel. Refuel fuel; engine stored Drain the fuel tank and without treating or draining carburetor. Refuel with gasoline, of refueled with bad fresh gasoline. gasoline 2. Remove and inspect spark Spark plug faulty, fouled, or Replace the spark plug.

  • Page 24: Declaration Of Conformity

    32, rue Arstide Bergès – Z1 31270 Cugnaux-France Tel.: +33(0)5.34.502.502 Fax: +33 (0)5.34.502.503 Declares that the machine named below: GASOLINE ROLLER LAWNMOWER FTDTR4870 Serial number: 20210329142-20210329266 Complies with the following European Directives: Machinery Directive 2006/42/EC EMC Directive 2014/30/EU Emission directive (EU) 2016/1628 & 2017/656/EU...

  • Page 25: Warranty

    8. WARRANTY WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identified as defective by the designated distributor.

  • Page 26: Product Failure

    9. PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine.

  • Page 27: Warranty Exclusions

    10. WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •...
