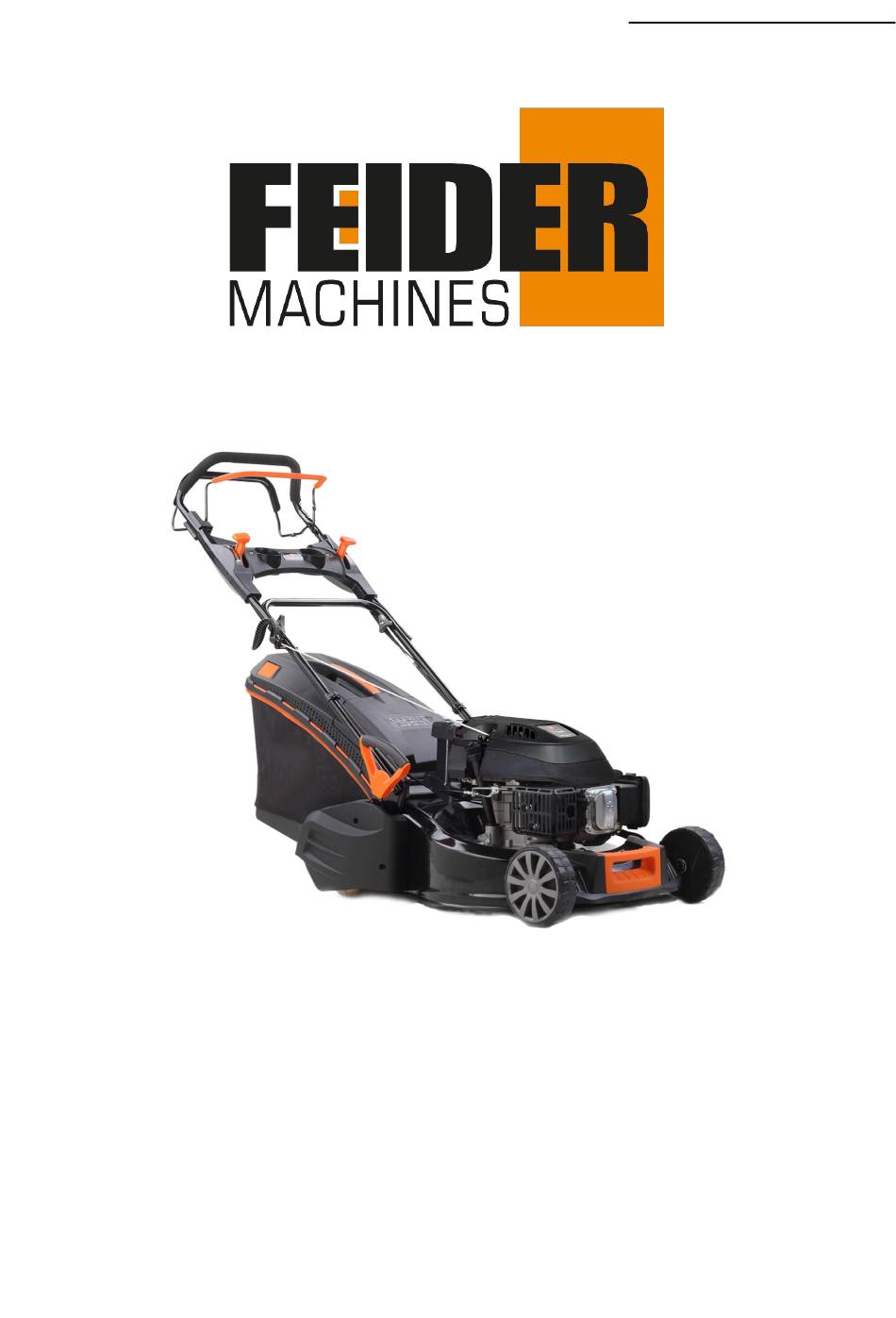

- Page 1 ORIGINAL INSTRUCTIONS >EN PETROL ROLLER MOWER FTDTR4870ES USER GUIDE CAUTION: READ THE INSTRUCTIONS BEFORE USING THE MACHINE!
-
Page 2: Table Of Contents
CONTENTS 1. SAFETY INSTRUCTIONS……………………………………………3 2. THE PRODUCT................8 3. ASSEMBLY……………………………………..….…………..……9 4. FILLING TANK................11 5. OPERATION………………………….....…..………………..13 6. MAINTENANCE………………..……………..…………….….……17 7. TROUBLE SHOOTING..............22 8. STORAGE………………………………………….………….…..23 9. DECLARATION OF CONFORMITY………………………...…..24 10. WARRANTY................25 11. PRODUCT FAILURE...............26 12. WARRANTY EXCLUSIONS............27... -
Page 3: Safety Instructions
1. SAFETY INSTRUCTIONS 1.1 INSTRUCTIONS Read the instructions carefully. Be familiar with the controls and proper use of the equipment. Never allow children to use this mower. If the mower is given to an other people, also give this manual. Also make sure that this person uses this device only after receiving the necessary instructions. - Page 4 Do not change the motor configuration or increase the speed. For starting, disengage all blades, the gears must be in neutral, the traction control lever must be released. Set foot well away from the blades. Before starting the engine or starting the engine, carefully read and understand all instructions. ...
- Page 5 in such circumstances. Never change the rated speed of the motor. Never lift or carry the tool while the engine is running. Before starting the engine, release the drawbar. Before mowing, install the collection bag in its intended position. ...
- Page 6 If fuel has spilled, do not attempt to start the machine, but move it away from the spill before starting to use it. Please clean up any spills. Replace and tighten the fuel tank cap after refuelling. Follow strictly the instructions in this manual for filling the tool with fuel. 1.7 DURING MAINTENANCE AND STORAGE Switch off the tool and wait until it stops completely.
- Page 7 1.10 SYMBOLS Read the instructions Watch out for projections! Keep viewers away from work area Danger! Keep your hands and feet away from the cutting element Warning – Exhaust gas. Do not be exposed to exhausted gas and do not use the tool in a confined place Fuel is flammable, keep it away from fire.
-
Page 8: The Product
7 - Air filter 16 - Transport lever 8 - Spark plug 17 - Electric start button 9 - Exhaust 2.2 TECHNICAL DATA Model FTDTR4870ES Nominal power 3,6 kW Cutting width 480 mm Maximum operating engine speed 2800/min Sound power level A = 95.6dB(A) K=0.32 dB(A) -
Page 9: Assembly
3. ASSEMBLY 3.1 HANDLE SETUP AND HEIGHT ADJUSTMENT Open out the handle and screw the handles parts with the two Nuts and Bolts by tool, and screw the handles parts with the four knobs and Bolts by hand. Put the recoil starter on the right of the handle and fix the cable with the plastic collar. Introduce the rope of the recoil starter handle on its support guide rope. - Page 10 3.2 BRAKE CABLE SETUP Put the brake cable and Clutch cable to the hole of brake lever and Clutch lever. (see the arrow mark) 3.3 PANEL SETUP Take out panel and two screws in a bag from carton, and fix the panel with screws. 3.4 GRASS CATCHER ASSEMBLY Slide the grass bag frame into the grass bag and attach the clips as shown.
-
Page 11: Filling Tank
Lift the rear discharge guard, remove the mulching plug, and install the grass bag. 3.5 REAR DISCHARGE GUARD PROPS Take out two supports in a bag from carton, and lift the rear discharge guard, install the two supports which can hold the rear discharge guard, and this can make the grass out more efficiently from the deck. - Page 12 4.1 ENGINE OIL The mower is shipped without oil in the engine. All engines are run at the factory prior to packaging. Most of the oil is removed prior to shipment; however, some oil remains in the engine. The amount of oil left in the engine varies. Add enough oil to bring the oil level between the upper and lower limit marks on the dipstick as shown.
-
Page 13: Operation
Refuel in a well-ventilated area with the engine stopped. Do not smoke or allow flames or sparks in the area where the engine is refueled or where gasoline is stored. Avoid repeated or prolonged contact with skin or breathing of vapor. After refueling, tighten the fuel tank cap securely. - Page 14 Release the clutch lever. This will prevent the mower from moving forward when you operate the starter. With the starter handle in its support, take the starter handle with your right hand and pull slowly as far as to have a resistance, then pull energetically on the starter handle with starter rope through the support.
- Page 15 Immediately after the start, push back the choke lever from “CHOKE” position to “RUN” position.(If the temperature is low, allow the engine to run for a few minutes before starting to work.) 5.3 OPERATION THE CONTROLS FOR MOWING Blade is in action as soon as engine started. While the machine is working maintain the security handle in working position.
- Page 16 5.4 STOP ENGINE Release the clutch lever. Release the brake lever. The blade will continue to rotate for a few seconds after the engine has stopped. Disconnect the spark plug cap if the lawnmower is to be left unattended.
-
Page 17: Maintenance
5.5 CUTTING HEIGHT ADJUSTMENT Check the cutting height settings, and make any necessary adjustments. Then pull the handle and move it forward or backward to change the height of cut. There are 5 adjustment heights(20-70mm). The blade can cause serious injury. Stop the engine before adjusting cutting height. - Page 18 For reasons of safety, do not use the equipment with worn or damaged parts. Parts are to be replaced and not repaired. Use genuine spare parts (blades should always bear the symbol). Parts that are not of the same quality can damage the equipment and be dangerous for your safety. If the fuel tank has to be drained, this should be done outdoors and when the engine is cool.
- Page 19 6.2 GRASS BAG CLEANING AND REPLACEMENT Cleaning Wash the bag with a garden hose, and allow it to dry completely before use; a wet bag will clog quickly. Replacement Unclip the plastic edges of the bag from the frame, remove the frame from the bag. ...
- Page 20 Inspect the filter and foam element, and replace it if damaged. Clean the filter by tapping it several times on a hard surface to remove dirt, or blow compressed air through the air filter from the inside. Never try to brush off dirt; brushing will force dirt into the fibers. Wipe dirt from the inside of the air cleaner base and cover, using a moist rag.
- Page 21 Inspect the spark plug. Replace it if the electrodes are worn, or if the insulator is cracked or chipped. Measure the spark plug electrode gap with a suitable gauge. The gap should be 0.028 ~ 0.031 in (0.7 ~ ...
-
Page 22: Trouble Shooting
6.7 MAINTENANCE SCHEDULE REGULAR SERVICE PERIOD(4) Every First Every 3 Every 6 Every Before Month Months Months Year Each Years ITEM Perform at every indicated month or 5 Hrs 25 Hrs 50 Hrs 100 Hrs operating hour interval, whichever comes first. Check Engine oil Replace... -
Page 23: Storage
ENGINE LACKS POWER Possible Cause Correction 1.check air cleaner Air cleaner elements clogged. Clean or replace air cleaner elements 2. Check fuel Bad fuel; engine stored without treating Drain the fuel tank and carburetor. or draining gasoline, of refueled with Refuel with fresh gasoline. -
Page 24: Declaration Of Conformity
Tel.: +33(0)5.34.502.502 Fax: +33 (0)5.34.502.503 Declares that the machine named below: PETROL ROLLER MOWER FTDTR4870ES Serial number: 20220210093-20220210352 Hereby declare under our sales responsibility that the products: To which this declaration relates is in conformity which the following directives and standards:... -
Page 25: Warranty
10. WARRANTY WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identifed as defective by the designated distributor. -
Page 26: Product Failure
11. PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank if your product has one. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine. -
Page 27: Warranty Exclusions
12. WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •... - Page 28 BUILDER SAS 32, rue Aristide Bergès - ZI 31270 Cugnaux - France MADE IN PRC...
