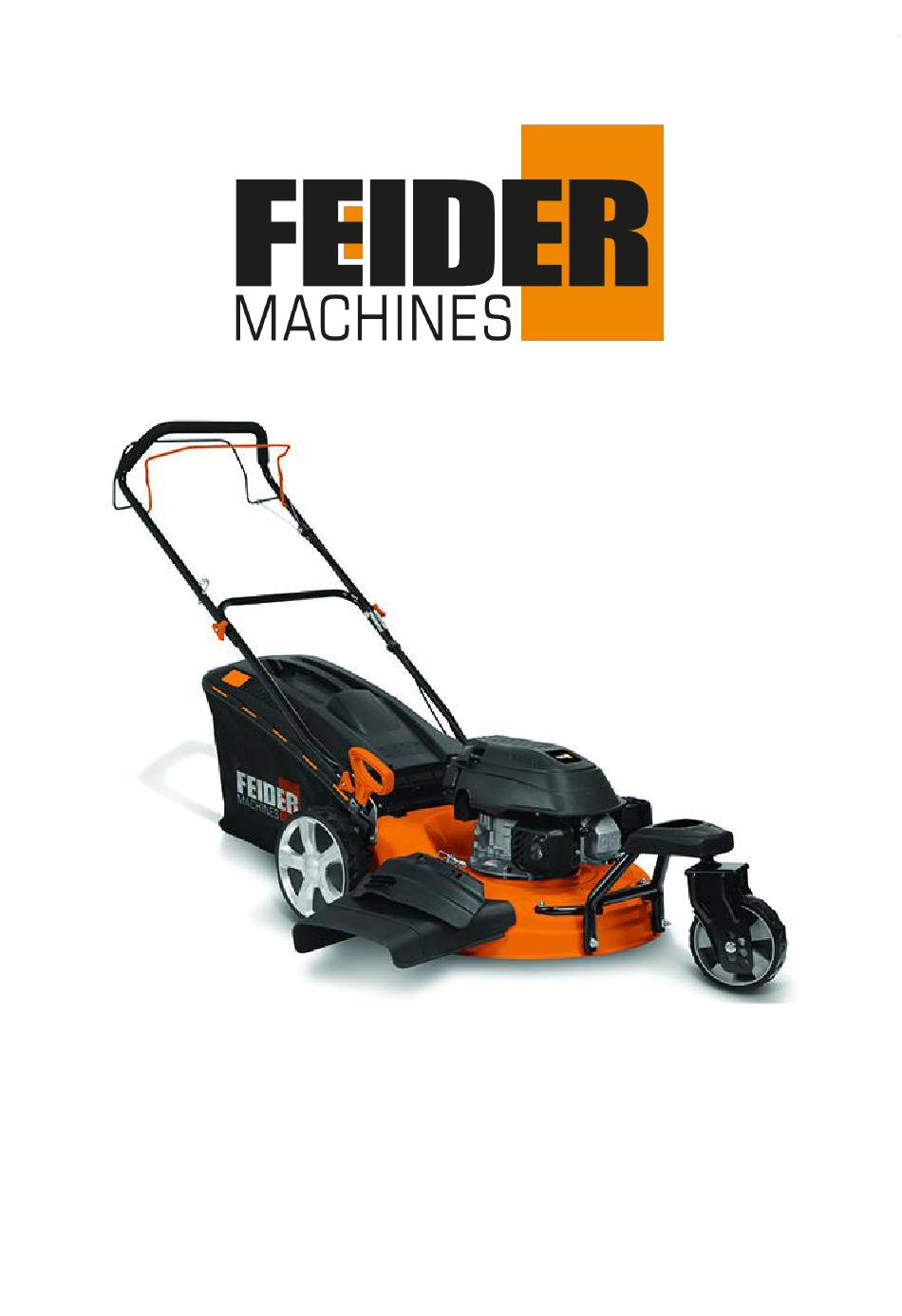

- Page 1 ORIGINAL INSTRUCTIONS=>EN PETROL LAWN MOWER FTDT511ZT-A USER GUIDE CAUTION: Read the instructions before using the machine!
-
Page 2: Table Of Contents
CONTENTS 1. SAFETY INSTRUCTIONS...............3 2. YOUR PRODUCT..................7 3. ASSEMBLY.....................11 4. FILLING FUEL TANK................13 5. OPERATION...................14 6. MAINTENANCE AND STORAGE............15 7. DECLARATION OF CONFORMITY............18 8. WARRANTY...................19 9. PRODUCT FAILURE................20 10. WARRANTY EXCLUSIONS..............21... -
Page 3: Safety Instructions
1. SAFETY INSTRUCTIONS Instructions Read the instructions carefully. Be familiar with the controls and proper use of the equipment. Never allow children to use this mower. If the mower is given to an other people, also give this manual. Also make sure that this person uses this device only after receiving the necessary instructions. - Page 4 Do not place hands or feet near or under rotating parts. Keep clean the mouth of the grass extractor. Never take or carry the mower while the machine is running. Stop the machine and remove the ignition key, disconnect the spark plug from the spark plug: o Before cleaning or unclogging the grass extractor.
- Page 5 After striking a foreign object, turn off the engine and carefully inspect the mower for damage. Take the lawnmower to an authorized service center for repair if necessary. If the mower vibrates abnormally, try to understand the reason and bring your lawnmower to an authorized repair center.
- Page 6 Symbols Read the instructions Watch out for projections! Keep viewers away from work area Danger! Keep your hands and feet away from the cutting element Toxic fumes; don’t operate inside house. Fuel is flammable, keep fire away. Do not add fuel with running machine. Caution –...
-
Page 7: Your Product
2. YOUR PRODUCT 2.1 PRODUCT DESCRIPION 1) Engine control lever 2) Self-propelled lever 3) Superior handle 4) Inferior handle 5) Engine 6) Steel Deck 7) Grass catcher 8) Front single wheel 2.2 FUNCTION (4 IN 1) DESCRIPTION Fig. A Fig. B... - Page 8 1) Rear discharge with grass collection: Remove the mulch kit and place the grass catcher in its place. 2) Side discharge Install the mulch kit. Install the side discharge device as explained below. NOTE: Do not install the grass catcher. Installation of the side discharge：...
- Page 9 3) Mulching: Remove the grass catcher, then install the mulch kit. Close the flap. 4) Rear discharge without grass collection Remove the mulch kit and close the flap.
- Page 10 2.3 TECHNICAL DATA Model FTDT511ZT-A Nominal power 3.2 kW Displacement 173m³ Max engine speed 2800/min Drive type Self-propelled Cutting width Volume of the collection bag Weight 31.4 Fuel tank capacity 1000 ml Oil tank capacity 500 ml 30-80mm Cutting Height:...
-
Page 11: Assembly
3. ASSEMBLY 3.1 ASSEMBLY OF FRONT SINGLE WHEEL Unscrew the 4 screws and bolts on the mower frame. Place the wheel on the frame, then secure it with the 4 screws and bolts. 3.2 ASSEMBLY OF GRASS BAG 1) Take the grass catcher as Fig C 2) Pull up the deflector and place the grass catcher at its place. - Page 12 3.3 ASSEMBLY OF THE HANDLE Open the lower handle. Screw the handle with the two screws and plastic nuts provided to secure it to the mower. Install the upper handle on the lower handle. Secure it with the two screws and nuts provided. You can secure the cables to the handle with the tabs provided.
-
Page 13: Filling Fuel Tank
4. FILLING FUEL TANK WARNING! Gasoline is extremely flammable. Store fuel in specially designed cans for this purpose. Fill the fuel tank only outdoors and before starting the engine. Do not smoke when filling the fuel tank or handling fuel. Never open the fuel tank cap and never add fuel while the engine is running or when it is hot. -
Page 14: Operation
5. OPERATION 5.1 SAFETY PRECAUTIONS a) Always use the lawnmower with the grass catcher or/ and the deflector in position. b) Stop the engine before emptying the grass catcher or before you change the cutting height. c) While the engine is running, never introduce your hands or feet under the lawnmower or under the grass ejection area. -
Page 15: Maintenance And Storage
B. COLD-STARTING THE ENGINE a) Pull the braking lever until it touches the upper handle. b) Pull the starter rope until the engine starts. C. STOP THE ENGINE Release the braking lever. 5.3 FOR THE SELF-PROPELLED MOWER To engage the self-propel system, push the self-propel lever on the handle (2) while maintaining engaged with the engine control lever. - Page 16 storing by leaving it running for a few minutes on a flat, clear surface to prevent corrosion or seizure. b. Blade maintenance WARNING: Wear gloves, turn off the engine and remove the spark plug before proceeding. The blade is made of hardened steel. To get a clean job, sharpen the blade frequently, about every 25 hours of use.
- Page 17 To avoid scratching the mower, insert corrugated cardboard or similar padding between the upper and lower handlebars and the engine. Due to the mower’s weight, use ramps or seek assistance when lifting or loading the mower. d. Mower maintenance Cutting system Before and after each mowing session, check that the blade, its attachment bolts and drive shaft are not damaged or excessively worn.
-
Page 18: Declaration Of Conformity
BUILDER SAS 32, rue Aristide Bergès -Z1 31270 Cugnaux - France Tel. +33 (0) 5.34.502.502 Fax: +33 (0) 5.34.502.503 Declares that the machine named below Petrol lawn mower FTDT511ZT-A Serial number: 20220134519-20220134568 Complies with the following European Directives: Machinery Directive 2006/42/EC... -
Page 19: Warranty
8. WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identified as defective by the designated distributor. -
Page 20: Product Failure
9. PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: • Empty the fuel tank. • Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine. -
Page 21: Warranty Exclusions
10. WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •... - Page 22 BUILDER SAS 32, rue Aristide Bergès - ZI 31270 Cugnaux – France Made in PRC...
