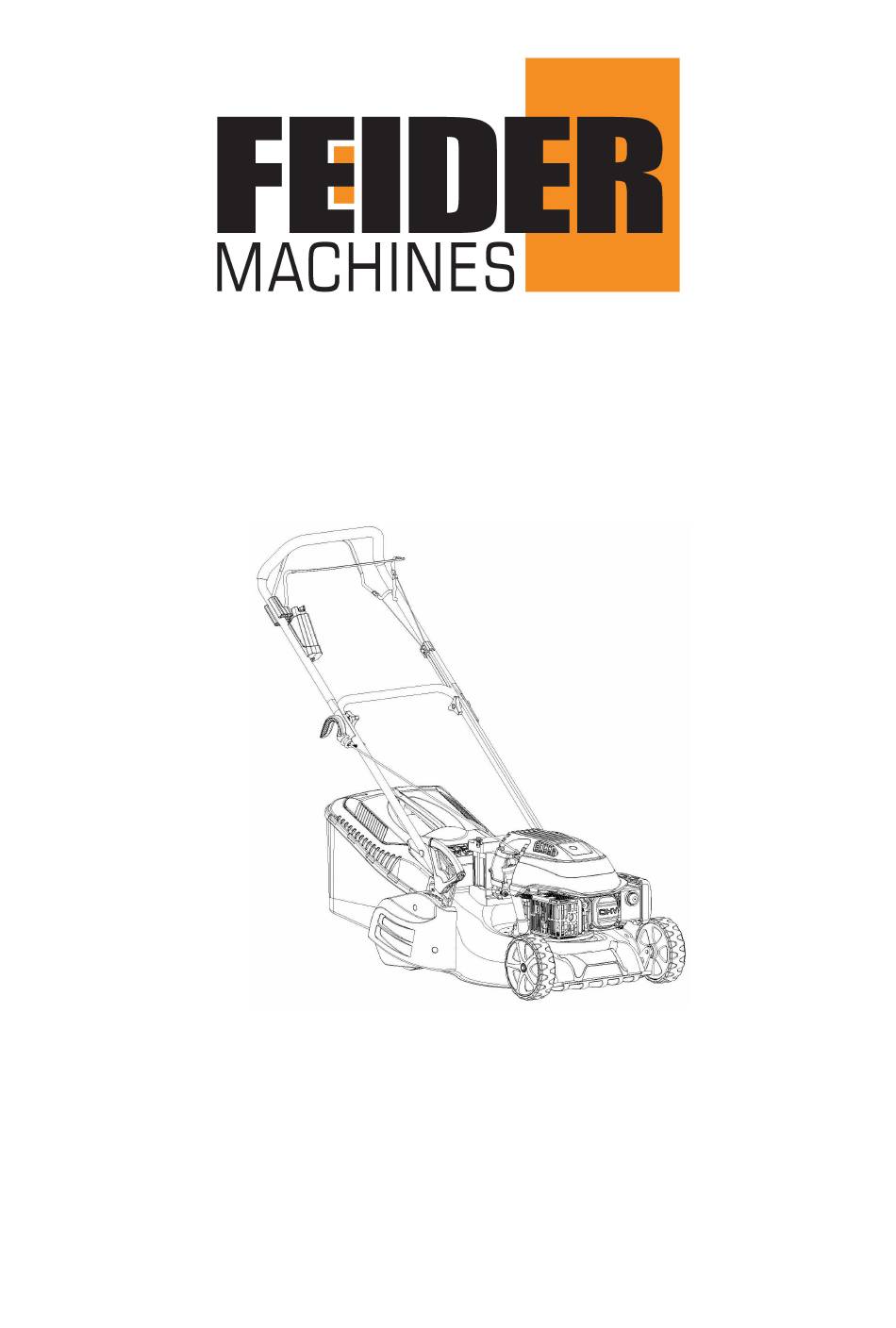

- Page 1 ORIGINAL INSTRUCTIONS LAWN MOWER OWNER’S MANUAL FTDTR4240 /FTDTR4240ES CAUTION: Read and follow all Safety Rules and Instructions before operating this equipment BUILDER SAS 32, rue Aristide Bergès - ZI 31270 Cugnaux - France MADE IN PRC...
-
Page 2: Safety Instructions
ORIGINAL INSTRUCTIONS 1. SAFETY INSTRUCTIONS Instructions Read the instructions carefully. Be familiar with the controls and proper use of the equipment. Never allow children to use this mower. If the mower is given to an other people, also give ... - Page 3 ORIGINAL INSTRUCTIONS Walk, never run. For lawn mowers, mow across slopes, never from top to bottom. Exercise extreme caution when changing direction on slopes. Stop the blades if the mower is to be tilted during transport when crossing surfaces other than grass, and when transporting the mower due to the area to be mowed.
- Page 4 ORIGINAL INSTRUCTIONS Maintenance and storage Check and tighten all bolts and screws to ensure that the equipment is in safe operating condition. Never keep the mower with gasoline in the tank in a building or vapours can cause a bright flame or spark.
- Page 5 ORIGINAL INSTRUCTIONS Use the tool on daylight or under a good lighting. Always keep bystanders away. Warning: Take an extreme precaution when operating the lawnmower in slopes and near drop-offs, ditches or embankments; always be sure of your footing and stay in alert. ...
- Page 6 ORIGINAL INSTRUCTIONS Residual risks Even if you use this product in compliance with all safety requirements, the potential risks of injury and damage remain. The following hazards may arise in the structure and design of this product: There are risks of injury and property damage due to attachments or broken the sudden impact of hidden objects when using cutting.
- Page 7 ORIGINAL INSTRUCTIONS Fuel is flammable, keep it away from fire. Do not add fuel while the machine is running During repair work, remove the spark plug and repair according to the operating manual Wear protective equipment. Wear eye and hearing protection when using the tool Warning –...
- Page 8 ORIGINAL INSTRUCTIONS 2. DESCRIPTION a. Product...
- Page 9 12 - Oil Filler Cap 13 - Grass Collector 14 - Recoil Starter Handle 15 - Electric start button (only for model FTDTR4240ES) 16.-Battery (only for model FTDTR4240ES) b. Technical data FTDTR4240 FTDTR4240ES nominal power 2,6 kW 2,6 kW Cutting width...
- Page 10 ORIGINAL INSTRUCTIONS 3. ASSEMBLY Handle Setup and Height Adjustment Screw the lower bar to the tool with the two nuts and Bolts and with 2 knobs and bolts (in the adjustment height location) Screw the upper bar on the lower bar with the four knobs and bolts. Put the recoil starter on the right of the handle and fix the cable with the plastic collar.
- Page 11 ORIGINAL INSTRUCTIONS Brake Cable Setup Put the brake cable and Clutch cable to the hole of brake lever and Clutch lever. (see the arrow mark) Brake Cable Clutch Cable...
- Page 12 ORIGINAL INSTRUCTIONS Grass catcher Lift the rear discharge guard and install the grass bag. To remove the grass bag, lift the rear discharge guard and remove the grass bag.
- Page 13 ORIGINAL INSTRUCTIONS 4. FILLING FUEL AND OIL TANK A) Filling tank WARNING! Gasoline is extremely flammable. Store fuel in specially designed cans for this purpose. Fill the fuel tank only outdoors and before starting the engine. Do not smoke when filling the fuel tank or handling fuel.
-
Page 14: Engine Oil
ORIGINAL INSTRUCTIONS a. Engine oil Recommended oil: We recommend the use of high quality detergent oil classified for SF, SG, SH, SJ or higher. Do not use special additives. Filling oil tank Open the oil tank. Fill directly the oil in the tank. Do not overfill Close the oil tank. -
Page 15: Cutting Height Adjustment
ORIGINAL INSTRUCTIONS Charge The Battery (only for the model FTDTR4240ES) Charge the battery before use the electric start function is used, the battery must be charged for 5 hours. Put the charger plug into the hole in the battery and connect the charger to a power supply. -
Page 16: Operation
The blade can cause serious injury. Stop the engine before adjusting cutting height. 5. OPERATION FOR MODEL FTDTR4240 a) Starting the engine Place the mower in a clear, level area. Push the primer bulb several times (at least 8 times). - Page 17 ORIGINAL INSTRUCTIONS OPERATOR CONTROL LEVER Electrically E-starting button Pull back on the operator control lever and hold it against the handle (the clutch lever must not be activated). Push the E-starting button to start the machine.
-
Page 18: Clutch Lever
ORIGINAL INSTRUCTIONS b) Operation (for all models) Blade is in action as soon as engine started. While the machine is working maintain the security handle in working position. The engine will stop as soon as you release the engine control bar. Release the lever to stop the engine whenever you need to leave the mower. -
Page 19: Maintenance
ORIGINAL INSTRUCTIONS 6. Maintenance IMPORTANT Regular, careful maintenance is essential for keeping the safety level and original performance of the machine unchanged in time. Keep all nuts, bolts and screws tight to be sure the equipment is in safe working condition. ... - Page 20 ORIGINAL INSTRUCTIONS Tighten the blade bolt with a torque wrench. Use a wooden block to prevent the blade from turning when tightening the bolt. BLADE ADAPTOR BLADE BOLT WASHER Grass Bag Cleaning and Replacement Cleaning Wash the bag with a garden hose, and allow it to dry completely before use; a wet bag will clog quickly.
-
Page 21: Engine Maintenance
ORIGINAL INSTRUCTIONS Engine Maintenance Check Engine Oil Level Check the engine oil level with the engine stopped and the mower. Remove the oil filler cap, and wipe the dipstick clean. Insert the dipstick into the oil filler neck, but do not screw it in. ... - Page 22 ORIGINAL INSTRUCTIONS the air filter from the inside. Never try to brush off dirt; brushing will force dirt into the fibers. Wipe dirt from the inside of the air cleaner base and cover, using a moist rag. Be careful to ...
- Page 23 ORIGINAL INSTRUCTIONS The Clutch Lever Cable and Brake lever Cable Adjustment If the clutch lever were loose, you should turn the clutch cable adjustment to tighten. (please see the picture) CLUTCH CABLE ADJUSTMENT If the brake lever were loose, you should turn ...
-
Page 24: Troubleshooting
ORIGINAL INSTRUCTIONS Maintenance Schedule REGULAR SERVICE Before First Every 3 Every 6 Every Every PERIOD(4) Each Month Months Months Year Years 5 Hrs 25 Hrs 50 Hrs 100 Hrs ITEM Perform at every indicated month operating hour interval, whichever comes first. -
Page 25: Engine Lacks Power
ORIGINAL INSTRUCTIONS ENGINE LACKS POWER Possible Cause Correction 1.check air cleaner Air cleaner elements clogged. Clean or replace air cleaner elements 2. Check fuel fuel; engine stored Drain fuel tank without treating or draining carburetor. Refuel with fresh gasoline, of refueled with bad gasoline. -
Page 26: Declaration Of Conformity
32, rue Aristide Bergès - ZI 31270 Cugnaux - France Declares that the machinery designated below: Hereby declare under our sales responsibility that the product Product: LAWNMOWER MODEL: FTDTR4240 /FTDTR4240ES S/N: 20210454673-20210454817（FTDTR4240） 20210454818-20210454962（FTDTR4240ES） To which this declaration relates is in conformity which the following directives and...
