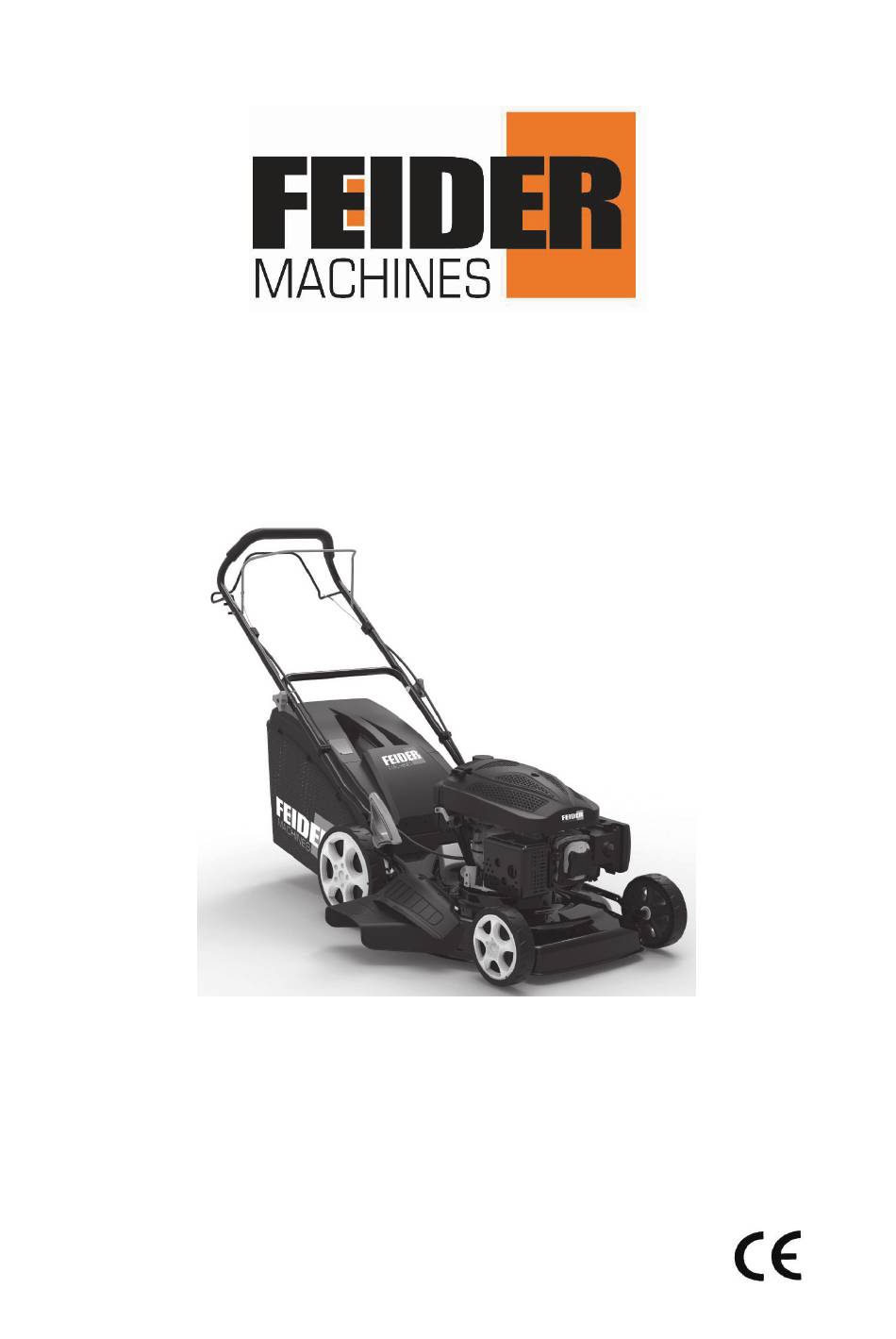

- Page 1 ORIGINAL INSTRUCTIONS PETROL LAWN MOWER FTDT5070 Instruction manual WARNING: READ THE INSTRUCTIONS BEFORE USE THE TOOL BUILDER SAS 32, rue Aristide Bergès - ZI 31270 Cugnaux - France...
-
Page 2: Table Of Contents
CONTENTS 1. SAFETY INSTRUCTIONS 2. YOUR PRODUCT 3. ASSEMBLY 4. FILLING FUEL TANK 5. USE 6. MAINTENANCE AND STORAGE 7. EC DECLARATION 8. WARRANTY 9. PRODUCT FAILURE 10. WARRANTY EXCLUSIONS... -
Page 3: Safety Instructions
1. SAFETY INSTRUCTIONS Instructions Read the instructions carefully. Be familiar with the controls and proper use of the equipment. Never allow children to use this mower. If the mower is given to an other people, also give this manual. Also make sure that this person uses this device only after receiving the necessary instructions. - Page 4 instructions. Do not tilt the mower when starting the machine or turn on the engine, unless the mower needs to be tilted for starting. In this case, do not tilt it more than absolutely necessary and lift only the part that is furthest away from the user. ...
- Page 5 Do not use the mower in the event of rain or when the grass is wet. Never lift the rear of the mower when starting the engine and never place your hands or feet under the mower deck or in the rear ejection port while the engine is running. ...
- Page 6 injuries. Residual risks Even if you use this product in compliance with all safety requirements, the potential risks of injury and damage remain. The following hazards may arise in the structure and design of this product: There are risks of injury and property damage due to attachments or broken the sudden impact of hidden objects when using cutting.
- Page 7 Hot surface! The accessible surface can be hot during use Wear protective equipment. Wear eye and hearing protection when using the tool Remove the spark plug before servicing and maintenance. Read the instruction manual The fuel is flammable; keep it away from the fire. Do not add fuel while the machine is running Do not use the tool when it is raining and in humid conditions.
-
Page 8: Your Product
12. Flap of the lateral discharge 5. Engine 13. Lateral discharge 6. Air filter 14. Primer bulb 7. Cutting height lever 8. Flap b. Technical data Model FTDT5070 Nominal power 3.0kW Displacement 173cm³ Max engine speed 2800/min Cutting width 502mm... -
Page 9: Assembly
3. ASSEMBLY a. Handles/bar Install the lower handle (2) on the machine and screw it with the provided screws and nuts. Combine the upper handle (1) and the lower handle (2) fix them with the two nut knobs and their screws. b. -
Page 10: Filling Fuel Tank
Push the tab and open the flap of the side discharge. Hold it and Install the lateral discharge by putting it on the hooks on the bar. Then release the flap. You must fit the mulching adapter in order to use the side ejector. Hook in the side ejector adapter. -
Page 11: Use
WARNING: Never fill the fuel tank indoors, while the engine is running, or before the engine has cooled down for at least 15 minutes after use. CAUTION: Do not use unapproved gasoline, such as E15 and E85. Do not mix the oil with gasoline or modify the engine to operate with alternative fuels. -
Page 12: Maintenance And Storage
control lever positioned in front of the handlebars rearwards so that the lever is resting against the handlebars. Take hold of the starter handle firmly with the other hand. Pull the starter rope firmly until that the motor starts. If possible, mow only when the grass is dry. If the grass is wet or excessively long, perform two cutting passes. - Page 13 Do not use a pressure washer or hot water to clean the mower. Be careful to avoid soaking parts such as the engine, air cleaner, wheel bearings and metal fastenings. Dry off the machine before storing by leaving it running for a few minutes on a flat, clear surface to prevent corrosion or seizure.
- Page 14 Remove the spark plug and gently clean off any carbon deposits from the tip with a small copper wire brush, finishing off with petrol. Allow the spark plug to dry. Pull the starter rope several times to expel excess oil from the cylinder. Replace and tighten the spark plug.
- Page 15 Replace and retighten the serviced spark plug and replace the cap. If the spark plug is worn or damaged, replace with a new spark plug of the same or suitable type for the engine. Air Filter An air filter in poor condition will reducethe performance and life of the enginewhile making it harder to start.
-
Page 16: Ec Declaration
20220119970-20220120249 14/01/2022... -
Page 17: Warranty
8. WARRANTY WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identified as defective by the designated distributor. -
Page 18: Product Failure
9. PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine. -
Page 19: Warranty Exclusions
10. WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •...
