1. INTENDED USE This equipment is intended for mowing lawns. It is not suitable for commercial use. Any use other than specifically permitted in this instruction may result in damage or injury. This equipment is intended for use by adults. Children or other people who are unfamiliar with the operating instructions must not operate this equipment.
Page 4
Never use the mower with defective guards, or without safety devices such as baffles and or collection bins, which are not in place. Do not change the engine configuration or increase the speed. For starting, disengage all blades, the gears must be in neutral, the traction control lever must be released.
Page 5
grass that can be propelled by the machine. Keep children and pets at a safe distance while using the mower. Never lift the mower when the engine starts. Alcohol, drug, as well as illness, fever and fatigue affect your ability to respond. Do not use this tool in such circumstances.
Page 6
storage. Store the tool where fuel vapor will not reach a flame or spark. When transporting and storing the tool, always use a protection device to avoid fuel spillage, accidents and injuries. Residual risks Even if you use this product in compliance with all safety requirements, the potential risks of injury and damage remain.
4. ASSEMBLY 4.1 ASSEMBLY OF THE HANDLE 1) Take out the machine from carton box and check all accessories completely or not.(Fig.1,2,3) Fig.2 Fig.1 Fig.3 2) Unfold the handle as below picture show Fig.4. 3) Fix tightly the Inferior handle(4) with bolt and nuts on both side.(Fig.5) 4) Fix the superior handle(3) with bolt and nuts on both side.(Fig.6) 5) Connected the cables on the hole of self-propelled lever(1) and Engine control lever(2).
Page 10
Fig.7 Fig.6 Fig.8 Fig.9 4.2 ASSEMBLY OF GRASS BAG For rear discharge with grass collection.(Fig.14) 1) Pull up the deflector and take out the mulcher guard if there it is(Fig.10) 2) Pull up the deflector and place the grass catcher at its place.(Fig.11,12,13) 3) Keep the side discharge is closed.
Page 11
Fig.12 Fig.13 Fig.14 Fig.15 4.3 ASSEMBLY OF SIDE DISCHARGE For grass side discharge function(Fig.21) 1) Take out the grass catcher and put the mulcher guard in place(Fig.16,17 ), keep the deflector closed. 2) Push the unlock device to open the side discharge cover.(Fig.18) 3) Put the side discharge guiding board at it’s correct place.(Fig.19,20) Fig.17 Fig.16...
Page 12
Fig.19 Fig.18 Fig.20 Fig.21 4.4 ASSEMBLY OF MULCHING GUARD For grass mulching function.(Fig.23) Take out the grass catcher and insert the Mulcher Guard in its correct position.(Fig.22) Keep the deflector is closed. Keep the side discharge is closed. ...
5. FILLING FUEL AND OIL TANK WARNING! Gasoline is extremely flammable. Store fuel in specially designed cans for this purpose. Fill the fuel tank only outdoors and before starting the engine. Do not smoke when filling the fuel tank or handling fuel. Never open the fuel tank cap and never add fuel while the engine is running or when it is hot.
6. OPERATION 6.1 SAFETY PRECAUTIONS a) Always use the lawnmower with the grass catcher or/ and the deflector in position. b) Stop the engine before emptying the grass catcher or before you change the cutting height. c) While the engine is running, never introduce your hands or feet under the lawnmower or under the grass ejection area.
Page 15
6.3 ENGINE STARTING COLD STARTING a) Press the primer bulb 3 - 5 times b) Pull engine control lever until it touches the upper handle. c) Pull the starter rope until the engine starts. HOT-STARTING THE ENGINE d) Pull Engine control lever until it touches the upper handle. e) Pull the starter rope until the engine starts.
Page 16
Warning! Blade is in action as soon as engine started. While the machine is working maintain the engine control lever (2) in working position. The engine will stop as soon as you release the engine control bar(2). 6.4 FOR THE SELF-PROPELLED MOWER To engage the self-propelled system, pull on the self-propelled lever(1) and maintain it engaged together with the handle.
5. Do not run the engine in an enclosed and/or poorly ventilated area, where gas of the engine contains carbon monoxide, which are dangerous for your health. 6. Work only when there is sufficient light. 7. Do not use the lawnmower when it is raining or when the grass is wet. 8.
Page 18
Clean the grass collection bag annually with a brush or gentle spray of water. Disconnect the spark plug’s cap and tilt the mower on its side with the air filter and carburettor uppermost. Remove any remaining cut grass from the cutting system with a scraper and a brush. Reposition the mower onto its four wheels.
Page 19
cap. Storing the mower beneath a tarpaulin or similar cover is not recommended as it may cause a build‐up of condensation resulting in corrosion of the mower. Vertical storage This machine can be stored vertically: Adjust the cutting height to the lowest position.(Fig.24) ...
Page 20
To avoid scratching the mower, insert corrugated cardboard or similar padding between the upper and lower handlebars and the engine. Due to the mower’s weight, use ramps or seek assistance when lifting or loading the mower. d. Mower maintenance Cutting system Before and after each mowing session, check that the blade, its attachment bolts and drive shaft are not damaged or excessively worn.
8. TROUBLESHOOTING PROBLEM CAUSE SOLUTION Engine runs roughly Choke in the wrong position. Move choke lever to the RUN position. Dirty air filter. Clean or replace with a new one. Dirty fuel valve. Clean the fuel valve. Engine stops suddenly Low oil level.

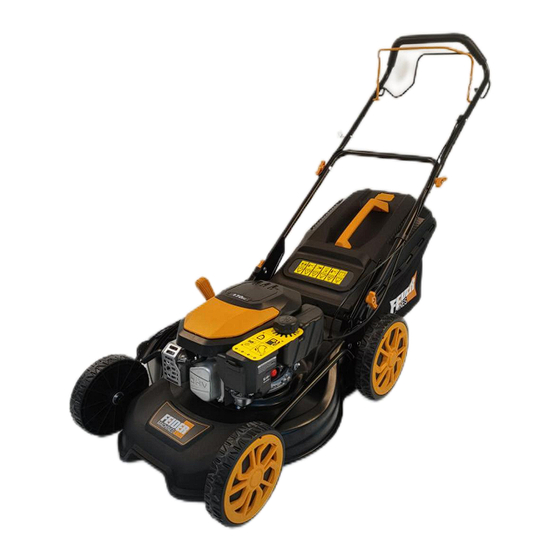

32 rue Aristide Bergès - Z.I. du Casque - 31270 Cugnaux - France Tel. +33 (0) 5.34.502.502 Fax: +33 (0) 5.34.502.503 Declares that the machine named below Petrol lawn mower FTDT5173VS Serial number: 20240205256-20240205365 Complies with the following European Directives:...
10. WARRANTY WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identifed as defective by the designated distributor.
11. PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank if your product has one. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine.
12. WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •...
Page 26
BUILDER SAS 32, rue Aristide Bergès - ZI 31270 Cugnaux – France Made in PRC...
