Summary of Contents for Compex SDS1224 2a
-

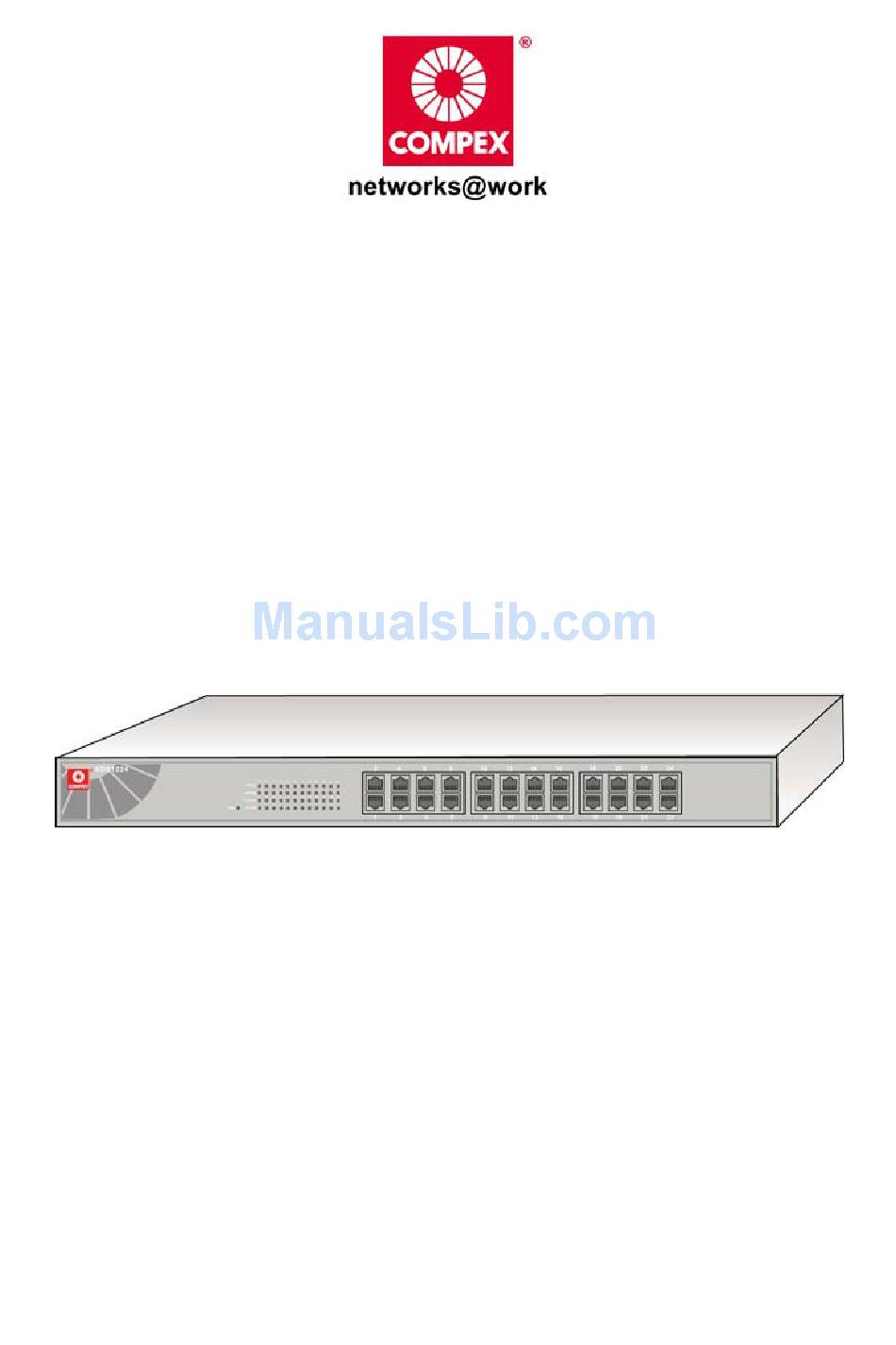

Page 1: Quick Install Guide
Quick Install Guide Compex 24-Port Fast Ethernet Switch SDS1224 2a... -
Page 2: Table Of Contents
Table of Contents Introduction...................1 Packaging Content................1 Network Applications ..............2 Example A: Small Workgroup Application ......... 2 Example B: Department Bridge Application ........2 Let’s Get Going-Hardware Setup ..........3 Panel Views and Descriptions.............5 LED Indicators Description............6 Technical Specifications .............7 WARRANTY REGISTRATION CARD .............10... -
Page 3: 1: Introduction
Chapter 1 Introduction 1: Introduction Compex SDS1224 is a 24-port 10/100 Base-TX switch used for high-performance switched workgroup networks. This switch is a store-and-forward device that offers low latency for high speed networking. This feature allows the switch to auto-learn and store address on its 8K-entry MAC address table. -
Page 4: 2: Network Applications
Chapter 2 Network Application 2: Network Applications Only a few simple steps are required to set up the Compex SDS1224 to illustrate how the switch is used for small workgroup and enterprise networks. Example A: Small Workgroup Application Example B: Department Bridge Application... -
Page 5: 3: Let's Get Going-Hardware Setup
Chapter 3 Let’s Get Going - Hardware Setup 3: Let’s Get Going-Hardware Setup Before setting up the Compex SDS1224, please take note of the following after you have unpacked the unit: • Ensure that there is sufficient space for heat ventilation when placing it near to a power outlet. - Page 6 Chapter 3 Let’s Get Going - Hardware Setup After both the mounting brackets are attached, position the switch in the rack by lining up the holes in the brackets with the appropriate holes on the rack. Secure the switch to the rack with a screwdriver and the rack-mounting screws. Connect the power cord to the power socket on the rear panel of the switch.
-
Page 7: 4: Panel Views And Descriptions
Chapter 4 Panel Views and Descriptions 4: Panel Views and Descriptions Front View of Compex SDS1224 Back View of Compex SDS1224 Indicator Description Used for real-time information of system operation status. For Indicators more details, refer to LED Indicators Description. -
Page 8: 5: Led Indicators Description
LNK/ACT means Link/Activity. For more details on how to activate VLANs, Trunking and Priority Ports, please refer to the “Winsmart” QIG on the Product CD. This document may become superseded in which case you may find its latest version at http://www.compex.com.sg... -
Page 9: 6: Technical Specifications
Chapter 6 Technical Specification 6: Technical Specifications EMI & Safety FCC Part 15 Class A CE Mark UL & cUL CE/EN60950 Standards Complies with supported IEEE 802.3: 10Base-T Ethernet IEEE 802.3u: 100Base-Tx Fast Ethernet IEEE 802.3x: Flow Control and Back-Pressure Technology Store and Forward Switching Architecture LED Indicators... - Page 10 Chapter 6 Technical Specification Dimension 440mm x 200mm x 44mm (L x W x H) Environment Operating 0°C to 50°C Requirements Temperature: Storage Temperature: -20°C to 70°C Operating Humidity: 5% to 90% (Non-condensing)
- Page 11 Compex, Inc. may make improvements and/or changes to the product and/or specifications of the product described in this guide, without prior notice. Compex, Inc will not be liable for any technical inaccuracies or typographical errors found in this guide. Changes are periodically made to the information contained herein and will be incorporated into later versions of the guide.
-
Page 12: Warranty Registration Card
WARRANTY REGISTRATION CARD [M-0088-V2.4C] Register via the Internet at http://www.cpx.com or http://www.compex.com.sg To activate the warranty, please complete this card and return to Compex within ninety (90) days from the date of purchase. Please e-mail this warranty card to support@compex.com.sg. Product:... - Page 13 Manual Number: M-0513-V1.2C Version 1.2 October 2005...
