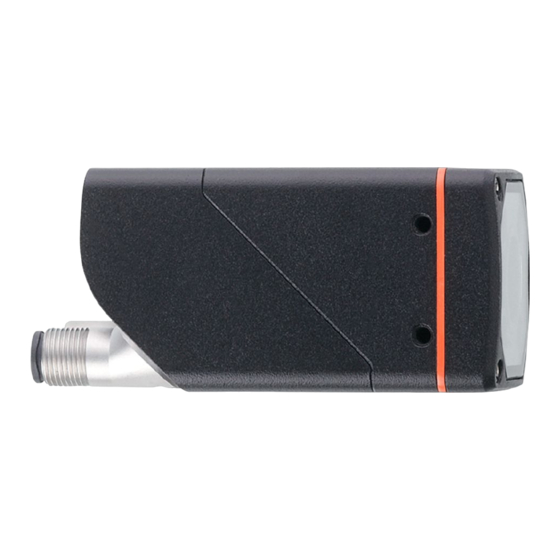

- Page 1 Object recognition sensor O2D54x O2D55x Firmware: 1.22.9009 or higher...
-
Page 2: Table Of Contents
O2D54x O2D55x Object recognition sensor Contents Preliminary note ............. Symbols used . -
Page 3: Preliminary Note
Device of protection class III. Only for operation in PELV circuits (Ò chapter Electrical connection). 1.4 Legal and copyright information © All rights reserved by ifm electronic gmbh. No part of these instructions may be reproduced and used without the consent of ifm electronic gmbh. - Page 4 The price of the ifm products has then to be paid for the respective device itself (hardware) and not for the firmware. For the latest information on the license agreement for your product please visit www.ifm.com...
-
Page 5: Safety Instructions
Object recognition sensor O2D54x O2D55x 2 Safety instructions • The unit described is a subcomponent for integration into a system. – The system architect is responsible for the safety of the system. – The system architect undertakes to perform a risk assessment and to create documentation in accordance with legal and normative requirements to be provided to the operator and user of the system. -
Page 6: O2D544
O2D54x O2D55x Object recognition sensor 2.1.2 O2D544 The colour of the illumination LEDs can be switched between red (625 nm), green (525 nm), blue (453 nm) and white. The colour selection applies to all LEDs at the same time. The lighting is highly focused. The unit complies with Risk Group 2 according to EN 62471:2008. -
Page 7: Intended Use
Object recognition sensor O2D54x O2D55x 3 Intended use The unit is used for quality inspection of objects. It checks and monitors contours, object properties, shape deviations, colour changes and surfaces. In addition, the unit is suited for sorting and counting tasks. 3.1 Application area The device safety is rated for use under the following operating conditions according to EN IEC 61010-2-201:... -
Page 8: Function
• Data processing with function blocks and logical links in the unit • Integrated ifm mass storage device saves current configuration for easy device replacement. Optional storage of error images 4.2 Web front end The unit has a web front end via which the following information can be retrieved: •... -
Page 9: External Triggering
• Internal triggering – Images are captured continuously with a fixed frame rate. – The settings are made via the ifm Vision Assistant software. • External triggering – Image capture activated by external trigger source (switching signal of a connected sensor) via the trigger input. -
Page 10: Switching Outputs
O2D54x O2D55x Object recognition sensor 4.4 Switching outputs The switching outputs OUT1 and OUT2 are configurable. If an external illumination is connected, only OUT1 is still available for the application. The configuration can be set individually for each application using ifmVisionAssistant. The table below shows the standard configuration. -
Page 11: O2D54X
Object recognition sensor O2D54x O2D55x u Observe the safety instructions for photobiological safety. (Ò Photobiological safety / 5) The internal and external lighting is switched on 500 µs before the image is taken. Switching on prematurely does not affect the brightness of the captured image. w Example: With an integration time of 100 µs, the lighting is switched on for 600 µs. -
Page 12: Mounting
2.1 Nm. u Align the unit to the centre of the object’s optical axis. Information about available accessories at www.ifm.com 5.1 Installation instructions Storage at high humidity can lead to fogging of the front glass after switch-on, which can affect the functioning of the unit. -
Page 13: Mounting With Clamp
Object recognition sensor O2D54x O2D55x 5.2 Mounting with clamp Fig. 5: Installation using the mounting set E2D500 M4 screws threaded M4 holes (depth 7 mm) bracket clamp u Fasten the bracket to the threaded M4 holes of the unit using two M4 screws. Tightening torque max. -
Page 14: Mounting With Dome Illumination
O2D54x O2D55x Object recognition sensor 5.3 Mounting with dome illumination Fig. 6: Installation using the mounting set E2D501 M4 screws threaded M4 holes (depth 7 mm) bracket clamp dome illumination u Fasten the bracket to the threaded M4 holes of the unit using two M4 screws. Tightening torque max. -
Page 15: Electrical Connection
Object recognition sensor O2D54x O2D55x 6 Electrical connection ATTENTION The unit must be connected by a qualified electrician. Protection class III (PC III) unit (IEC 61010-2-201 chap. 6.5.2.101.4). The electrical supply must - be provided only by PELV circuits (IEC 61010-2-201 chap. 3.111), - not exceed 35 V DC during operation, - not exceed 60 V DC in the event of a single fault and - not exceed the permitted operating voltage of the unit (see data sheet). -
Page 16: Wiring
Unit Notebook for parameter setting Industrial PC for evaluation and triggering Proximity switch Voltage source DC 24 V Fig. 7: Wiring example of a trigger circuit An adapter cable (Y cable) is available for external trigger sensors: Ò Accessories at www.ifm.com. -
Page 17: External Illumination
Object recognition sensor O2D54x O2D55x 6.3 External illumination An external illumination can be connected to facilitate object recognition. Connect the external illumination to switching output OUT2 of the unit. The sensor triggers the illumination independently or passes the trigger signal through to the external illumination unit. Example of compatible illumination units: O2D9xx. -
Page 18: Installation
To be able to make full use of the unit’s functions, the ifmVisionAssistant software is required for parameter setting. u Download the ifmVisionAssistant software via the download area of the unit: documentation.ifm.com The operation of the ifmVisionAssistant software is described in the software manual. Ò Software manual at documentation.ifm.com... -
Page 19: Operating And Display Elements
On for 2 s Configuration successfully saved Flashes at 8 Hz Flashes at 8 Hz Active mode for configuration transfer from ifm storage device via multi-function key (Ò Replace the unit / 25) Flashes at 8 Hz Error: lock button is active... - Page 20 O2D54x O2D55x Object recognition sensor --- means undefined state...
-
Page 21: Set-Up
After approx. 30 seconds, the unit is in the evaluation mode where saved applications are executed. The indicators signal the current operating status. On delivery, no applications are set up and the unit does not perform any function. u Configure the unit via the ifm Vision Assistant software. -
Page 22: Parameter Setting
The ifm Vision Assistant software and the software manual are available on the Internet: www.ifm.com. 10.1 Focus the optics using the multi-function key The multi-function key is inactive until at least one application has been created via the ifm Vision Assistant software. u Press the multi-function key for 3 seconds. -
Page 23: Operation
Object recognition sensor O2D54x O2D55x 11 Operation The following recommendations increase the recognition rate: u Place the object (3) in the field of view (2). u Remove other objects from the field of view. u For objects with shiny surface: • slightly tilt the device (1) or •... -
Page 24: Troubleshooting
O2D54x O2D55x Object recognition sensor 12 Troubleshooting If the unit behaves unexpectedly or incorrectly: u Download and install the latest firmware and ifmVisionAssistant versions. Download at documentation.ifm.com. If the problems persist: u Contact the ifm support. Contact at www.ifm.com. -
Page 25: Maintenance, Repair And Disposal
The integrated ifm storage device has a data retention time of 3 years at a maximum storage temperature of 55 °C. If this time is exceeded, data loss is possible. During operation, the stored data is refreshed periodically.
