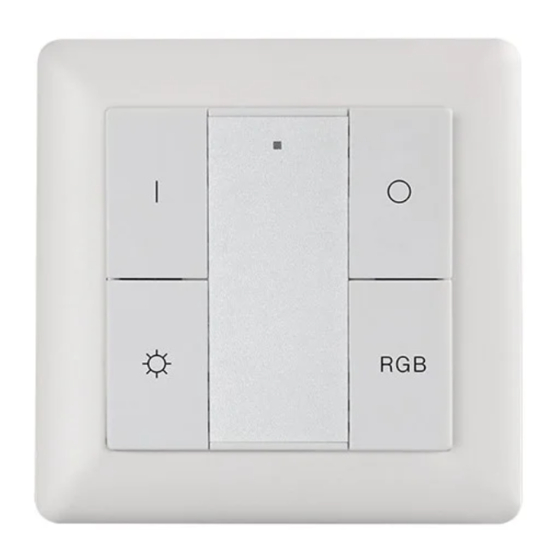

Sunricher ZG9001K4-RGBW Manual

RGB Wall Mounted ZigBee Remote Controller
Important: Read All Instructions Prior to Installation

Function introduction

Press and hold down to search and pair to ZigBee
network or factory reset the remote.
Click to turn on/off.
Click to get white color mixed
by RGB colors
11 mm
Battery: CR2450
Before the first use, please remove the protective film
09.ZGK4D.04835
Press and hold down to
increase/decrease light
intensity.
Press and hold down to
select RGB color, short
press to get R, G, B one
by one
Note: This remote supports
1 group for binding max. 30
lighting devices.

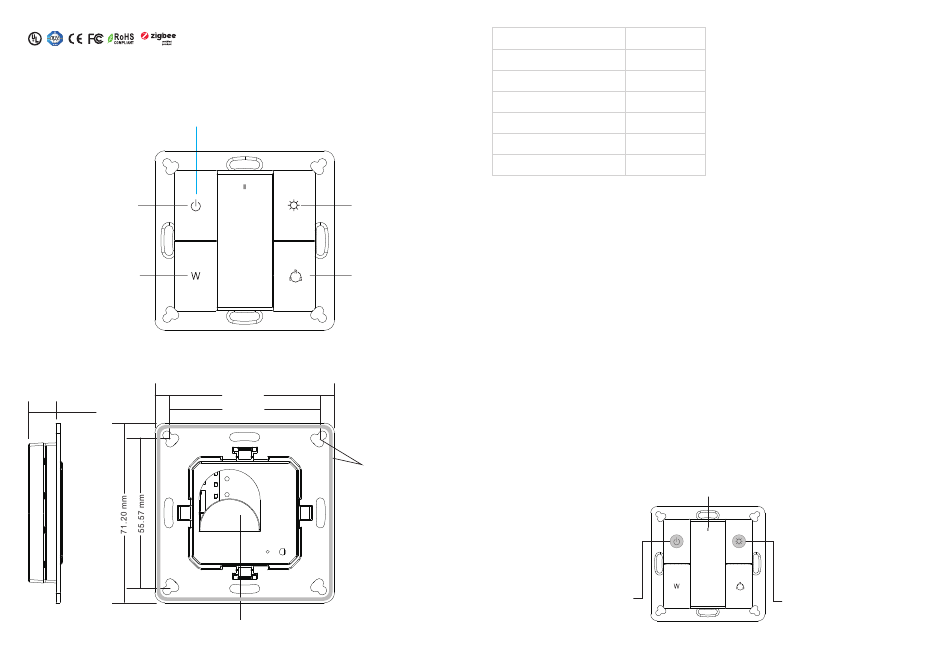

Front side
71.20 mm
55.57 mm
The remote control can be fixed on
the wall with 3M glue or screw.
Back side
Product Data
Protocol ZigBee 3.0
Operation Voltage 3VDC (CR2450)
Transmission Frequency 2.4GHz
Transmission Range (free field) 30m
Protection Type IP20
Dimming Range 0.1%-100%
Dimensions
71.2x71.2x13.6mm

ZigBee Clusters Supported by This Remote Are As Follows:

Input clusters:
• Basic • Power Configuration • Identify
Output clusters:
• Identify • On/off • Level control
Safety & Warnings
• This device contains a button lithium battery that shall be stored and disposed properly.
• DO NOT expose the device to moisture.

Operation

1.This ZigBee RGB remote is a wireless transmitter that communicates with a variety of ZigBee
compatible systems. This transmitter sends wireless radio signals that are used to remotely control a
compatible system.
2.This ZigBee remote supports 1 group for binding max. 30 lighting devices and enables to control RGB
ZigBee lighting devices.

3. Zigbee Network Pairing through Coordinator or Hub (Added to a Zigbee Network)

Step 1: Remove the remote from
previous zigbee network if it has
already been added to it, otherwise
pairing will fail. Please refer to the
part "Factory Reset Manually".
Step 3: Press and hold down until
LED indicator turns on.
• ZigBee RGB remote based on ZigBee 3.0
• Enables to pair ZigBee lighting devices via touchlink
commissioning without coordinator
• Supports find and bind mode to pair with ZigBee
lighting devices
• Supports 1 group for binding max. 30 lighting devices
• 2.4 GHz global operation
• Long battery life mesh technology
• Transmission range up to 30m
• Compatible with universal ZigBee Gateway products
• Compatible with universal RGB ZigBee lighting
devices
• Diagnostics
• Ota • Color control
LED indicator
Step 2: From your zigbee
controller or hub interface, choose
to add device or accessory and
enter Pairing mode as instructed
by the controller.
Step 4: Immediately short press to
search nearby network, indicator
flashes every 1 second, 20 seconds
timeout if there is no network.
Indicator will then blink 5 times
quickly for successful pairing.
