Auber Instruments SYL-1614 Quick Manual

Quick Guide for Charcoal Smoker Temperature Controller

This temperature controller is for Charcoal Smoker. To operate it, connect the 12VDC power
adapter to the terminal 1 and wall outlet. Connect the fan connector to terminal 2. The polarity for
this socket is center pin positive (+), outer collar negative (−). Connect the K thermocouple to the
terminal 3. Please note that thermocouple connector also has polarity. The wide blade should
goes to wide slot.

Application tips.

1) The PID parameters are optimized for Charcoal smoker. Users don't need to change them. If
you need further information about how to fine tune the controller, please refer to the instruction
manual.
2) The thermocouple cable is food grade, which is insulated by TEFLON (PFA) with stainless
steel over braid. The maximum working temperature for the cable is 500°F. Please do not drop
the cable on top of the flame or drape it over the fire box.

3) To set target temperature:

There are two ways to set the target temperature.
a. During the normal operation mode, press Λ or V once to switch the display from process
value (PV) to set value (SV, or target temperature). The display will start to blink. Press Λ or V
again to increase or decrease the SV. When finished, wait 8 seconds and the setting will take
effect automatically (the display will stop blinking).
b. Press SET key once. Use >, Λ and V keys to enter code 0001. Press SET key to confirm,
then the display would be SV (Su). Press SET key again to display the SV setting. Use >, Λ and
V keys to enter the new SV and press SET to confirm. Press V key to change the display to
END. Then, press SET to exit. You can also ignore the steps after confirmation of SV. The
controller will returns to normal operation mode if no key is pressed for 1 minute. Figure 2 is a
detailed flow chart that shows how to set the SV.

4) To set alarm:

The controller offers two alarms that can be set to turn on the buzzer at specific temperatures.
The first alarm is controlled by parameter AH1 and AL1. The initial setting will turn on the buzzer
at 250°F and off when temperature drops below 249°F. The second alarm is controlled by
parameter AH2 and AL2. The initial setting of the second alarm is deactivated. It can be set as
low alarm to send warning when charcoal is low.
AH1 and AH2 are the temperature to turn buzzer on; AL1 and AL2 are the temperature to turn
buzzer off. When AH1(2) >AL1(2), the alarm is set for absolute high alarm, When AH1(2)

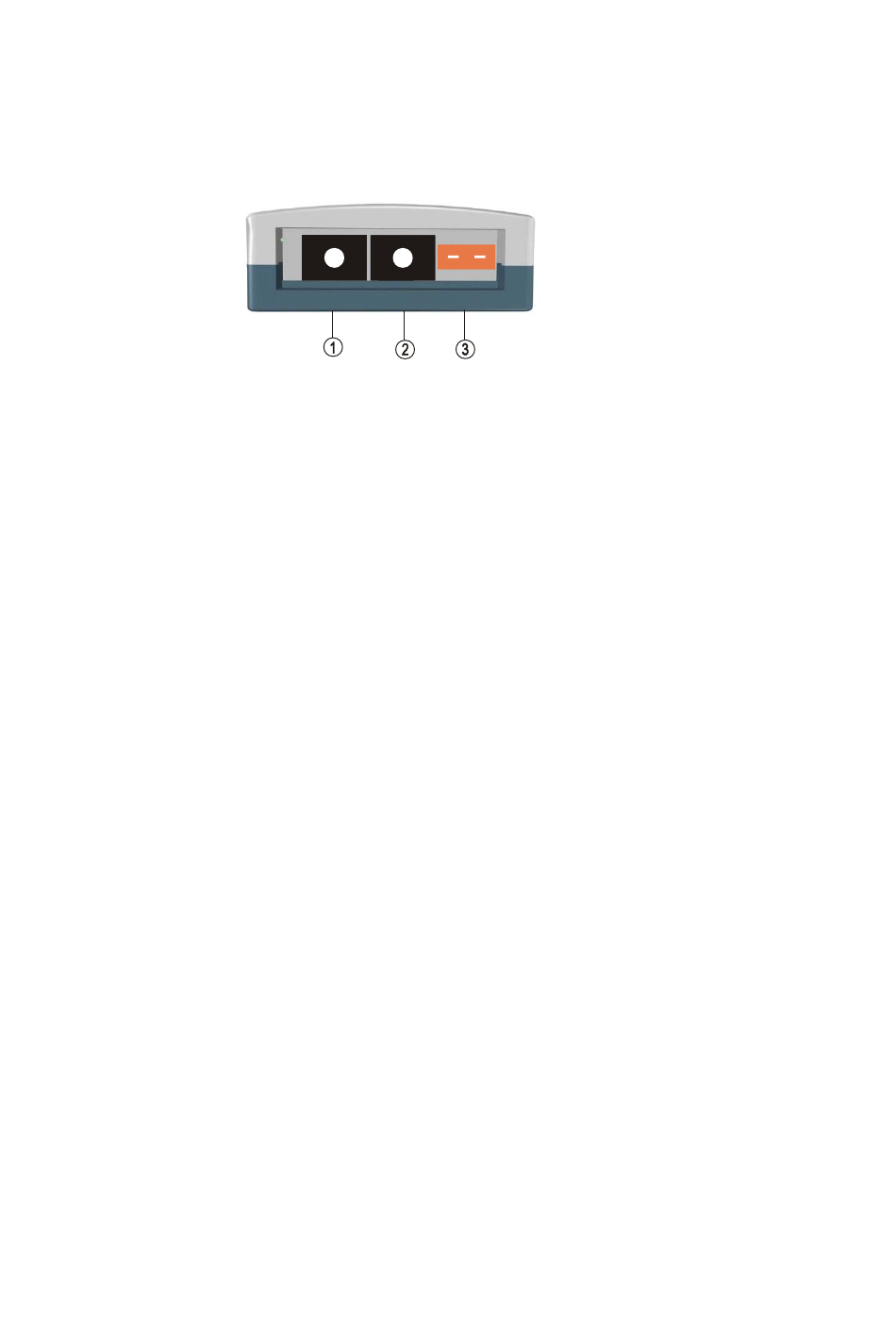

① POWER-12V Power supply input
② OUT- Fan control output
③ INPUT-Temperature probe input
Figure 1. Controller connector identification.
Ver 1.1
