Important safety instructions:
Please read carefully all instructions before assembly.
For your safety and ease, assembly by two or more adults is recommended.
Keep instructions for future use.
Pre-assembly:
Do not discard any content until assembly is complete to avoid accidentally discarding small parts or hardware.
Take out all parts and hardware from box.
Parts List
Description
Item
REST + SEAT
P1
+ CUSHION
FRONT LEG
P2
LEFT
FRONT LEG
P3
RIGHT
P4
BACK LEGS
Hardware List
Item
H1
ALLEN KEY 4 MM
H2
BOLT M6 X 60 MM
H3
BOLT M6 X 40 MM
H4
LOCK WASHER 6 X 11 X 2
H5
FLAT WASHER 6 X 13 X 1
H6
WOODEN PLUG
Disclaimer: When properly assembled, this item is safe for intended use. Seller is not liable
for any damages resul ng from item being improperly assembled a er purchase
Assembly Procedures:
Step 1. Assemble the chair on a flat, soft surface such as a carpet or cloth to prevent scratching the finish.
ASSEMBLY INSTRUCTIONS

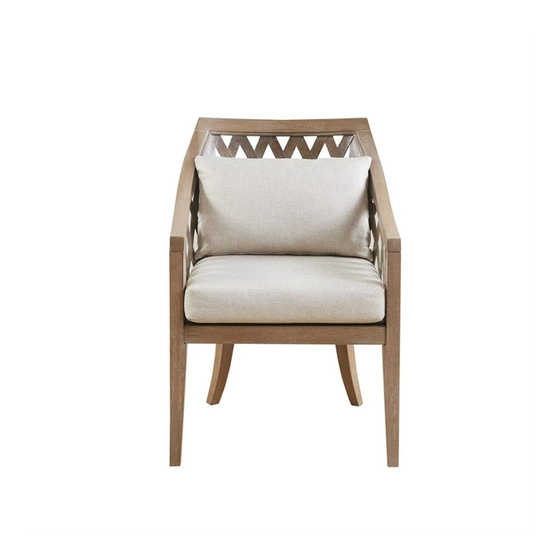

Description: E&E - SAN PEDRO ACCENT CHAIR
Description
QTY
1
1
1
2
QTY
12
12
Legs and
hardware
package
Page 1 of 3
1
4
8
4
