Ozito EPHT-501 Instruction Manual

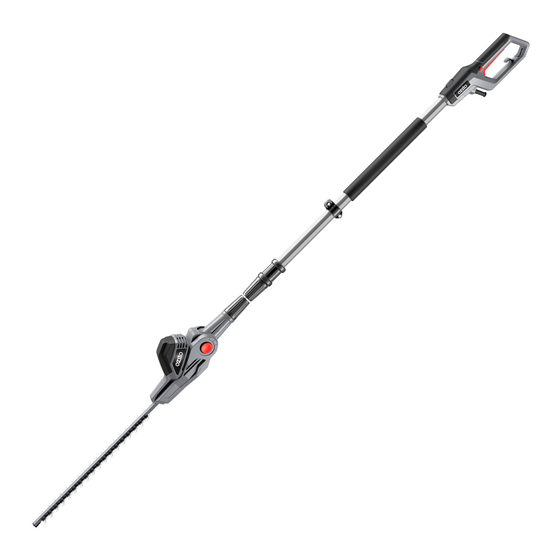

Telescopic pole hedge trimmer
Hide thumbs
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

Download this manual
TELESCOPIC
POLE HEDGE
TRIMMER
500W 470MM
INSTRUCTION MANUAL
SPECIFICATIONS
Input Power:
500W
No Load Speed:
3,000/min
Blade Length:
560mm
Telescopic Range:
2.30 - 3.10m
Max. Cutting Length:
470mm
Max. Cutting Diameter: 14.5mm
Noise Rating:
105dB
Weight:
4.4kg
ozito.com.au
IN ORDER TO MAKE A CLAIM UNDER THIS WARRANTY
YOU MUST RETURN THE PRODUCT TO YOUR NEAREST
BUNNINGS WAREHOUSE WITH YOUR BUNNINGS
REGISTER RECEIPT. PRIOR TO RETURNING YOUR
PRODUCT FOR WARRANTY PLEASE TELEPHONE OUR
CUSTOMER SERVICE HELPLINE:
Australia: 1800 069 486
New Zealand: 0508 069 486
TO ENSURE A SPEEDY RESPONSE PLEASE HAVE
THE MODEL NUMBER AND DATE OF PURCHASE
AVAILABLE. A CUSTOMER SERVICE REPRESENTATIVE
WILL TAKE YOUR CALL AND ANSWER ANY QUESTIONS
YOU MAY HAVE RELATING TO THE WARRANTY POLICY
OR PROCEDURE.
Ozito Industries Pty. Ltd.
25 Fox Drive, Dandenong South, Victoria 3175 Australia.
WARRANTY
The benefits provided under this warranty are in addition to other rights and remedies which
are available to you at law.
Our goods come with guarantees that cannot be excluded at law. You are entitled to a
replacement or refund for a major failure and for compensation for any other reasonably
foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the
goods fail to be of acceptable quality and the failure does not amount to a major failure.
Generally you will be responsible for all costs associated with a claim under this warranty,
however, where you have suffered any additional direct loss as a result of a defective product
you may be able to claim such expenses by contacting our customer service helpline above.
3 YEAR REPLACEMENT WARRANTY*
Your product is guaranteed for a period of 36 months from the original date of purchase.
If a product is defective it will be replaced in accordance with the terms of this warranty.
Warranty excludes consumable parts, for example: bearings, carbon brushes, blade, and included
accessories.
*This product is intended for DIY use only and replacement warranty covers domestic use.
WARNING
The following actions will result in the warranty being void.
• If the tool has been operated on a supply voltage other than that specified on the machine.
• If the tool shows signs of damage or defects caused by or resulting from abuse, accidents
or alterations.
• Failure to perform maintenance as set out within the instruction manual.
• If the tool is disassembled or tampered with in any way.
• Professional, industrial or high frequency use.
STANDARD EQUIPMENT
Telescopic Pole Hedge Trimmer
Blade Cover
Shoulder Strap
Combination Key & Screw
EPHT-501
1122

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EPHT-501 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ozito EPHT-501

Summary of Contents for Ozito EPHT-501

  • Page 1 • Failure to perform maintenance as set out within the instruction manual. • If the tool is disassembled or tampered with in any way. • Professional, industrial or high frequency use. Ozito Industries Pty. Ltd. 25 Fox Drive, Dandenong South, Victoria 3175 Australia. 1122...

  • Page 2: Know Your Product

    KNOW YOUR PRODUCT SETUP & PREPARATION TELESCOPIC POLE HEDGE TRIMMER 1. ASSEMBLY Blade Motor housing Pivoting head button WARNING! ENSURE THE MACHINE IS TURNED OFF AND Motor tube collar DISCONNECTED FROM THE POWER SUPPLY BEFORE Telescopic tube collar PERFORMING ANY OF THE FOLLOWING OPERATIONS. Main tube Shoulder strap retainer WARNING!
  • Page 3 2. SETUP 3. PREPARATION Adjusting the telescopic length Protective clothing Make absolutely sure to wear the appropriate, close fitting protective clothing, 1. To unlock the telescopic tube collar, twist such as protective pants, gloves and safety shoes. Wearing hearing protection, the collar in a clockwise direction while protective goggles and a safety helmet with a face guard will provide pointing the blade away from the user.

  • Page 4: Operation

    OPERATION 4. STARTING & STOPPING Extension cord retainer WARNING! FAMILIARISE YOURSELF WITH SURROUNDING HAZARDS SUCH AS POWER LINES, PHONE LINES, METAL The cord retainer is used to “anchor” an extension cord (not included) when it FENCES AND OTHER OBJECTS THAT COULD BE IN YOUR is connected to the power lead of the equipment.
  • Page 5 INSULATED HANDLES OR LAY IT DOWN AND AWAY FROM YOU IN A SAFE MANNER. DISCONNECT THE ELECTRICAL SERVICE TO THE DAMAGED LINE OR CORD BEFORE ATTEMPTING TO FREE THE BLADE. FAILURE TO HEED THIS WARNING MAY RESULT IN SERIOUS PERSONAL INJURY OR POSSIBLE DEATH. EPHT-501...

  • Page 6: Maintenance

    2. Lay the pole hedge trimmer on a Note: Ozito Industries will not be responsible for any damage or flat surface. Apply a light weight injuries caused by the repair of the Pole Hedge Trimmer by an machine oil along the edge of the unauthorised person or by mishandling of the Pole Hedge Trimmer.

  • Page 7: Troubleshooting

    Check the mains power, For further information, or any parts not listed here, visit power cord, extension Switch ON / OFF are broken www.ozito.com.au or contact Ozito Customer Service: cord, plug and house Carbon brushes are worn Australia 1800 069 486 fuse.

  • Page 8: Electrical Safety

    ELECTRICAL SAFETY WARNING! When using electric tools basic safety precautions should always be followed to reduce the -Always use an approved extension lead suitable for the power input of this tool. Before use, inspect the extension risk of fire, electric shock and personal injury. lead for signs of damage, wear and ageing.
