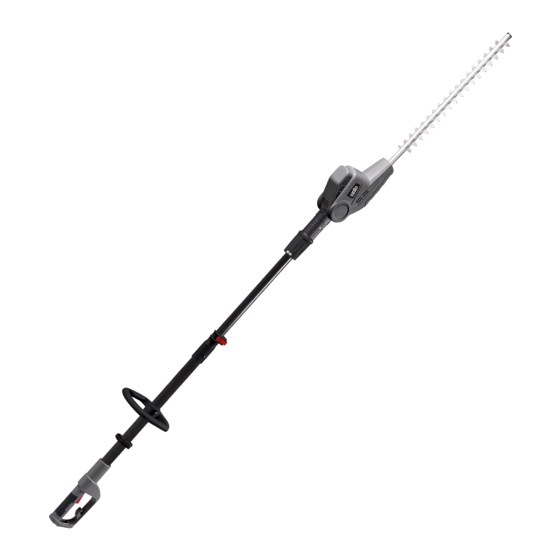

Telescopic pole hedge trimmer

Advertisement

Quick Links

TELESCOPIC
POLE HEDGE
TRIMMER
500W 470mm
INSTRUCTION MANUAL
SPECIFICATIONS
Power:
500W
No Load Speed:
1,650/min
Blade Length:
585mm
Max Cutting Length:
470mm
Max. Cutting Diameter: 15mm
Telescopic Range:
1.93 - 2.40m
Weight:
4.3kgs
ozito.com.au
IN ORDER TO MAKE A CLAIM UNDER THIS
WARRANTY YOU MUST RETURN THE PRODUCT
TO YOUR NEAREST BUNNINGS WAREHOUSE WITH
YOUR BUNNINGS REGISTER RECEIPT. PRIOR TO
RETURNING YOUR PRODUCT FOR WARRANTY
PLEASE TELEPHONE OUR CUSTOMER SERVICE
HELPLINE:
Australia 1800 069 486
New Zealand 0508 069 486
TO ENSURE A SPEEDY RESPONSE PLEASE
HAVE THE MODEL NUMBER AND DATE OF
PURCHASE AVAILABLE. A CUSTOMER SERVICE
REPRESENTATIVE WILL TAKE YOUR CALL
AND ANSWER ANY QUESTIONS YOU MAY
HAVE RELATING TO THE WARRANTY POLICY
OR PROCEDURE.
OZITO
Australia/New Zealand (Head Office) 1-23 Letcon Drive, Bangholme, Victoria, Australia 3175.
WARRANTY
The benefits provided under this warranty are in addition
to other rights and remedies which are available to you at law.
Our goods come with guarantees that cannot be excluded
at law. You are entitled to a replacement or refund for a major
failure and for compensation for any other reasonably foreseeable
loss or damage. You are also entitled to have the goods repaired
or replaced if the goods fail to be of acceptable quality and the
failure does not amount to a major failure.
Generally you will be responsible for all costs associated with
a claim under this warranty, however, where you have suffered
any additional direct loss as a result of a defective product you
may be able to claim such expenses by contacting our customer
service helpline above.
3 YEAR REPLACEMENT WARRANTY
Your product is guaranteed for a period of 36 months from
the original date of purchase. If a product is defective it will
be replaced in accordance with the terms of this warranty.
Warranty excludes consumable parts, for example: carbon brushes,
blade and included accessories.
WARNING
The following actions will result in the warranty being void.
• If the tool has been operated on a supply voltage other
than that specified on the tool.
• If the tool shows signs of damage or defects caused
by or resulting from abuse, accidents or alterations.
• Failure to perform maintenance as set out within the instruction
manual.
• If the tool is disassembled or tampered with in any way.
• Professional, industrial or high frequency use.
WHAT'S IN THE BOX
Pole Hedge Trimmer
Blade Cover
Shoulder Strap
Additional Handle
EPHT-500
0717

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EPHT-500 and is the answer not in the manual?

Questions and answers

Summary of Contents for Ozito EPHT-500

  • Page 1 Telescopic Range: 1.93 - 2.40m Weight: 4.3kgs ozito.com.au EPHT-500 WARRANTY IN ORDER TO MAKE A CLAIM UNDER THIS The benefits provided under this warranty are in addition to other rights and remedies which are available to you at law. WARRANTY YOU MUST RETURN THE PRODUCT...
  • Page 2: Know Your Product

    KNOW YOUR PRODUCT ASSEMBLY TELESCOPIC POLE HEDGE TRIMMER 1. SHAFT ASSEMBLY 1. Blade 2. Motor housing 3. Telescopic shaft WARNING!: TO PREVENT ACCIDENTAL STARTING, 4. Telescopic shaft lock ENSURE THAT THE POLE HEDGE TRIMMER IS 5. Main shaft DISCONNECTED FROM THE POWER SUPPLY BEFORE MAKING ANY ADJUSTMENTS.
  • Page 3: Setup & Preparation

    SETUP & PREPARATION 2. CORD RETAINER 3. PREPARATION Extension cord retainer Adjusting the telescope length The cord retainer is used to “anchor” an extension cord (not included) 1. Unlock the telescopic shaft lock. when it is connected to the power lead of the tool. It prevents the extension cord from being accidentally disconnected from the tool power lead or shaken loose during use.
  • Page 4: Operation

    OPERATION 4. SWITCHING ON AND OFF Adjusting the blade angle WARNING! TO REDUCE THE RISK OF ELECTRIC SHOCK, THE USE OF A RESIDUAL CURRENT WARNING!: DO NOT HOLD THE BLADE IN AN DEVICE RATED AT 30mA OR LESS IS RECOMMENDED. ATTEMPT TO ADJUST THE BLADE ANGLE.
  • Page 5 TRIMMER. motion gives the best cut. NOTE: Do not use the pole hedge trimmer for cutting stems greater than 15mm. Use the trimmer only for cutting normal shrubbery found around houses and buildings. 15° EPHT-500...
  • Page 6: General Maintenance

    Always replace both carbon brushes at the same time. Note: Ozito Industries will not be responsible for any damage or injuries caused by the repair of the tool by an unauthorised person or by mishandling of the tool.
  • Page 7: Description Of Symbols

    Watts Alternating current /min Revolutions or No load speed For information on any parts , visit www.ozito.com.au or reciprocation per minute contact Ozito Customer Service: Regulator compliance mark Double insulated Australia 1800 069 486 New Zealand 0508 069 486...
  • Page 8: Electrical Safety

    ELECTRICAL SAFETY WARNING! When using mains-powered tools, basic safety precautions, including The power supply for this product should be protected by a residual current device (rated at the following, should always be followed to reduce risk of fire, electric shock, 30mA or less).
