UEi HUB2 Instruction Manual

Smart Temperature Split Kit
Smart Refrigerant Charging Kit
Smart Refrigerant Complete Kit
INSTRUCTION MANUAL
ENGLISH
WPC1: Pipe clamp sensor
WPP1: Wireless Pressure Probe
www.ueitest.com • email: info@ueitest.com

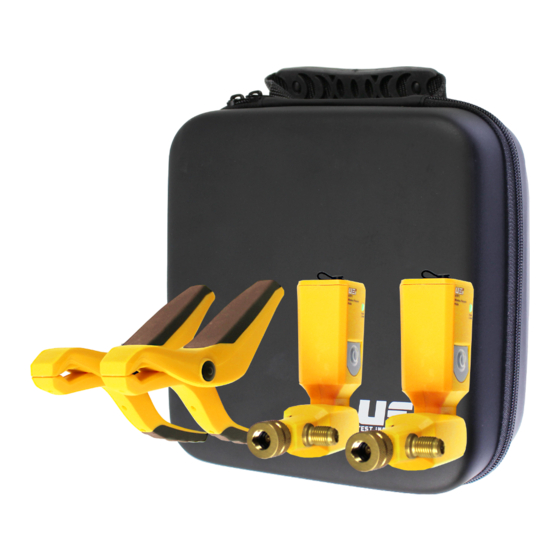

HUB2 HUB4
2 WPP1
2 WHP1
2 WPC1
4 Batteries (AAA)
4 Batteries (AA)
Carrying case
Carrying case
IMPORTANT SAFETY WARNINGS
WARNING
Read entire safety notes section regarding potential hazard and proper
instructions before using these probes. In this manual the word "WARNING"
is used to indicate conditions or actions that may pose physical hazards to
the user. The word "CAUTION" is used to indicate conditions or actions that
may damage these instrument.
WARNING
To ensure safe operation and service of these probes, follow these instructions.
Failure to observe these warnings can result in severe injury or death.
WARNING
Maximum over pressure is: 1000 PSI.
WARNING
• Do not open these probes to replace batteries while the probes
are connected to an HVACR or other mechanical system.
• To avoid false readings, replace batteries if a low battery indicator appears.
• Do not use this these probes if they appear damaged.
• Always adhere to national and local safety codes. Use proper personal
protective equipment (PPE).
WARNING
These probes are designed for trade professionals who are familiar with the
hazards of their trade. Observe all recommended safety procedures that
include proper lockout utilization and use of personal protective equipment
that includes safety glasses, gloves and flame resistant clothing.
WHP1 OVERVIEW
1. Hygrometer (WHP1): Hub 2 & Hub 6
A.
B.
C.
D.
E.
Battery level
tool connection screen to the right of each
probe connected.
opening battery compartments
•
•
Screw
•
HUB2 / HUB4 / HUB6
WHP1: Wireless Hygrometer Probe
UEI HUB APP
1-800-547-5740
HUB6
2 WHP1
2 WPP1
2 WPC1
8 Batteries
(4x AA, 4x AAA)
Carrying case
A. Lock Button: Press to open or close probe
B. 1/4" diameter probe.
C. Magnetic Mount
D. Battery Cover.
E. Light: Blinks GREEN when probe is powered
on. Blinks RED when low battery.*
CAUTION: Press down Lock Button to
release probe. Failure to do so may break probe
and is not covered under warranty.
GENERAL SPECIFICATIONS
Temperature Range: 32˚F to 140˚F (0˚C to 60˚C)
Temperature Accuracy: ±0.5˚F (0.3˚C)
Relative Humidity Range: 0% to 100%
Relative Humidity Resolution: 0.1%
Relative Humidity Accuracy: ±3% 20% to 80%
otherwise ±5%
Operating Temperature: 41°F to 140°F (5°C to 60°C)
Storage Temperature: 14°F to 140°F (-10°C to 60°C)
Operating Humidity: 20% RH to 80% RH
Recommended: Do Not use longer than 60
hours out of range
Dimensions: 6.84 in x 1.93 in x 1.53 in
(17.4 cm x 4.9 cm x 3.9 cm)
Item Weight: 4.4 oz (125 gr)
Certification: CE Conformity, FCC/IC
Battery Type: (AAA) 2
Battery Life: 100+ hours
* NOTE: Low battery indicator is also in the
"Tool Connection" screen
are displayed in the
Caution: Take care not to lose the screws when
Remove battery cover.
Replace the old batteries with 2 new
(AAA) batteries.
Replace the battery cover.
WPP1 OVERVIEW
2. Pressure Probe (WPP1): Hub 4 & Hub 6
A.
B.
C.
D.
E.
F.
WPC1 OVERVIEW
3. Pipe clamp sensor (WPC1): Hub 4 & Hub 6
B.
Hub
Refrigerant Side Air Side
A.
select tool
--.--°F
Suction Line Pressure Vapor
Saturation
select tool
Line Temp
--.--°F
Superheat
R507A
--.--°F
Subcooling
select tool
--.--°F
Liquid Line Pressure Liquid
Saturation
UEi HUB OVERVIEW
select tool
Line Temp
Refrigerant Side
A.
Suction
Line Pressure
B.
Line Temp
C.
R507A
Hub
Refrigerant Side Air Side
D.
Liquid Line Pressure
select tool
--.--°F
E.
Suction Line Pressure Vapor
Line Temp
Saturation
select tool
Line Temp
--.--°F
A. Suction Line Pressure
Superheat
B. Suction Line Temperature
R507A
C. Refrigerant Favorites (tap to view)
--.--°F
D. Liquid Line Pressure
Subcooling
E. Liquid Line Temperature
select tool
--.--°F
Liquid Line Pressure Liquid
Saturation
select tool
Line Temp
A.
Refrigerant Side
B.
--.--°F
C.
Target Delta T
D.
select tool
Return Dry Bulb
E.
select tool
Return Wet Bulb
A. Refrigerant Side Screen (tap or
swipe right to view)
B. Delta T
C. Target Delta T (assumes
400 CFM/ton)
D. Return Dry Bulb Temperature
A. Cable connector plug-in: for connecting the
pipe clamp sensor (WPC1).
B. Battery cover
C. Light: Blinks GREEN when probe is powered
on and blinks when low battery.*
RED
D. Power Button: Hold for one second to
power on
E. 1/4"pressure connector
F. 1/4" pass-through connector
*NOTE: Low battery indicator is in the "Tool
Connection" screen
GENERAL SPECIFICATIONS
Range: 0 to 725 PSIg
Resolution: 0.1 PSI
Accuracy: 0.5% F.S. (at 25˚C ±3˚C) Total 1% F.S.
32˚F to 158˚F (0˚C to 70˚C)
Operating Temperature: 14°F to 158°F
(-10°C to 70°C)
Storage Temperature: 14°F to 140°F
(-10°C to 60°C)
Operating Humidity: 30% RH to 85% RH
Over-range: 1000 PSI
Dimensions: 6.70 in x 1.56 in x 1.44 in
(17 cm x 4 cm x 3.7 cm)
Item Weight: 7.4 oz (210 gr)
Certification: CE Conformity, FCC/IC
Battery Type: (AA) 2
Battery Life: 100+ hours
Battery level are displayed in the tool
connection screen to the right of each
probe connected.
Caution: Take care not to lose the screws when
opening battery compartments
• Remove battery cover.
• Replace the old batteries with 2 new
(AA) batteries.
• Replace the battery cover.
A. Temperature sensor
B. Cable connector plug-in: for connecting
WPC1 to the WPP1.
NOTE: Maximum pipe diameter is 1.5 in. (3.8cm)
GENERAL SPECIFICATIONS
Range: 32˚F to 176˚F (0˚C to 80˚C)
Resolution: 0.1˚F
Accuracy: ±(0.6˚F (0.3˚C))
Response Time: <30 sec.
Operating Temperature: -40°F to 185°F
(-40°C to 85°C)
Storage Temperature: 14°F to 140°F (-10°C to 60°C)
Dimensions: 5.66 in x 3.81 in x 1.10 in
(14.4 cm x 9.7 cm x 2.8 cm)
Item Weight: 2.1 oz (60 gr)
Certification: CE Conformity, FCC/IC
A. Home Screen:
Refrigerant Side
Hub
Air Side
select tool
--.--°F
Vapor
Saturation
select tool
--.--°F
Superheat
--.--°F
Subcooling
select tool
--.--°F
Liquid
Saturation
select tool
F. Refrigerant List (tap to view)
G. Air Side Screen (tap or swipe
left to view)
H. Vapor Saturation Temperature
I. Liquid Saturation Temperature
A. Home Screen:
Air Side
Hub
Air Side
--.--°F
Delta T
select tool
Supply Dry Bulb
select tool
Supply Wet Bulb
E. Return Wet Bulb Temperature
F. Return and Supply Calculations
(tap to view)
G. Supply Dry Bulb Temperature
H. Supply Wet Bulb Temperature
F.
G.
H.
I.
F.
G.
H.
