UEi HUB4 Instruction Manual

UEi HUB4 Instruction Manual

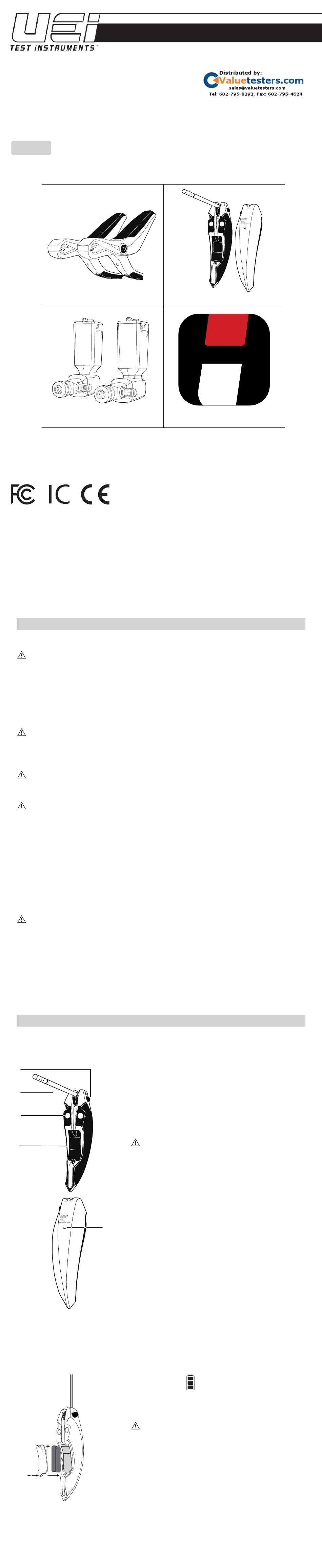

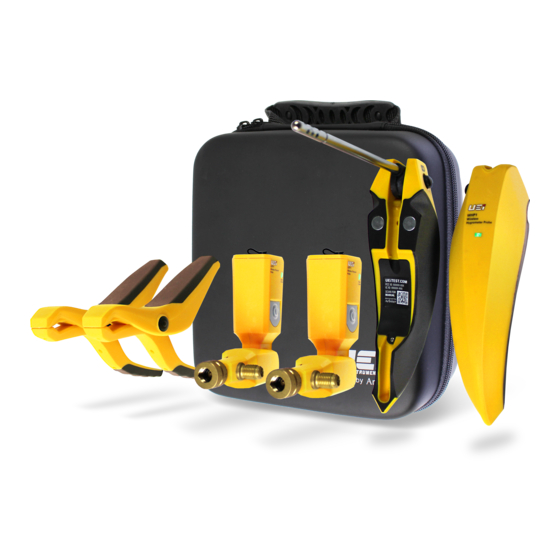

Smart temperature split kit smart refrigerant charging kit smart refrigerant complete kit
Hide thumbs Also See for HUB4:
Table of Contents

Advertisement

Available languages

Available languages

Quick Links

Smart Temperature Split Kit
Smart Refrigerant Charging Kit
Smart Refrigerant Complete Kit
INSTRUCTION MANUAL
ENGLISH
WPC1: Pipe clamp sensor
WPP1: Wireless Pressure Probe
HUB2
2 WHP1
4 Batteries (AAA)
Carrying case
WARNING
Read entire safety notes section regarding potential hazard and proper
instructions before using these probes. In this manual the word "WARNING"
is used to indicate conditions or actions that may pose physical hazards to
the user. The word "CAUTION" is used to indicate conditions or actions that
may damage these instrument.
WARNING
To ensure safe operation and service of these probes, follow these instructions.
Failure to observe these warnings can result in severe injury or death.
WARNING
Maximum over pressure is: 1000 PSI.
WARNING
• Do not open these probes to replace batteries while the probes
are connected to an HVACR or other mechanical system.
• To avoid false readings, replace batteries if a low battery indicator appears.
• Do not use this these probes if they appear damaged.
• Always adhere to national and local safety codes. Use proper personal
protective equipment (PPE).
WARNING
These probes are designed for trade professionals who are familiar with the
hazards of their trade. Observe all recommended safety procedures that
include proper lockout utilization and use of personal protective equipment
that includes safety glasses, gloves and flame resistant clothing.
A.
B.
C.
D.
1-800-547-5740
www.ueitest.com • email: info@ueitest.com
HUB4
2 WPP1
2 WPC1
4 Batteries (AA)
Carrying case
IMPORTANT SAFETY WARNINGS
WHP1 OVERVIEW
1. Hygrometer (WHP1): Hub 2 & Hub 6
A. Lock Button: Press to open or close probe
B. 1/4" diameter probe.
C. Magnetic Mount
D. Battery Cover.
E. Light: Blinks
on. Blinks
CAUTION: Press down Lock Button to
release probe. Failure to do so may break probe
and is not covered under warranty.
GENERAL SPECIFICATIONS
Operating Temperature: 41°F to 140°F (5°C to 60°C)
Storage Temperature: 14°F to 140°F (-10°C to 60°C)
Operating Humidity: 20% RH to 80% RH
E.
Recommended: Do Not use longer than 60
hours out of range
Dimensions: 6.84 in x 1.93 in x 1.53 in
(17.4 cm x 4.9 cm x 3.9 cm)
Item Weight: 4.4 oz (125 gr)
Certification: CE Conformity, FCC/IC
Battery Type: (AAA) 2
Battery Life: 100+ hours
* NOTE: Low battery indicator is also in the
"Tool Connection" screen
Battery level
tool connection screen to the right of each
probe connected.
Caution: Take care not to lose the screws
when opening battery compartments
• Remove battery cover.
• Replace the old batteries with 2 new
(AAA) batteries.
• Replace the battery cover.
HUB2 / HUB4 / HUB6
WHP1: Wireless Hygrometer Probe
UEI HUB APP
GREEN
RED
when low battery.*
are displayed in the
HUB6
2 WHP1
2 WPP1
2 WPC1
8 Batteries
(4x AA, 4x AAA)
Carrying case
when probe is powered
