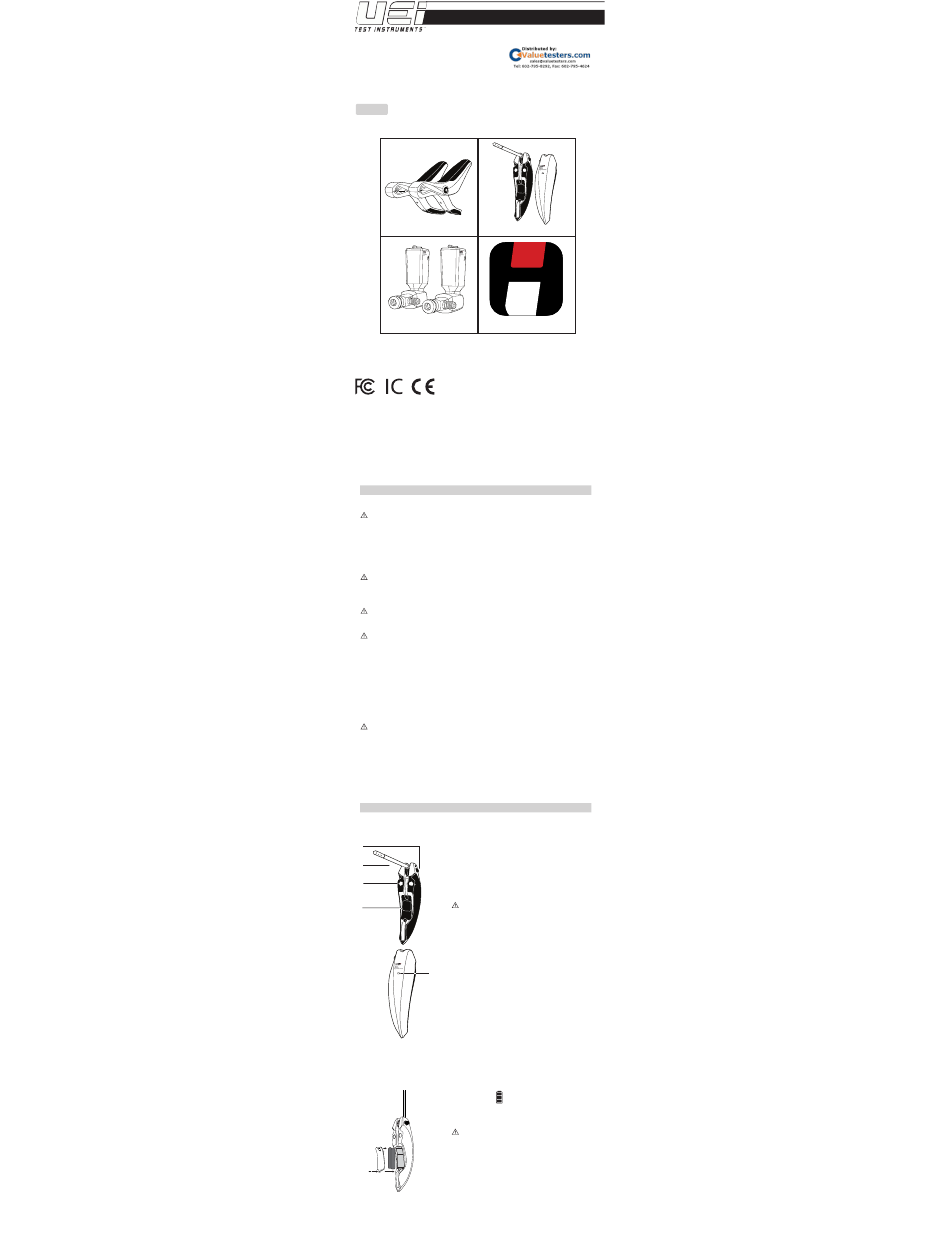

UEi HUB2 Instruction Manual

HUB2 / HUB4 / HUB6
Smart Temperature Split Kit
Smart Refrigerant Charging Kit
Smart Refrigerant Complete Kit
INSTRUCTION MANUAL
ENGLISH
WPC1: Pipe clamp sensor WHP1: Wireless Hygrometer Probe
WPP1: Wireless Pressure Probe UEI HUB APP
1-800-547-5740
www.ueitest.com • email: info@ueitest.com
HUB2 HUB4 HUB6
2 WPP1 2 WHP1
2 WHP1
2 WPC1 2 WPP1
4 Batteries (AAA)
4 Batteries (AA) 2 WPC1
Carrying case
Carrying case 8 Batteries
(4x AA, 4x AAA)
Carrying case
IMPORTANT SAFETY WARNINGS
WARNING
Read entire safety notes section regarding potential hazard and proper
instructions before using these probes. In this manual the word "WARNING"
is used to indicate conditions or actions that may pose physical hazards to
the user. The word "CAUTION" is used to indicate conditions or actions that
may damage these instrument.
WARNING
To ensure safe operation and service of these probes, follow these instructions.
Failure to observe these warnings can result in severe injury or death.
WARNING
Maximum over pressure is: 1000 PSI.
WARNING
• Do not open these probes to replace batteries while the probes
are connected to an HVACR or other mechanical system.
• To avoid false readings, replace batteries if a low battery indicator appears.
• Do not use this these probes if they appear damaged.
• Always adhere to national and local safety codes. Use proper personal
protective equipment (PPE).
WARNING
These probes are designed for trade professionals who are familiar with the
hazards of their trade. Observe all recommended safety procedures that
include proper lockout utilization and use of personal protective equipment
that includes safety glasses, gloves and flame resistant clothing.

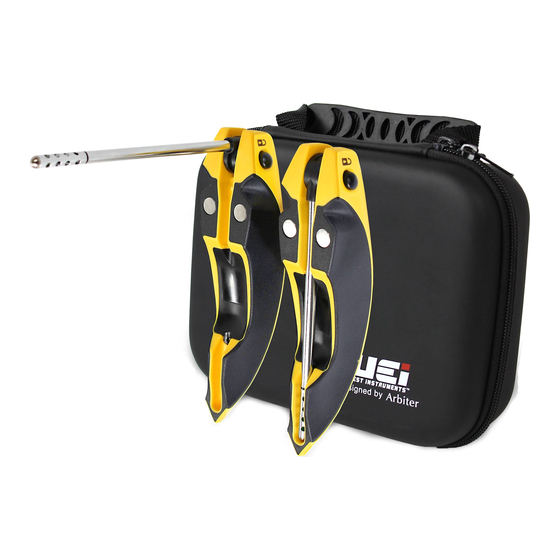

WHP1 OVERVIEW
1. Hygrometer (WHP1): Hub 2 & Hub 6
A. A. Lock Button: Press to open or close probe
B. 1/4" diameter probe.
C. Magnetic Mount
B.
D. Battery Cover.
E. Light: Blinks GREEN when probe is powered
C.
on. Blinks RED when low battery.*
D.
CAUTION: Press down Lock Button to
release probe. Failure to do so may break probe
and is not covered under warranty.
GENERAL SPECIFICATIONS
Operating Temperature: 41°F to 140°F (5°C to 60°C)
Storage Temperature: 14°F to 140°F (-10°C to 60°C)
Operating Humidity: 20% RH to 80% RH
E.
Recommended: Do Not use longer than 60
hours out of range
Dimensions: 6.84 in x 1.93 in x 1.53 in
(17.4 cm x 4.9 cm x 3.9 cm)
Item Weight: 4.4 oz (125 gr)
Certification: CE Conformity, FCC/IC
Battery Type: (AAA) 2
Battery Life: 100+ hours
* NOTE: Low battery indicator is also in the
"Tool Connection" screen
Battery level are displayed in the
tool connection screen to the right of each
probe connected.
Caution: Take care not to lose the screws
when opening battery compartments
• Remove battery cover.
• Replace the old batteries with 2 new
(AAA) batteries.
• Replace the battery cover.
