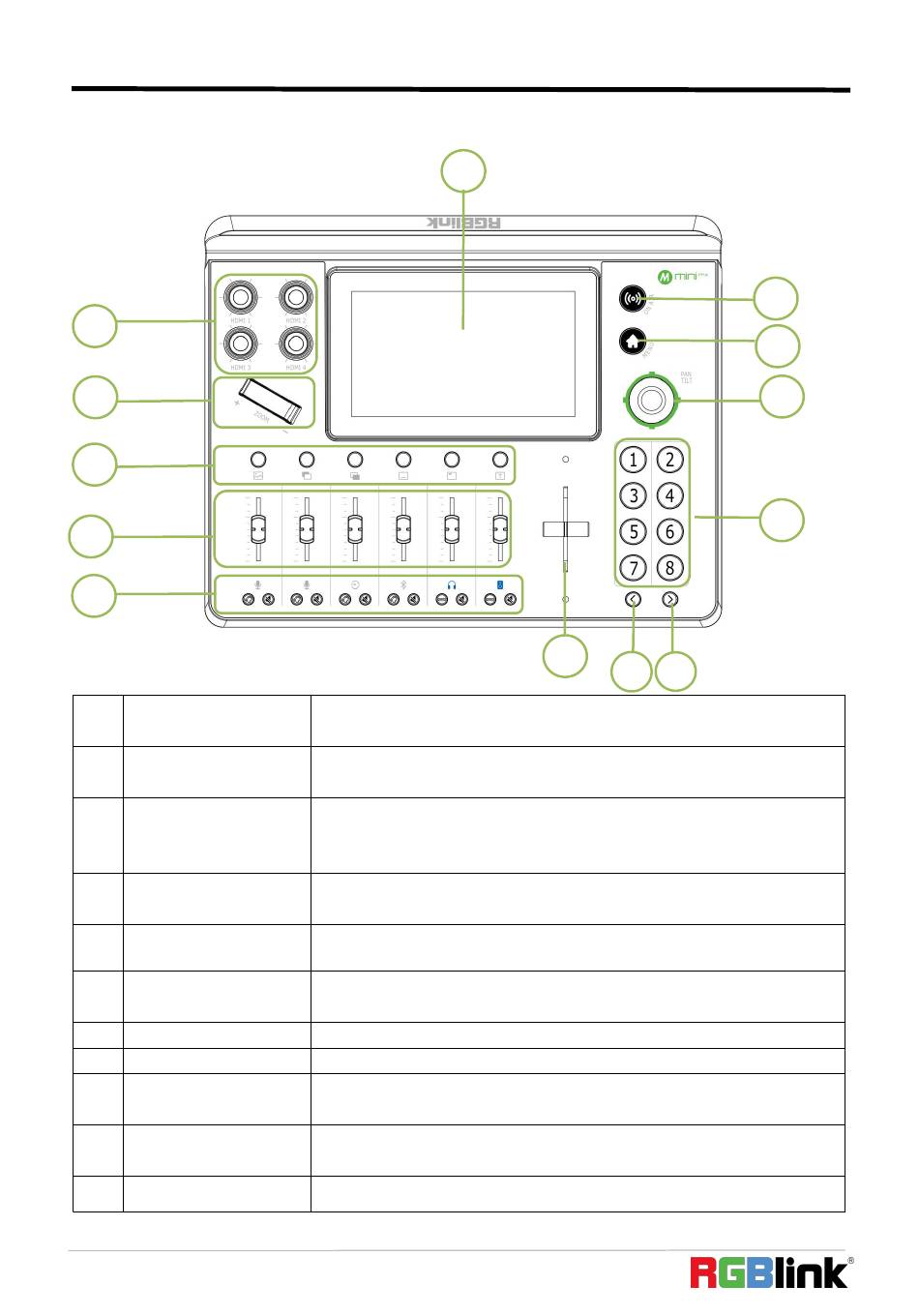

1.2.2 Front Panel

1
2
3
4
5
HDMI IN 1-4 Audio Volume
1
Control Knob
2
Adjuster
3
Layer Selection Button
4
Channel Fader
5
Monitoring & Mute Button
6
T-Bar
7
Page UP
8
Page Down
9
Buttons 1-8
10
5-Direction Joystick
11
MENU
© Xiamen RGBlink Science & Technology Co., Ltd.
| support@rgblink.com | www.rgblink.com
Ph: +86 592 5771197
13
● Embedded audio volume adjustment of HDMI 1-4 inputs. User can check audio status via touch screen.
● Knob color adjustable.
● Zoom in/out when PTZ control is enabled.
● Adjust size of sub-picture when it is under position and scale adjustment.
● Indicate BG, Layer A, Layer B, STILL, LOGO and TEXT from left to right.
● Light turns blue in PVW. Light flashes in green when selected.
● Button color adjustable.
● To control audio volume level for each channel.
● Indicate MIC1/MIC2/LINE IN/Bluetooth/PREVIEW/PROGRAM from left to right.
● Click monitoring button to switch audio to monitoring port.
● Click mute button to stop adding audio to PGM if it turns red; click mute button again to add audio to
PGM if it turns green then.
● PVW and PGM views can be transitioned manually by pushing the T-bar bidirectionally from the top to
the bottom or from the bottom to the top.
● Press to return to the previous page.
● Press to enter the next page.
● Click to choose enter interface of 8 selections in Main Menu correspondingly.
● Button color adjustable.
● Set pan, tilt and zoom for PTZ camera.
● Adjust position of sub-picture when it is under position and scale adjustment.
● Press to return to the previous menu; press and hold to return to the main menu.
● Button color adjustable.
6
8
7
12
11
10
9
9
