Interface Panel - RGBlink mini-mx User Manual

12 ON AIR
13 5.5-inch Touch Screen

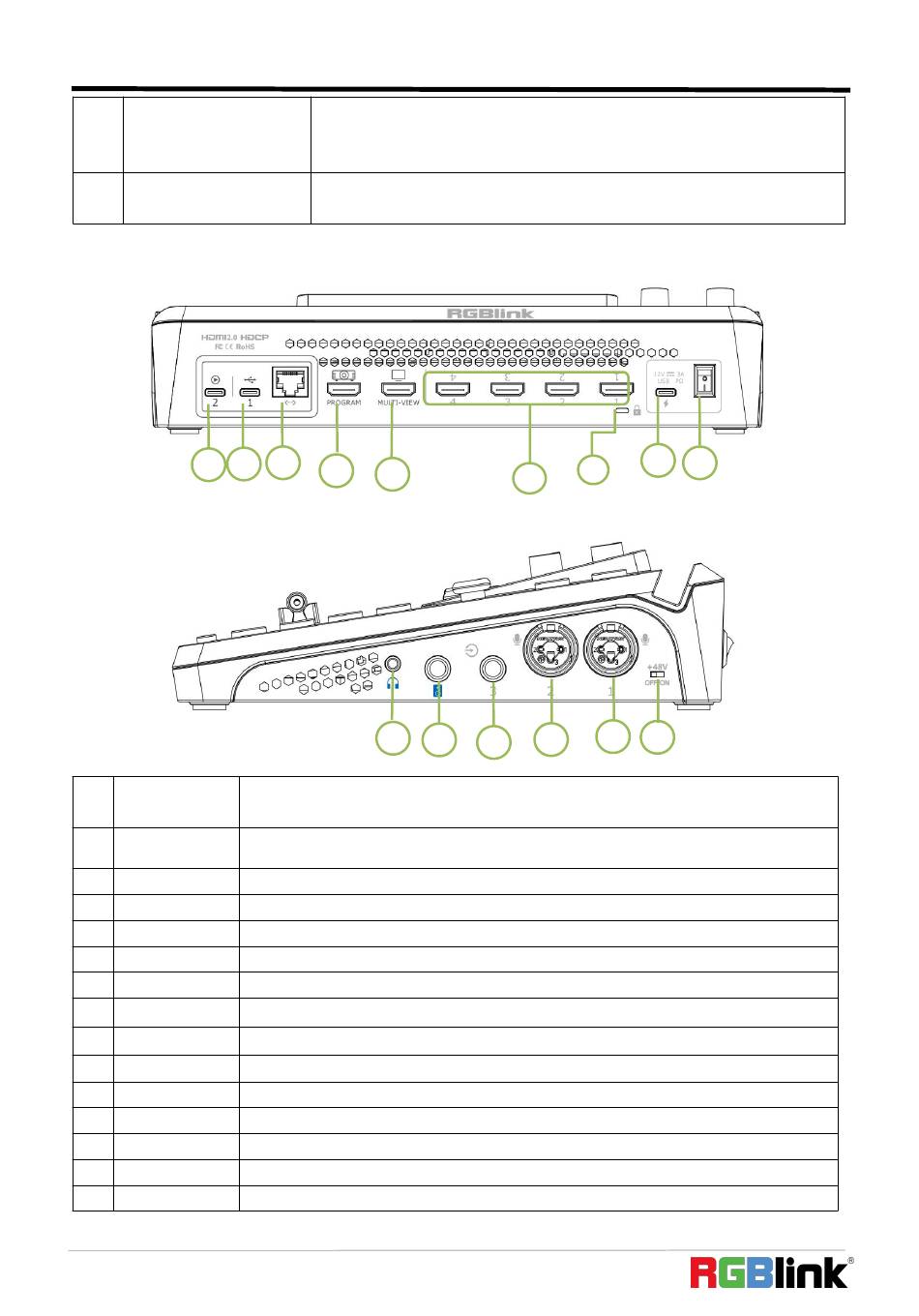

1.2.3 Interface Panel

1 2
1 UVC (WEBCAM)
2 USB-C
3 LAN
4 HDMI-A (PROGRAM)
5 HDMI-A (Multi-VIEW)
6 1-4 HDMI IN
7 Locking Hole
Power Socket
8
Power Switch
9
3.5mm mini-Jack
10
11 6.35mm TRS Jack
12 LINE IN
13 MIC 2 IN
14 MIC 1 IN
15 +48V Dip Switch
© Xiamen RGBlink Science & Technology Co., Ltd.
| support@rgblink.com | www.rgblink.com
Ph: +86 592 5771197
● Click to start or end streaming.
● Streaming status can be checked on LCD screen through indicator light: steady red shows ON AIR;
flashing red shows unstable network ON AIR; unlit shows streaming is finished.
● For menu operation.
● For multi-view window monitoring.
3
4
5
2
10
● Audio and video stream output port.
● Connect mini-mx to a laptop for instant recognition as webcam for streaming or video conference.
● Insert SSD or U disk to USB 3.0 recording output interface for recording.
● Insert a U disk to import audio, video and pictures.
● Gigabit network port for web streaming, PTZ control and firmware upgrade.
● PROGRAM output port.
● Multi-view output port. MULTI-VIEW / HDMI 1/2/3/4 / PROGRAM optional.
● 1-4 HDMI inputs to connect HDMI video sources, up to 4K resolution and downward compatible with all resolution.
● Use with T-lock to fix the device.
● PD 12V, 3A USB-C power input.
● Rocker switch to power on or off device.
● Audio Jack for PREVIEW or PROGRAM monitoring.
● Balanced 6.35mm XLR AUDIO OUT Jack.
● Balanced 6.35mm XLR Jack to connect to mobile phone, computer or audio console.
● XLR/TRS NEUTRIK MIC IN Port.
● XLR/TRS NEUTRIK MIC IN Port with 48V Phantom Power supported.
● 48V Phantom Power supported. (Defaults to OFF)
7
6
11 13
12
8
9
15
14
10
