3.3 Loading the Media

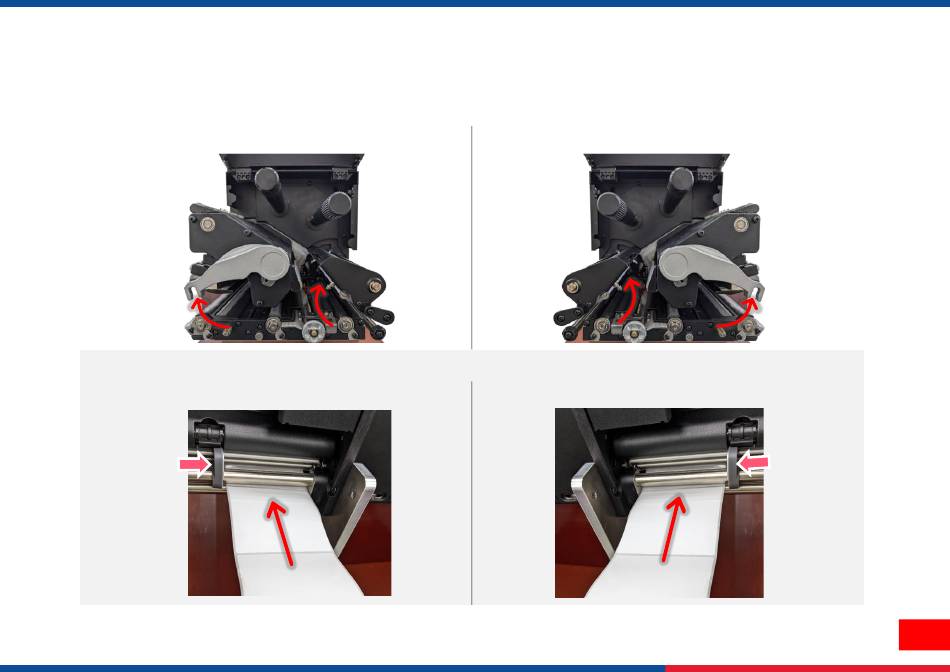

Open the media cover and printhead mechanism. Open the label holder cover by pressing the rear label release button.
1.
Left-hand model
Thread the leading edge of the label through the media guide bar pass media sensor, then place the leading edge onto the
2.
platen roller. Adjust the rear label guide to fit the label width.
Left-hand model
Rear label
guide
Right –hand model
Right –hand model
Rear label
guide
23
