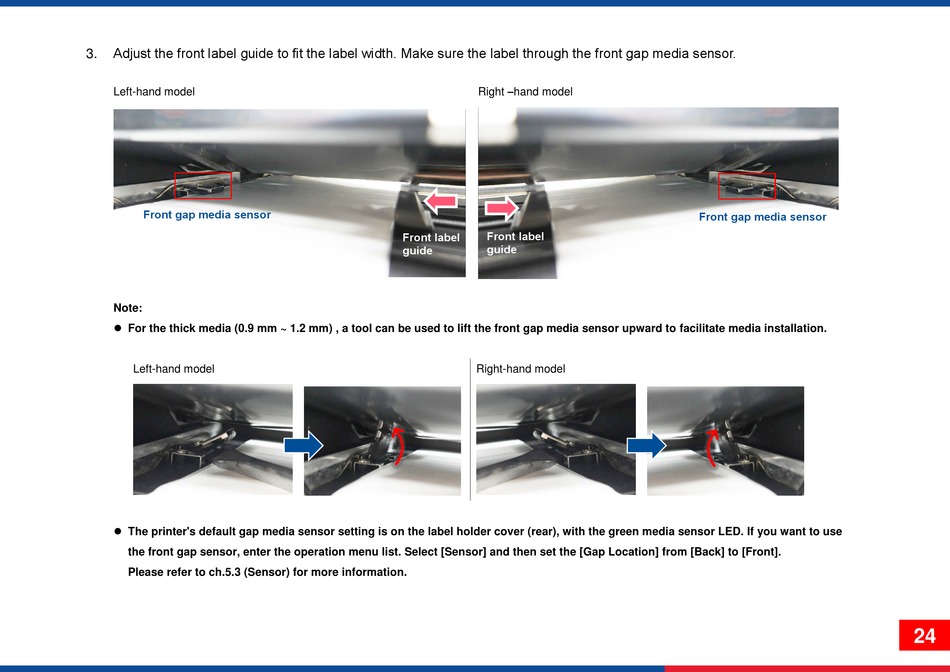

Adjust the front label guide to fit the label width. Make sure the label through the front gap media sensor.
3.
Left-hand model
Front gap media sensor
Note:
⚫ For the thick media (0.9 mm ~ 1.2 mm) , a tool can be used to lift the front gap media sensor upward to facilitate media installation.
Left-hand model
⚫ The printer's default gap media sensor setting is on the label holder cover (rear), with the green media sensor LED. If you want to use
the front gap sensor, enter the operation menu list. Select [Sensor] and then set the [Gap Location] from [Back] to [Front].
Please refer to ch.5.3 (Sensor) for more information.
Right –hand model
Front label
Front label
guide
guide
Right-hand model
Front gap media sensor
