3.2 Loading the Ribbon

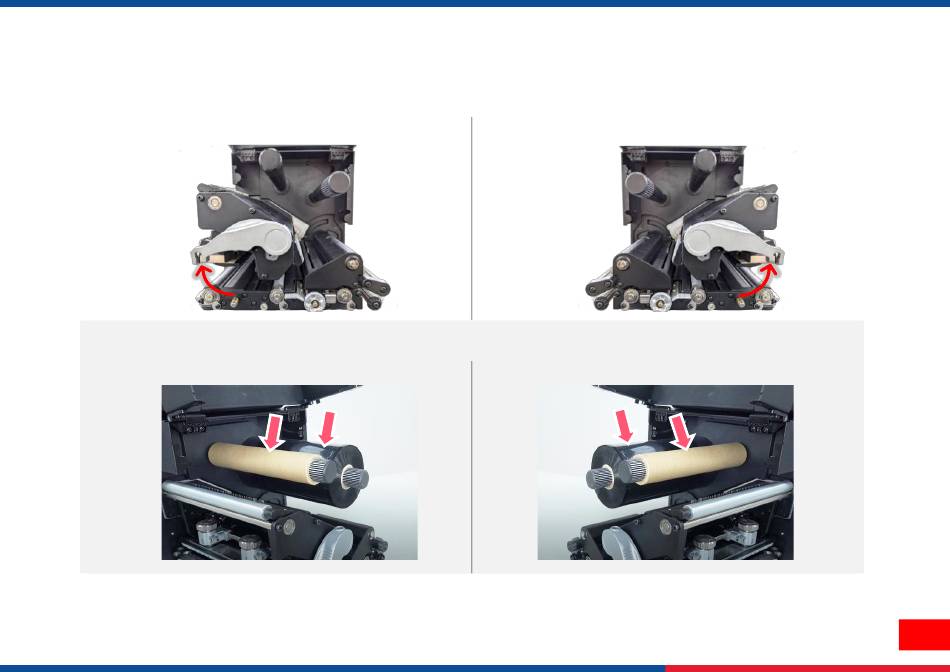

Open the media cover and the printhead mechanism.
1.
Left-hand model
Install the ribbon and paper core onto ribbon supply spindle and ribbon rewind spindle.
2.
Left-hand model
Right –hand model
Right –hand model
21
