Ribbon Tension Adjustment

The Ribbon Tension Adjustment can adjust the ribbon tension level.
Because the ribbon is aligned to the inward side of the printer mechanism, different ribbon or media widths may require different
ribbon tension to print correctly. Therefore, it may be necessary to adjust the ribbon tension using the adjustment to avoid ribbon
wrinkle and get the best print quality.

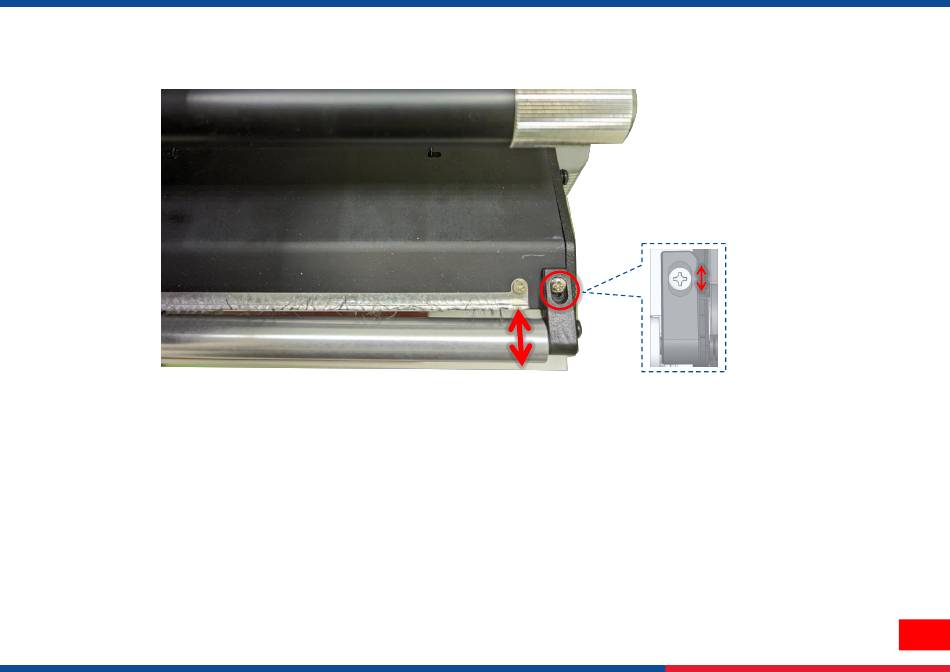

Loosen the ribbon tension screw to move the ribbon tension bar forward (Increasing tension) or backward (Decreasing tension) to
adjust the ribbon tension level. For scuffing issues, try decreasing the ribbon tension. After adjustment, tighten the screw.
