8.2 Printing Adjustments

Moveable Printhead Pressure Adjustment

The Moveable Printhead Pressure Adjustment has High/Low pressure adjustment.
Because the printer's paper alignment is located on the inboard side of the mechanism, different media widths require different
pressure to print correctly. Therefore adjustment of pressure knob may be required to get your best print quality.

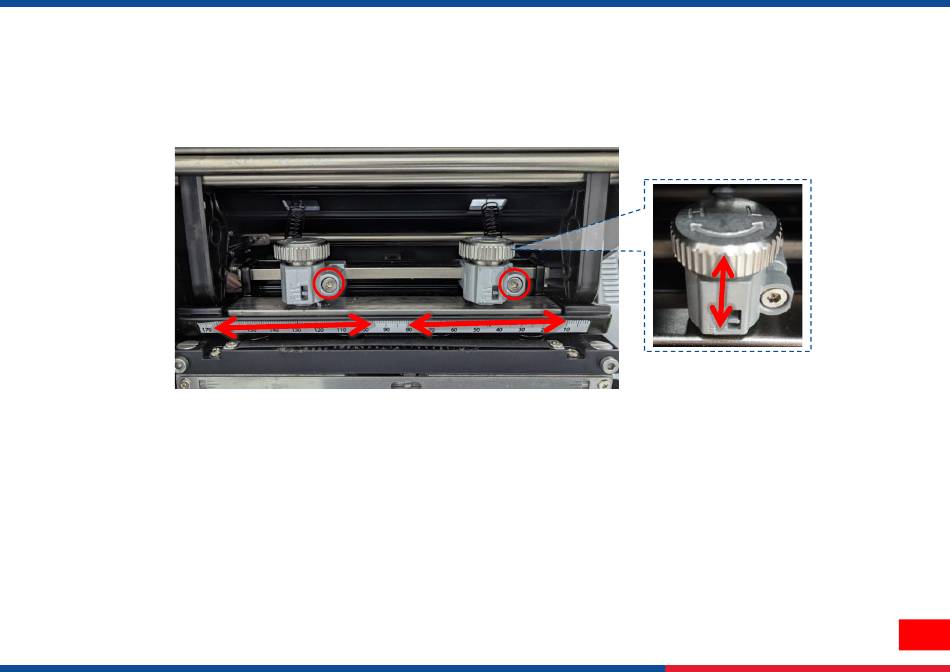

Turn the knob to L (Decreasing pressure) or H (Increasing pressure) to adjust the printhead pressure.
Use 3 mm hex key to loosen the knob to adjust the printhead pressure position.
Continue to adjust the printhead pressure or position and test print as necessary until the printed image is clear. After adjustment,
tighten the screw.
