Ribbon Peeling Angle Adjustment

The Ribbon Peeling Angle Adjustment can adjust the ribbon peeling angle with media.
When the print quality is not good, the peeling angle can be changed to get the best print quality.

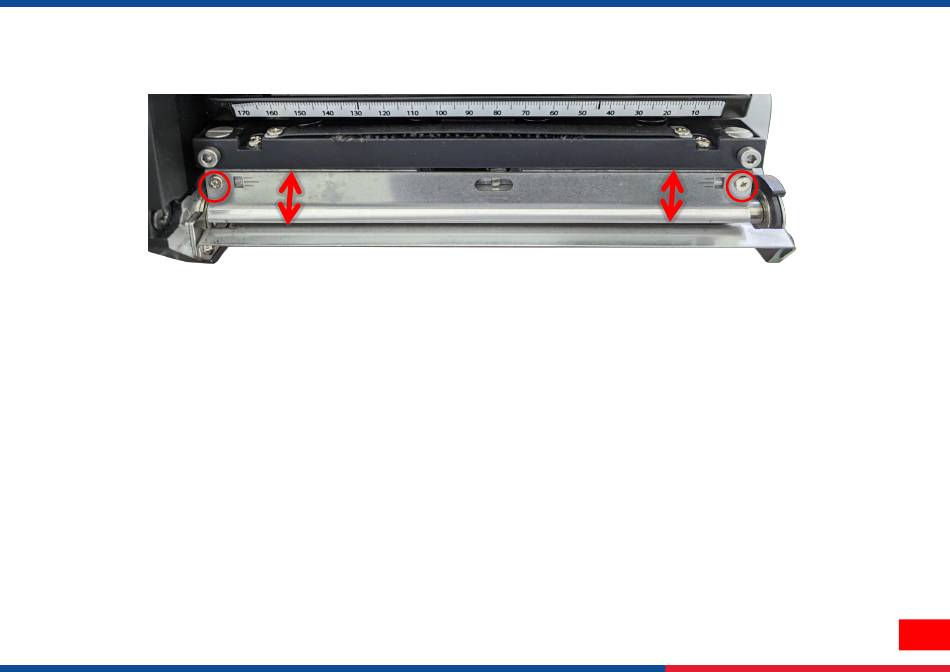

Loosen two ribbon peeling angle screws to move the ribbon peeling plate up (Increasing angle) or down (Decreasing angle) for
adjusting the ribbon peeling angle.
In general, reducing the ribbon peeling angle could be increased the printing intensity. After adjustment, tighten the screws.
