Tear Bar Angle Adjustment - TSC PEX-2000 Series User Manual

Tear Bar Angle Adjustment

The media tearing angle can be adjusted -18 ~ -3 degree by moving the Tear Bar.
When you want to change the angle of the label exit in peel off mode or tear off mode, you can adjust the tear bar to get the best
result.

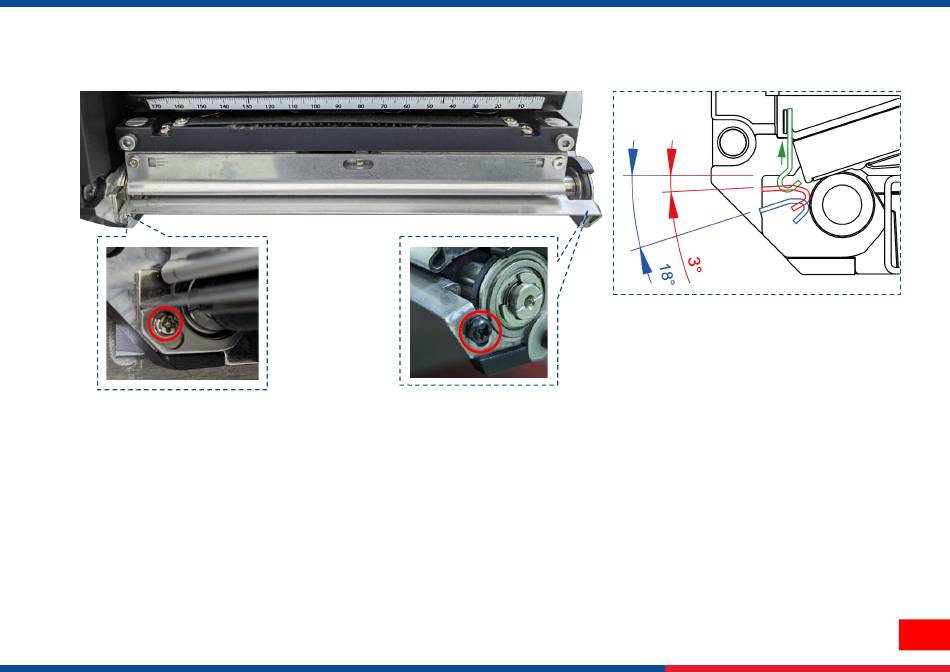

Loosen two screws on tear bar to move the tear bar up for increasing paper tearing ability. After adjustment, tighten the screws.
Move the ribbon peeling plate (as shown in green) up if necessary.
