Pent Play House Assembly Manual
Ready To Build - 6ft Range
Thank you for purchasing your Total Shed.
All of our sheds are made from only the finest selected timber which are
(Tanalised), specially pressure treated for a longer and lasting durable life
span to the elements.
Each shed is carefully packed and delivered on a pallet
ready to be assembled.
FEATURES NEW FLEXIBLE,
INTER-CHANGEABLE DESIGN
FOR YOUR INDIVIDUAL STYLE.
2 Persons Recommended for Assembling Shed
Tools Required:
DRILL DRIVER
HAMMER
PLEASE NOTE: Use extreme caution when using any tools. Always wear safety gear where
necessary. It is advisable that at least 2 or more persons assemble the shed for health and safety
purposes. We are not responsible for any injuries caused whilst assembling this shed.
Ready to Build Play House
Featured Build of the Pent 8x6ft Play House
Includes 6x6ft to 12x6ft Instructions
Pressure Treated Tanalised Timber for Longer Lasting Life!
HAND SAW
STANLEY KNIFE
Total Sheds
Unit 1 Park Lane,
West Bromwich, B21 8LE
Tel: 01902 636 529
Email: info@totalsheds.co.uk
Version 1.4
DELIVERED FLAT PACKED IN
EASY TO INSTALL SECTIONS
www.totalsheds.co.uk

Advertisement

loading
Need help?

Need help?

Do you have a question about the Pent Play House 8x6ft and is the answer not in the manual?

Questions and answers

Related Manuals for total sheds Pent Play House 8x6ft

Summary of Contents for total sheds Pent Play House 8x6ft

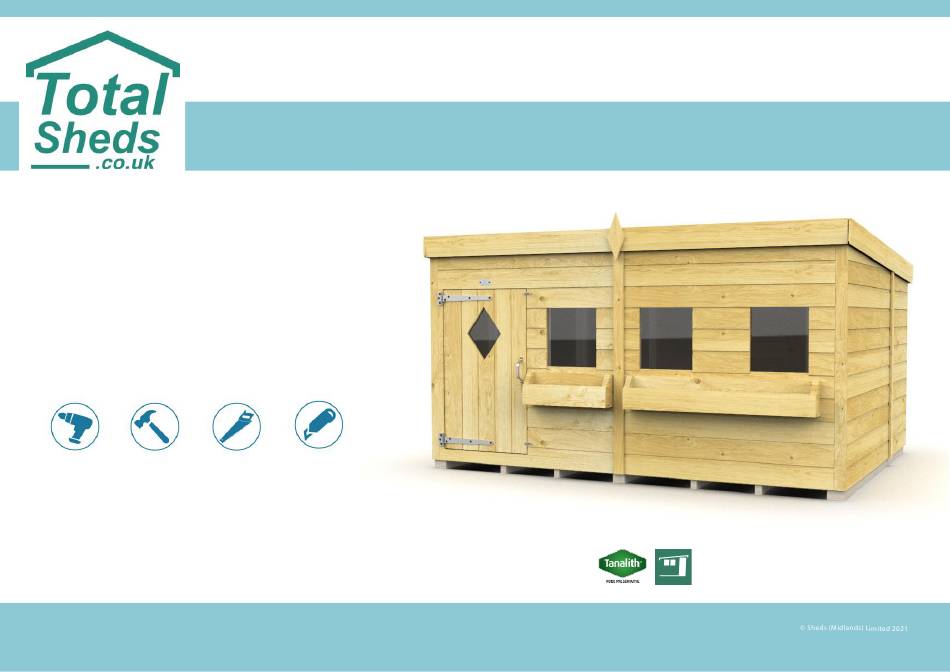

  • Page 1 Pent Play House Assembly Manual Pressure Treated Tanalised Timber for Longer Lasting Life! Ready To Build - 6ft Range Total Sheds Unit 1 Park Lane, West Bromwich, B21 8LE Tel: 01902 636 529 Email: info@totalsheds.co.uk Version 1.4 Thank you for purchasing your Total Shed.

  • Page 2: Pre-Assembly

    PRE-ASSEMBLY STEP • 1 Unpacking your Parts Recommended: Paint shed in an oil based treatment to Unpack all of the components and check that prevent water ingress into you have all the parts required. Please use the checklist on previous page. the timber.
  • Page 3 STEP • 2 STEP • 3 IMPORTANT FIRST 2ft SIDE PANEL All Play Houses with 2 Place Blank Panel againts or More Floor Pannels far corner of the Play have the smallest Floor House floor as shown. Panel on the Right End. (2ft wide Blank Panel) As shown on this diagram.

  • Page 4: Rear Panels

    STEP • 4 STEP • 5 4ft SIDE PANEL REAR PANELS Place Blank Panel againt the Fix 4ft Wide Blank other corner of the Kennel Sections. Create a Corner floor as shown. for Balance. (4ft wide blank panel) REAR PANELS SIDE PANEL: 4ft 4a.

  • Page 5: Right Side Panel

    STEP • 6 STEP • 7 RIGHT SIDE PANEL RIGHT SIDE PANEL Now attach Right Side Now attach Right Side Panel (2ft wide section) Panel (4ft wide section) RIGHT SIDE PANEL 2ft RIGHT SIDE PANEL 2ft 6a. Place the 2ft Side Panel as shown below. 6b.
  • Page 6 STEP • 8 STEP • 9 FRONT WINDOW FRONT DOOR PANEL PANEL Attach Front Attach Door Panel (4ft Door Panel) Window Panel (4ft Window Panel) FRONT DOOR PANEL WINDOW PANEL 8a. Use the areas below as reference 8b. Place the Door Panel as shown and fix in place 9a.
  • Page 7 STEP • 10 STEP • 11 PENT FRONT TOPS SIDE PENT ANGLE TOPS Place the front tops on Now attach all the Side to the Play House Pent Angle Tops. SIDE PENT ANGLE TOPS FRONT PENT TOPS 11a. Place the Pent Front Top sections in place. Use the corrisponding sized tops with the 10a.
  • Page 8 STEP • 12 STEP • 13 SIDE & CORNER STRIPS PENT ROOF PANELS Hide the panel edges. Place First roof section. Cover the framework & Repeat for all Roof Panels seams. (2ft & 4ft) SIDE & CORNER STRIPS PENT ROOF PANELS 12a.
  • Page 9 STEP • 14 STEP • 15 ATTACH THE ROOF FELT CUTTING THE ROOF Use the felt lengths FELT provided. Use the felt table to cut your felt to the correct size CUTTING THE ROOF FELT ROOF FELT 15a. Apply the roof felt as shown. (The Felt will come as a Full roll, this will need to be cut).
  • Page 10 Create the Final Roof Create the Final Roof Edges. Edges. Final steps finishing off the Play House Final steps finishing off the roof. Total Sheds Unit 1 Park Lane, West Bromwich, B21 8LE Tel: 01902 636 529 FELT STRIPS FINISHED Email: info@totalsheds.co.uk...
