Apex Shed Assembly Manual
Pressure Treated Tanalised Timber for Longer Lasting Life!
Ready To Build - 8ft Range
Thank you for purchasing your Total Shed.
All of our sheds are made from only the finest selected timber which are
(Tanalised), specially pressure treated for a longer and lasting durable life
span to the elements.
Each shed is carefully packed and delivered on a pallet
ready to be assembled.
FEATURES NEW FLEXIBLE,
INTER-CHANGEABLE DESIGN
FOR YOUR INDIVIDUAL STYLE.
2 Persons Recommended for Assembling Shed
Tools Required:
DRILL DRIVER
HAMMER
HAND SAW
PLEASE NOTE: Use extreme caution when using any tools. Always wear safety gear where
necessary. It is advisable that at least 2 or more persons assemble the shed for health and safety
purposes. We are not responsible for any injuries caused whilst assembling this shed.
Ready to Build Shed

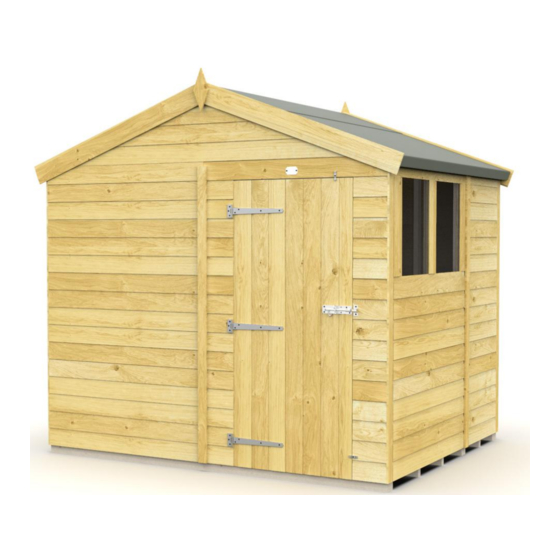

Featured Build of the Apex 8ft x 6ft Shed
Includes 8x4ft to 8x20ft Instructions
STANLEY KNIFE
Total Sheds
Unit 1 Park Lane,
West Bromwich, B21 8LE
Tel: 01902 636 529
Email: info@totalsheds.co.uk
Version 1.4
DELIVERED FLAT PACKED IN
EASY TO INSTALL SECTIONS
www.totalsheds.co.uk

Advertisement

loading
Need help?

Need help?

Do you have a question about the Apex Shed 8ft x 6ft and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for total sheds Apex Shed 8ft x 6ft

Summary of Contents for total sheds Apex Shed 8ft x 6ft

  • Page 1 Apex Shed Assembly Manual Pressure Treated Tanalised Timber for Longer Lasting Life! Ready To Build - 8ft Range Total Sheds Unit 1 Park Lane, West Bromwich, B21 8LE Tel: 01902 636 529 Email: info@totalsheds.co.uk Version 1.4 Thank you for purchasing your Total Shed.

  • Page 2: Pre-Assembly

    PRE-ASSEMBLY PRE-ASSEMBLY 4ft & 4ft FLOOR PANEL Unpacking your Parts Turn all floor panels Unpack all of the components and check that you have all the parts required. Please use the upside down so frame checklist on previous page. posts are exposed. Carefully dispose of the delivery pallet and any excess timber.
  • Page 3 STEP • 1 STEP • 2 IMPORTANT Recommended: Paint shed in an oil based treatment to All Sheds With 4 or More prevent water ingress into Floor Pannels have the the timber. Also silicon your smallest Floor Panel windows (Must silicon inside & outside) to prevent rain water located at the back.
  • Page 4 STEP • 3 STEP • 4 4ft REAR PANEL 2ft LEFT SIDE PANEL Place first panel againts Fix 4ft Wide Blank far left of shed floor Sections. Create a Corner as shown. for Balance. (2ft wide blank panel) SIDE & REAR PANELS 2FT BACK SIDE PANEL 3a.
  • Page 5 STEP • 5 STEP • 6 4ft REAR PANEL 4ft LEFT PANEL Place Blank Panel againts Fix 4ft Wide Blank Section the back of the Shed floor Left Panel 4ft Section as shown. (4ft wide blank (This panel might be 3ft depending on the shed ) panel) 3ft BACK PANEL...
  • Page 6 STEP • 7 STEP • 8 2ft RIGHT SIDE PANEL RIGHT WINDOW PANEL Fix 2ft Wide Blank Section Attach Right Side Panel 2ft (Right) Window Panel (4ft Window Panel) 4ft RIGHT WINDOW PANEL 2ft RIGHT PANEL 7a. Place the 2ft Blank Panel against the corner of the back right of the 2ft floor as shown 8b.
  • Page 7 STEP • 9 STEP • 10 FRONT 4ft PANEL FRONT 4ft DOOR Attach 4ft Front Panel PANEL Attach Door Panel (The 4ft Door panel can be placed where ever a 4ft blank panel is located 4ft FRONT PANEL 4ft DOOR PANEL 9a.
  • Page 8 STEP • 11 STEP •12 SIDE & CORNER STRIPS APEX ROOF GABLE ENDS Hide the panel edges. (Set Frame for roof sections) Cover the framework & Now attach all the 8ft Apex Gable Ends Tand the 8ft seams. Apex Truss 8ft APEX ROOF GABLE ENDS PENT FRONT TOPS 11a.
  • Page 9 Repeat placing the roof panels corresponding to the panel size for the Floor Example: Front an Rear Apex Shed 8ft x 6ft 13b. Screw the Roof Panel down by screwing The 8 by 6 needs 5 sheets of felt. All at 7ft each.
  • Page 10 STEP • 15 STEP • 16 ATTACH THE ROOF FELT ATTACH FELT STRIPS Use the felt lengths Create the Final Roof provided. Edges. Final steps finishing off the roof. FELT STRIPS ROOF FELT 15a. Apply the roof felt as shown. Apply lower levels first to create 16a.
