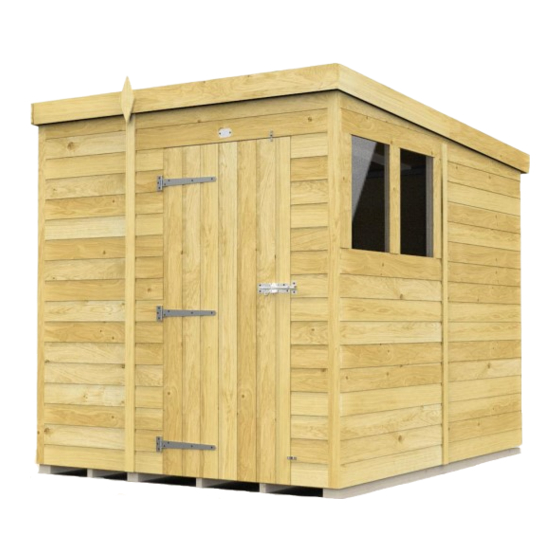

total sheds Pent Shed Assembly Manual

Hide thumbs Also See for Pent Shed:

Advertisement

Quick Links

Download this manual
Pent Shed Assembly Manual
Pressure Treated Tanalised Timber for Longer Lasting Life!
Ready to Build - 6ft Range
SHEDS • SUMMER HOUSES • KENNELS
Thank you for purchasing your Total Shed.
All of our sheds are made from only the nest selected
timber which are (Tanalised), specially pressure treated
for a longer and lasting durable life span to the elements.
Each shed is carefully packed and delivered
on a pallet ready to be assembled.
FEATURES NEW FLEXIBLE,
INTER-CHANGEABLE DESIGN
FOR YOUR INDIVIDUAL STYLE.
2 Persons Recommended for Assembling Shed
Tools Required to Build:
DRILL
HAMMER
DRIVER
PLEASE NOTE: Use extreme caution when using any tools. Always wear safety gear where necessary. It is advisable
that at least 2 or more persons assemble the shed for health and safety purposes. We are not responsible for any
injuries caused whilst assembling this shed.
Ready to Build Shed
Includes 4x6ft to 20x6ft Instructions
DELIVERED FLAT PACKED IN EASY
TO INSTALL SECTIONS...
STANLEY
KNIFE
Featured Build of the Pent 10x6ft Shed
TOTAL SHEDS
PRESSURE TREATED TIMBER
Version 1.1
Total Sheds
28 Charles Street,
Willenhall, WV13 1HG
Tel: 01902 636 529
Email: info@totalsheds.co.uk
© Sheds (Midlands) Limited 2021
www.totalsheds.co.uk

Advertisement

loading
Need help?

Need help?

Do you have a question about the Pent Shed and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for total sheds Pent Shed

Summary of Contents for total sheds Pent Shed

  • Page 1 Pent Shed Assembly Manual TOTAL SHEDS PRESSURE TREATED TIMBER Pressure Treated Tanalised Timber for Longer Lasting Life! Version 1.1 Ready to Build - 6ft Range Total Sheds 28 Charles Street, Willenhall, WV13 1HG Tel: 01902 636 529 SHEDS • SUMMER HOUSES • KENNELS Email: info@totalsheds.co.uk...
  • Page 2 Check List: See your shed size for details. 4x6ft PENT SHED 6x6ft PENT SHED Your delivery should contain the following: 4x6ft Pack 6x6ft Pack FLEXIBLE, INTER-CHANGEABLE x1 Floor (4x6ft) Floors 1x (4x6ft) 1x (2x6ft) x1 Pent Roof Section (4x6ft) Pent Roof Sections...
  • Page 3 14x6ft PENT SHED 16x6ft PENT SHED 14x6ft Pack 16x6ft Pack Floors 3x (4x6ft) 1x (2x6ft) x4 Floors (4x6ft) x1 Fixing Kit 3x (4x6ft) 1x (2x6ft) Pent Roof Sections x4 Pent Roof Section (4x6ft) (found in the polytube pack) Pent Roof Tops...

  • Page 4: Pre-Assembly

    Page 4 STEP • 1 PRE ASSEMBLY Diagrams based on TOTAL SHEDS 10x6ft Pent Shed PRESSURE TREATED TIMBER Unpacking your parts: Recommended: Paint shed in an oil based treatment to prevent water ingress into the timber. Also silicon your Unpack all of the components and check that you windows (Must silicon inside &...
  • Page 5 Page 5 STEP • 2 STEP • 3 FLOOR & BLOCK ENDS 2ft RIGHT SIDE PANEL Add the Floor Block Ends. Attach 2ft Wide Section (Heavy Duty Posts 6ft) Side Wall 2ft Blank Section Begin with right side of shed IMPORTANT oor with a blank 2ft panel.
  • Page 6 Page 6 STEP • 4 STEP • 5 SIDE & REAR PANELS 4ft RIGHT SIDE PANEL Fix 4ft Wide Blank Sections Place blank 4ft panel against right of shed oor as shown. Create Corner for Balance. (4ft wide blank panel) Repeat Steps with 4ft Blank Panels as shown below: 4a.
  • Page 7 Page 7 STEP • 6 STEP • 7 2ft REAR PANELS 2ft LEFT SIDE PANEL Fix 2ft Wide Blank Section Attach Left 2ft Section Last Back Panel 2ft Section Side Wall 2ft Blank Section NOTICE: 6a. Place the 2ft panel side against the reamining 4ft back 7a.

  • Page 8: Left Side Panel

    Page 8 STEP • 8 STEP • 9 LEFT SIDE PANEL FRONT DOOR PANEL Now attach Left Side Panel Attach nal Front Panel (4ft wide left blank section) (4ft Panel: Single or Double Door) 8a. Place the 4ft left side panel as shown below. 9a.
  • Page 9 Page 9 STEP • 10 STEP • 11 WINDOW PANELS 2ft FRONT PANEL Attach Window Panels Place the Final 2ft Panel (4ft Window Panels) For 6ft, 10ft, 14ft & 18ft Sheds Repeat Steps with 4ft 11a. Place the final front panel as shown below to complete Window Panels as below: the outer framework.
  • Page 10 PENT FRONT TOPS Now attach all the Side Tops Place the front tops of shed. of Pent Shed End Panels. Use 2ft Section for below models. 6x6ft • 6x10ft • 6x14ft • 6x18ft 12a. Place the right and left Pent Angle Tops as shown below.
  • Page 11 Page 11 STEP • 14 STEP • 15 SIDE & CORNER STRIPS PENT ROOF PANELS Hide the panel edges. Place 4x6ft roof section. Cover the framework & seams. Repeat for larger models as shown. Repeat Steps for 4x6ft Roof 14a. Use all the side/corner strips to finish off the shed, Panels as shown below: by covering any exposed framework and the panel 15a.
  • Page 12 NOW DRILL SHED TO THE FLOOR Make nal adjustments STEP • 16 if required. Page 12 STEP • 17 2ft ROOF SECTION Place 2x6ft roof section last. ATTACH THE ROOF FELT 6x6ft • 6x10ft • 6x14ft • 6x18ft Use the felt lengths provided. 16a.
  • Page 13 Final steps finishing off the roof. 19a. Using the provided Diamond Caps you can create a nice nishing touch to the Pent Shed. This also covers the seam bewteen the Felt Strips and 18a. Using the felt strips provided cover the edges of the roofs hides any visible joints.
