Apex Summer House Assembly Manual
Pressure Treated Tanalised Timber for Longer Lasting Life!
Ready To Build - 4ft Range
Thank you for purchasing your Total Shed.
All of our sheds are made from only the finest selected timber which are
(Tanalised), specially pressure treated for a longer and lasting durable life
span to the elements.
Each shed is carefully packed and delivered on a pallet
ready to be assembled.
FEATURES NEW FLEXIBLE,
INTER-CHANGEABLE DESIGN
FOR YOUR INDIVIDUAL STYLE.
2 Persons Recommended for Assembling Shed
Tools Required:
DRILL DRIVER
HAMMER
HAND SAW
PLEASE NOTE: Use extreme caution when using any tools. Always wear safety gear where
necessary. It is advisable that at least 2 or more persons assemble the shed for health and safety
purposes. We are not responsible for any injuries caused whilst assembling this shed.
Ready to Build Shed

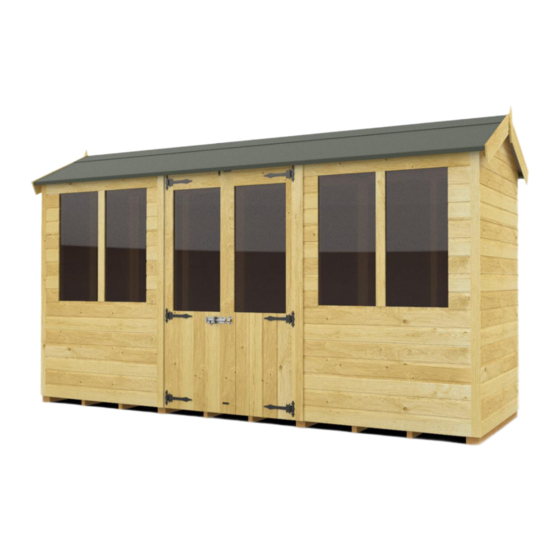

Featured Build of the Apex Summer House 12ft x 4ft
Includes 4x4ft to 4x20ft Instructions
STANLEY KNIFE
Total Sheds
Unit 1 Park Lane,
West Bromwich, B21 8LE
Tel: 01902 636 529
Email: info@totalsheds.co.uk
Version 1.4
DELIVERED FLAT PACKED IN
EASY TO INSTALL SECTIONS
www.totalsheds.co.uk
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for total sheds Apex Summer House 12ft x 4ft
Summary of Contents for total sheds Apex Summer House 12ft x 4ft
- Page 1 We are not responsible for any injuries caused whilst assembling this shed. Ready to Build Shed DELIVERED FLAT PACKED IN EASY TO INSTALL SECTIONS www.totalsheds.co.uk Featured Build of the Apex Summer House 12ft x 4ft Includes 4x4ft to 4x20ft Instructions...
-
Page 2: Pre-Assembly
PRE-ASSEMBLY STEP • 1 Unpacking your Parts Recommended: Paint shed in an oil based treatment to Unpack all of the components and check that prevent water ingress into you have all the parts required. Please use the checklist on previous page. the timber. - Page 3 STEP • 2 STEP • 3 IMPORTANT 4ft RIGHT PANEL All Sheds With 4 or Place first panel againts More Floor Pannels far right of shed floor have the smallest Floor as shown. Panel on the Ends. (4ft wide blank panel) As shown on this diagram.
-
Page 4: Back Panels
STEP • 4 STEP • 5 4ft LEFT PANEL BACK PANELS Fix 4ft Wide Left Blank Fix 4ft Wide Blank Section to Back Panel 4ft Sections. Create a Corner Section for Balance. 4ft LEFT PANEL SIDE PANELS 4a. Place a 4ft Blank Panel side as shown below. Repeat this step for all larger sheds. Please use 5a. -
Page 5: Door Panel
STEP • 6 STEP • 7 4ft FRONT WINDOW DOOR PANEL Attach Door Panel Next PANEL to the 4ft Fix the First 4ft Window Window Panel Panel 4FT WINDOW PANEL 4ft DOOR PANEL DID YOU KNOW? 7a. Use the RED areas below as reference 6a. - Page 6 STEP • 8 STEP • 9 4ft WINDOW PANEL APEX ROOF GABLE ENDS Attach The Next 4ft (Set Frame for roof sections) Window Panel Now attach all the 4ft Apex Gable Ends and the 4ft Apex Truss 4ft WINDOW PANEL 4ft APEX ROOF GABLE ENDS 8a.
- Page 7 STEP • 10 STEP •11 SIDE & CORNER STRIPS APEX ROOF PANELS Hide the panel edges. Place 4ft Roof section. Cover the framework & Repeat for all Roof Panels seams. Repeat this for all roof panels, making sure each panel is sitting on its corresponding sized front/back panel.
- Page 8 13b. Using a hammer, tack down the felt with the tacks provided in a Example: neat fashion. Apex Summer House 12ft x 4ft The 12 by 4 Shed needs 3 sheets of felt. All at 13ft each. Build Depth 4ft (x3)
- Page 9 DIAMOND CAPS ATTACH FELT STRIPS Add the Finishing Create the Final Roof Touch. (Optional) Edges. Final steps finishing off Total Sheds Unit 1 Park Lane, the roof. West Bromwich, B21 8LE Tel: 01902 636 529 Email: info@totalsheds.co.uk DIAMOND CAPS FELT STRIPS 14a.
