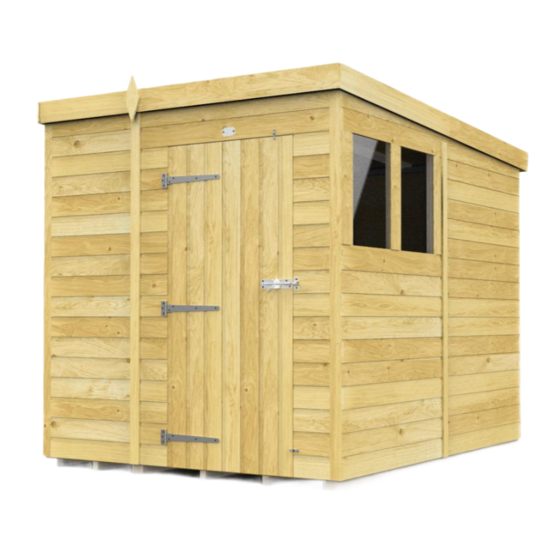

total sheds Pent Shed 6ft x 8ft Assembly Manual
  1. Manuals
  2. Brands
  3. total sheds Manuals
  4. Garden Houses
  5. Pent Shed 6ft x 8ft
  6. Assembly manual

total sheds Pent Shed 6ft x 8ft Assembly Manual

Hide thumbs

Advertisement

Quick Links

Download this manual

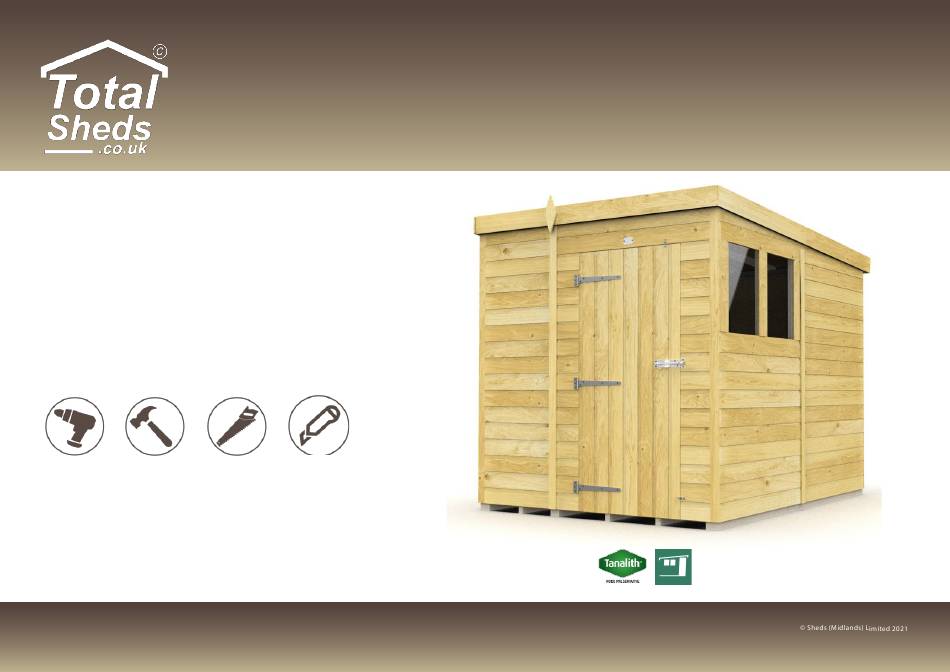

Pent Shed Assembly Manual
Pressure Treated Tanalised Timber for Longer Lasting Life!
Ready To Build - 8ft Range
Thank you for purchasing your Total Shed.
All of our sheds are made from only the finest selected timber which are
(Tanalised), specially pressure treated for a longer and lasting durable life
span to the elements.
Each shed is carefully packed and delivered on a pallet
ready to be assembled.
FEATURES NEW FLEXIBLE,
INTER-CHANGEABLE DESIGN
FOR YOUR INDIVIDUAL STYLE.
2 Persons Recommended for Assembling Shed
Tools Required:
DRILL DRIVER
HAMMER
HAND SAW
PLEASE NOTE: Use extreme caution when using any tools. Always wear safety gear where
necessary. It is advisable that at least 2 or more persons assemble the shed for health and safety
purposes. We are not responsible for any injuries caused whilst assembling this shed.
Ready to Build Shed
Featured Build of the Pent 6ft x 8ft Shed
Includes 4x8ft to 20x8ft Instructions
STANLEY KNIFE
Total Sheds
Unit 1 Park Lane,
West Bromwich, B21 8LE
Tel: 01902 636 529
Email: info@totalsheds.co.uk
Version 1.4
DELIVERED FLAT PACKED IN
EASY TO INSTALL SECTIONS
www.totalsheds.co.uk

Advertisement

loading
Need help?

Need help?

Do you have a question about the Pent Shed 6ft x 8ft and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for total sheds Pent Shed 6ft x 8ft

Summary of Contents for total sheds Pent Shed 6ft x 8ft

  • Page 1 Pent Shed Assembly Manual Pressure Treated Tanalised Timber for Longer Lasting Life! Ready To Build - 8ft Range Total Sheds Unit 1 Park Lane, West Bromwich, B21 8LE Tel: 01902 636 529 Email: info@totalsheds.co.uk Version 1.4 Thank you for purchasing your Total Shed.

  • Page 2: Pre-Assembly

    PRE-ASSEMBLY PRE-ASSEMBLY 4ft & 4ft FLOOR PANEL 4ft & 4ft ROOF PANEL Turn all floor panels Turn all roof panels upside down so frame upside down so frame posts are exposed. posts are exposed. ASSEMBLING THE 8FT FLOOR ASSEMBLING THE 8FT ROOF This process will be the same for any build this has a depth of 8ft.
  • Page 3 PRE-ASSEMBLY STEP • 1 Unpacking your Parts Recommended: Paint shed in an oil based treatment to Unpack all of the components and check that prevent water ingress into you have all the parts required. Please use the checklist on previous page. the timber.
  • Page 4 STEP • 2 STEP • 3 IMPORTANT 4ft LEFT SIDE PANEL All Sheds With 4 or Place first panel againts More Floor Pannels far left of shed floor have the smallest Floor as shown. Panel on the Right End. (4ft wide blank panel) As shown on this diagram.
  • Page 5 STEP • 4 STEP • 5 SIDE & REAR PANELS 4ft LEFT SIDE PANEL Fix 2ft and 4ft Wide Blank Fix 4ft Wide Blank Section Sections. Create a Corner Back Panel 4ft Section for Balance. NOTE: Place panel to sit firmly on the side Floor Block.
  • Page 6 STEP • 6 STEP • 7 4ft RIGHT SIDE PANEL 4ft WINDOW SIDE PANEL Fix 4ft Wide Blank Section Attach 4ft Window Section Side Panel 4ft (Right) to the Right Side Wall 4ft RIGHT SIDE PANEL 4ft WINDOW SIDE PANEL 6a.
  • Page 7 STEP • 8 STEP • 9 FRONT 2FT PANEL FRONT DOOR PANEL Attach Front Panel Attach Front (2ft Blank Panel) Door Panel (4ft Door Panel) FRONT 2FT BLANK PANEL 4ft DOOR PANEL DID YOU KNOW? 9a. Now place the 4ft Door Panel as 8a.
  • Page 8 STEP • 10 STEP •11 PENT FRONT TOPS SIDE PENT ANGLE TOPS Place the front tops of Now attach all the 8ft shed in relation to the Side Tops of Pent Shed fronts panels End Panels. (Over the top of both side panels). 8ft SIDE PENT ANGLE TOPS PENT FRONT TOPS 10a.
  • Page 9 STEP • 12 STEP •13 PENT ROOF PANELS SIDE & CORNER STRIPS Hide the panel edges. Place 4ft Roof section. Cover the framework & Repeat for all Roof Panels seams. (2ft) PENT ROOF PANELS SIDE & CORNER STRIPS 12a. Place the 4f Roof Panel in place. 12b.
  • Page 10 15b. Using a hammer, tack down the felt with the tacks provided in a neat fashion. Example: Pent Shed 6ft x 8ft The 6 by 8 needs 5 sheets of felt. All at 7ft each. Build Depth 4ft (x2)
  • Page 11 ATTACH FELT STRIPS DIAMOND CAPS Create the Final Roof Add the Finishing Edges. Final steps Touch. (Optional) finishing off the roof. Total Sheds Unit 1 Park Lane, West Bromwich, B21 8LE Tel: 01902 636 529 Email: info@totalsheds.co.uk FELT STRIPS DIAMOND CAPS 16a.
