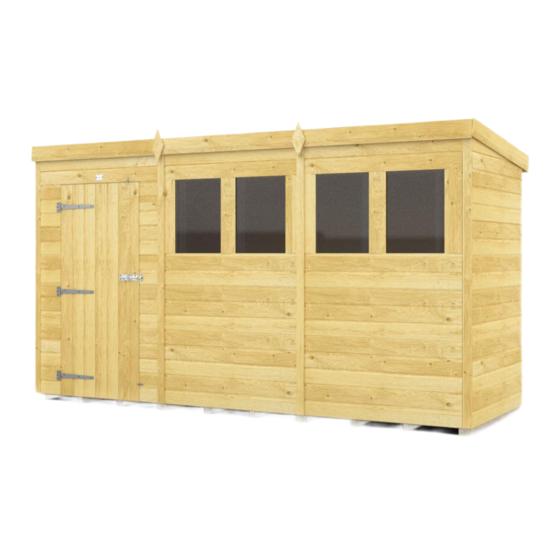

total sheds Pent Shed 12x4ft Assembly Manual

Hide thumbs

Advertisement

Quick Links

Download this manual

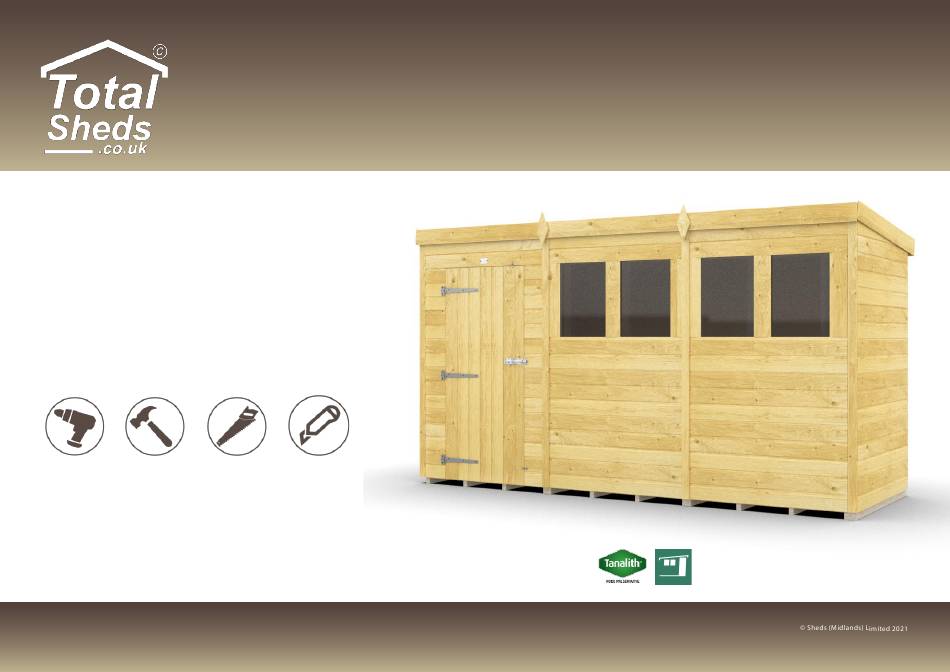

Pent Shed Assembly Manual
Pressure Treated Tanalised Timber for Longer Lasting Life!
Ready To Build - 4ft Range
Thank you for purchasing your Total Shed.
All of our sheds are made from only the finest selected timber which are
(Tanalised), specially pressure treated for a longer and lasting durable life
span to the elements.
Each shed is carefully packed and delivered on a pallet
ready to be assembled.
FEATURES NEW FLEXIBLE,
INTER-CHANGEABLE DESIGN
FOR YOUR INDIVIDUAL STYLE.
2 Persons Recommended for Assembling Shed
Tools Required:
DRILL DRIVER
HAMMER
HAND SAW
PLEASE NOTE: Use extreme caution when using any tools. Always wear safety gear where
necessary. It is advisable that at least 2 or more persons assemble the shed for health and safety
purposes. We are not responsible for any injuries caused whilst assembling this shed.
Ready to Build Shed
Featured Build of the Pent 12x4ft Shed
Includes 4x4ft to 20x4ft Instructions
STANLEY KNIFE
Total Sheds
Unit 1 Park Lane,
West Bromwich, B21 8LE
Tel: 01902 636 529
Email: info@totalsheds.co.uk
Version 1.4
DELIVERED FLAT PACKED IN
EASY TO INSTALL SECTIONS
www.totalsheds.co.uk

Advertisement

loading
Need help?

Need help?

Do you have a question about the Pent Shed 12x4ft and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for total sheds Pent Shed 12x4ft

Summary of Contents for total sheds Pent Shed 12x4ft

  • Page 1 Pent Shed Assembly Manual Pressure Treated Tanalised Timber for Longer Lasting Life! Ready To Build - 4ft Range Total Sheds Unit 1 Park Lane, West Bromwich, B21 8LE Tel: 01902 636 529 Email: info@totalsheds.co.uk Version 1.4 Thank you for purchasing your Total Shed.

  • Page 2: Pre-Assembly

    PRE-ASSEMBLY PRE-ASSEMBLY Unpacking your Parts Recommended: Paint shed in an oil based treatment to Unpack all of the components and check prevent water ingress into that you have all the parts required. the timber. Also silicon your Please use the checklist on previous page. windows (Must silicon inside &...
  • Page 3 STEP • 2 STEP • 3 IMPORTANT 4ft LEFT SIDE PANEL All Sheds With 3 or Place first panel againts More Floor Pannels far Left of shed floor have the smallest Floor as shown. Panel on the End. (4ft wide blank panel) As shown on this diagram.
  • Page 4 STEP • 4 STEP • 5 REAR PANEL REAR PANEL Place panel againts far the Fix 4ft Wide Blank back of shed floor Sections. Create a Corner as shown. for Balance. (4ft wide Blank Panel) 4ft REAR PANEL REAR PANEL 5a.
  • Page 5 STEP • 6 STEP • 7 4ft RIGHT SIDE PANEL FRONT DOOR PANEL Attach Door Front Panel Attach 4ft Blank Section (4ft Door Panel) to the Right Side Wall 4ft RIGHT SIDE PANEL FRONT DOOR PANEL 7a. Now place the 4ft Door Panel as shown. Fix together with screws to the Left side panel 6a.

  • Page 6: Attach Front Panel

    STEP • 8 STEP • 9 FRONT WINDOW FRONT WINDOW PANEL PANEL Attach First Front Panel Attach Front Panel (4ft Window Panel) (4ft Window Panel) 4ft FRONT WINDOW PANEL 4ft FRONT WINDOW PANEL 8a. Start back from the Right side placing the 4ft DO NOT screw the standing panels 9a.
  • Page 7 STEP • 10 STEP •11 PENT FRONT TOPS SIDE PENT ANGLE TOPS Place the front tops of Now attach all the Side shed. Tops of Pent Shed End Panels. (Over the top of both side panels). SIDE PENT ANGE TOPS PENT FRONT TOPS 10b.
  • Page 8 STEP • 12 STEP • 13 PENT ROOF PANELS SIDE & CORNER STRIPS Place First roof section. Hide the panel edges. Repeat for all Roof Panels Cover the framework & (2ft, 3ft, 4ft) seams. PENT ROOF PANELS SIDE & CORNER STRIPS 12a.
  • Page 9 STEP • 14 STEP •15 ATTACH THE ROOF FELT CUTTING THE ROOF Use the felt lengths FELT provided. Use the felt table to cut your felt to the correct size ROOF FELT CUTTING THE ROOF FELT 14a. Use the Stanley knife to cut your felt into the correct size. Using the table below, find the Build 15a.
  • Page 10 DIAMOND CAPS ATTACH FELT STRIPS Add the Finishing Create the Final Roof Touch. (Optional) Edges. Final steps finish- ing off the roof. Total Sheds Unit 1 Park Lane, West Bromwich, B21 8LE Tel: 01902 636 529 Email: info@totalsheds.co.uk FELT STRIPS FINISHED! 16a.
