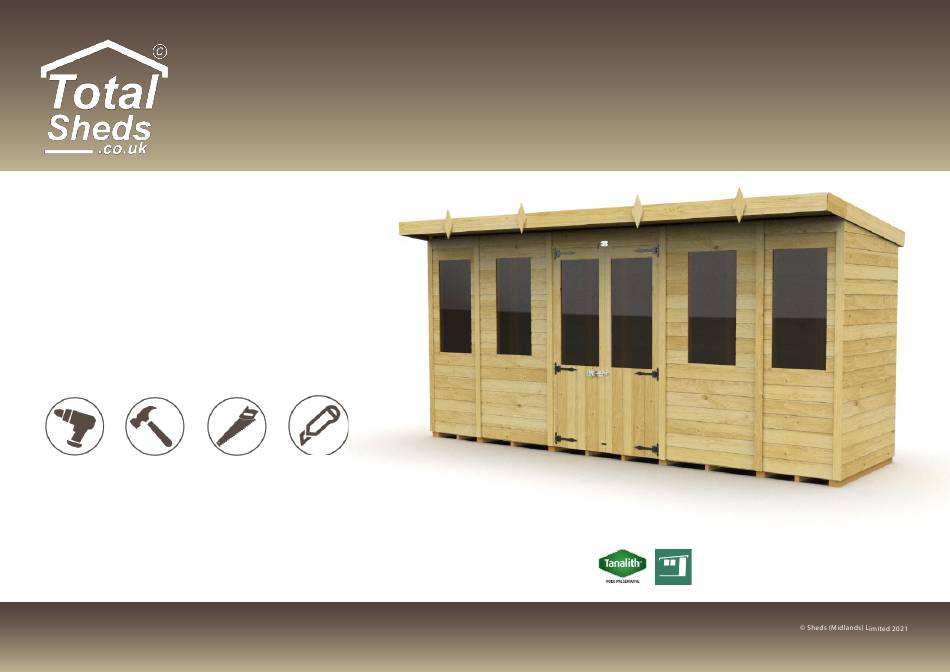

Pent Summer House Assembly Manual
Pressure Treated Tanalised Timber for Longer Lasting Life!
Ready To Build - 4ft Range
Thank you for purchasing your Total Shed.
All of our sheds are made from only the finest selected timber which are
(Tanalised), specially pressure treated for a longer and lasting durable life
span to the elements.
Each shed is carefully packed and delivered on a pallet
ready to be assembled.
FEATURES NEW FLEXIBLE,
INTER-CHANGEABLE DESIGN
FOR YOUR INDIVIDUAL STYLE.
2 Persons Recommended for Assembling Shed
Tools Required:
DRILL DRIVER
HAMMER
HAND SAW
PLEASE NOTE: Use extreme caution when using any tools. Always wear safety gear where
necessary. It is advisable that at least 2 or more persons assemble the shed for health and safety
purposes. We are not responsible for any injuries caused whilst assembling this shed.
Ready to Build Shed

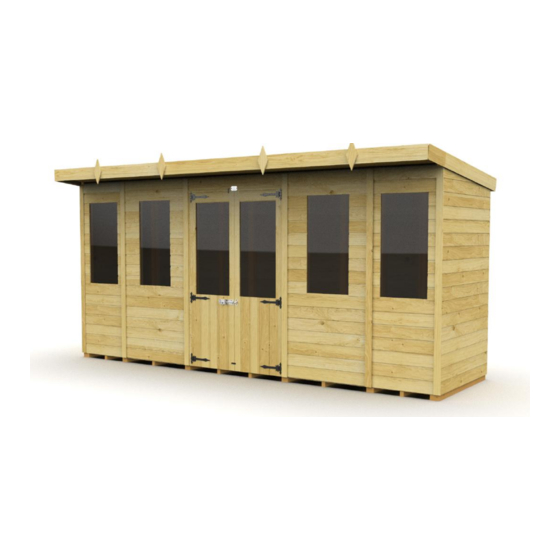

Featured Build of the Pent 14x4ft Summer House
Includes 4x4ft to 20x4ft Instructions
STANLEY KNIFE
Total Sheds
Unit 1 Park Lane,
West Bromwich, B21 8LE
Tel: 01902 636 529
Email: info@totalsheds.co.uk
Version 1.4
DELIVERED FLAT PACKED IN
EASY TO INSTALL SECTIONS
www.totalsheds.co.uk

Advertisement

loading
Need help?

Need help?

Do you have a question about the Pent Summer House 14x4ft and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for total sheds Pent Summer House 14x4ft

Summary of Contents for total sheds Pent Summer House 14x4ft

  • Page 1 Pent Summer House Assembly Manual Pressure Treated Tanalised Timber for Longer Lasting Life! Ready To Build - 4ft Range Total Sheds Unit 1 Park Lane, West Bromwich, B21 8LE Tel: 01902 636 529 Email: info@totalsheds.co.uk Version 1.4 Thank you for purchasing your Total Shed.

  • Page 2: Pre-Assembly

    PRE-ASSEMBLY STEP • 1 Unpacking your Parts Recommended: Paint shed in an oil based treatment to Unpack all of the components and check that prevent water ingress into you have all the parts required. Please use the the timber. Also silicon your checklist on previous page.
  • Page 3 STEP • 2 STEP • 3 IMPORTANT FIRST 4ft SIDE PANEL All Sheds With 3 or Place first panel againts More Floor Pannels far right of shed floor have the smallest Floor as shown. Panel on the End. (4ft wide blank panel) As shown on this diagram.
  • Page 4 STEP • 4 STEP • 5 LEFT SIDE PANEL SIDE & REAR PANELS Now attach Left Side Fix 2ft Wide Blank Panel (4ft wide section) Sections. Create a Corner for Balance. SIDE & REAR PANELS LEFT SIDE PANEL 4a. Place a 2ft Blank Panel side 5a.
  • Page 5 STEP • 6 STEP • 7 FRONT WINDOW FRONT WINDOW PANEL PANEL Attach Second Front Attach First Front Panel Window Panel (2ft Window Panel) (3ft Window Panel) FRONT WINDOW PANEL FRONT WINDOW PANEL 6a. Start back from the Right side placing the 2ft DO NOT screw the standing panels 7a.
  • Page 6 STEP • 8 STEP • 9 FRONT DOOR PANEL FRONT WINDOW Attach Door Front Panel PANEL (4ft Door Panel) Attach Last Front Panel (2ft + 3ft) FRONT DOOR PANEL FRONT WINDOW PANELS 8a. Now place the 4ft Door Panel as DID YOU KNOW? 9a.
  • Page 7 STEP • 10 STEP • 11 SIDE PENT ANGLE TOPS PENT FRONT TOPS Now attach all the Side Place the front tops of Tops of Pent Shed End shed. Use 2ft Section for Panels. below models. SIDE PENT ANGLE TOPS FRONT PENT TOPS 10a.
  • Page 8 STEP • 12 STEP • 13 SIDE & CORNER STRIPS PENT ROOF PANELS Hide the panel edges. Place First roof section. Cover the framework & Repeat for all Roof Panels seams. (2ft, 3ft, 4ft) SIDE & CORNER STRIPS PENT ROOF PANELS 13a.
  • Page 9 STEP • 14 STEP • 15 PENT ROOF CUTTING THE ROOF OVERHANGS FELT Place First Overhang Use the felt table to cut Section. Repeat for all your felt to the correct Roof Overhangs size (2ft, 3ft, 4ft) CUTTING THE ROOF FELT PENT ROOF OVERHANGS 15a.
  • Page 10 STEP • 16 STEP • 17 ATTACH THE ROOF FELT ATTACH FELT STRIPS Use the felt lengths Create the Final Roof provided. Edges. Final steps finishing off the roof. ROOF FELT FELT STRIPS 17a. Using the felt strips provided cover the edges of the roofs and ends of the roof felt. You will 16a.
  • Page 11 STEP • 18 STEP • 19 DIAMOND CAPS Add the Finishing Touch. (Optional) Total Sheds Unit 1 Park Lane, West Bromwich, B21 8LE Tel: 01902 636 529 Email: info@totalsheds.co.uk DIAMOND CAPS FINISHED 18a. Using the provided Diamond Caps you can create a nice finishing touch to the Build.
