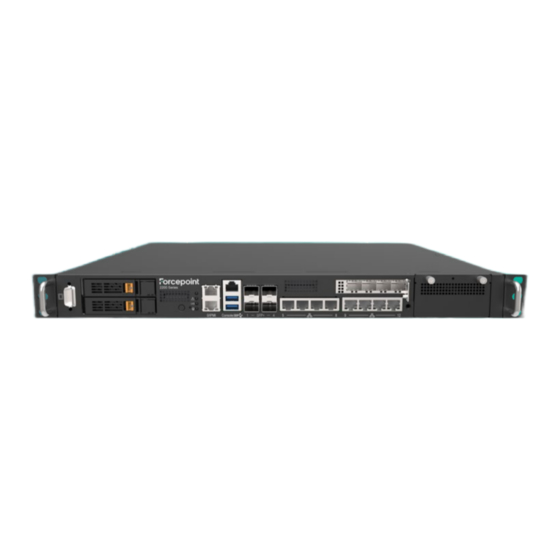

Forcepoint 2200 Series Hardware Manual

Next generation firewall
Hide thumbs
Table of Contents

Advertisement

Quick Links

Next Generation
Firewall
Models 2201, 2205, 2210
2200 Series
Hardware Guide
Revision A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2200 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Forcepoint 2200 Series

Summary of Contents for Forcepoint 2200 Series

  • Page 1 Next Generation Firewall Models 2201, 2205, 2210 2200 Series Hardware Guide Revision A...

  • Page 2: Table Of Contents

    There, you can access product documentation, release notes, Knowledge Base articles, downloads, cases, and contact information. You might need to log on to access the Forcepoint Customer Hub. If you do not yet have credentials, create a customer account. See https://support.forcepoint.com/CreateAccount.

  • Page 3: Model 2201 Features

    Next Generation Firewall Hardware Guide | Models 2201, 2205, 2210 Model 2201 features The figures and tables show the appliance components and features. Front panel This panel has the following parts. VGA port SSD slots 1-2 from top to bottom Only SSD 1 is included in the delivery.
  • Page 4 Next Generation Firewall Hardware Guide | Models 2201, 2205, 2210 Back panel This panel has the following parts. Power supply An AC power supply is included in the delivery. A DC power supply can optionally be purchased separately. Fixed fans 1–2 from left to right Grounding point...

  • Page 5: Model 2205 Features

    Next Generation Firewall Hardware Guide | Models 2201, 2205, 2210 Model 2205 features The figures and tables show the appliance components and features. Front panel This panel has the following parts. VGA port SSD slots 1-2 from top to bottom Only SSD 1 is included in the delivery.
  • Page 6 Next Generation Firewall Hardware Guide | Models 2201, 2205, 2210 Back panel This panel has the following parts. Power supply An AC power supply is included in the delivery. A DC power supply can optionally be purchased separately. Fixed fans 1–2 from left to right Grounding point...

  • Page 7: Model 2210 Features

    Next Generation Firewall Hardware Guide | Models 2201, 2205, 2210 Model 2210 features The figures and tables show the appliance components and features. Front panel This panel has the following parts. VGA port SSD slots 1-2 from top to bottom Power button and indicator lights Fixed Ethernet port.

  • Page 8: Indicator Lights

    Next Generation Firewall Hardware Guide | Models 2201, 2205, 2210 Back panel This panel has the following parts. Power supply 1 An AC power supply is included in the delivery. A DC power supply can optionally be purchased separately. Power supply 2 An AC power supply is included in the delivery.

  • Page 9: Ethernet Port Names For Appliances With Interface Modules

    For example, eth2_0 is located on port 0 of slot 2. Supported interface modules Forcepoint NGFW appliances support the following types of interface modules. For a list of all available interface modules and compatibility information, see Knowledge Base article 10245.
  • Page 10 Next Generation Firewall Hardware Guide | Models 2201, 2205, 2210 MODG8 module The MODG8 module is an 8 port gigabit Ethernet RJ45 module. Thumbscrews You must unfasten the thumbscrews to replace or remove the module. Fastening screw You must remove this screw to replace or remove the module. Activity/link indicators When green, the link is OK.
  • Page 11 Next Generation Firewall Hardware Guide | Models 2201, 2205, 2210 MODG8B module The MODG8B module is an 8 port gigabit Ethernet copper bypass module. Thumbscrews You must unfasten the thumbscrews to replace or remove the module. Fastening screw You must remove this screw to replace or remove the module. Ethernet ports 4–7 from left to right The Ethernet ports are used in the following even-odd pairs for bypass: ■...
  • Page 12 Next Generation Firewall Hardware Guide | Models 2201, 2205, 2210 MOD10L4B module The MOD10L4B module is a 4 port 10 gigabit Ethernet long reach bypass module. Thumbscrews You must unfasten the thumbscrews to replace or remove the module. Fastening screw You must remove this screw to replace or remove the module.
  • Page 13 Next Generation Firewall Hardware Guide | Models 2201, 2205, 2210 MOD10S4B module The MOD10L4B module is a 4 port 10 gigabit Ethernet short reach bypass module. Thumbscrews You must unfasten the thumbscrews to replace or remove the module. Fastening screw You must remove this screw to replace or remove the module.
  • Page 14 Next Generation Firewall Hardware Guide | Models 2201, 2205, 2210 MOD40F2B module The MOD40F2B module is a 2 Port 40 gigabit Ethernet QSFP+ bypass module. Thumbscrews You must unfasten the thumbscrews to replace or remove the module. Fastening screw You must remove this screw to replace or remove the module. Activity/link indicators When green, the link is OK.
  • Page 15 Next Generation Firewall Hardware Guide | Models 2201, 2205, 2210 MOD25F2 module The MOD25F2 module is a 2 port 25 gigabit Ethernet SFP+ module. Thumbscrews You must unfasten the thumbscrews to replace or remove the module. Fastening screw You must remove this screw to replace or remove the module. Activity/link indicators The indicators are labeled with the port that is represented.
  • Page 16 Next Generation Firewall Hardware Guide | Models 2201, 2205, 2210 MOD40F2 module The MOD40F2 module is a 2 port 40 gigabit Ethernet QSFP module. Thumbscrews You must unfasten the thumbscrews to replace or remove the module. Fastening screw You must remove this screw to replace or remove the module. Activity/link indicators The indicators are labeled with the port that is represented.
  • Page 17 Next Generation Firewall Hardware Guide | Models 2201, 2205, 2210 MOD10F4 module The MOD10F4 module is a 4 port 10 gigabit Ethernet SFP+ module. Thumbscrews You must unfasten the thumbscrews to replace or remove the module. Fastening screw You must remove this screw to replace or remove the module. Activity/link indicators The indicators are labeled with the port that is represented.
  • Page 18 Next Generation Firewall Hardware Guide | Models 2201, 2205, 2210 MODGF8 module The MODGF8 module is an 8 port gigabit Ethernet SFP module. Thumbscrews You must unfasten the thumbscrews to replace or remove the module. Fastening screw You must remove this screw to replace or remove the module. Activity/link indicators The indicators are labeled with the port that is represented.

  • Page 19: Precautions

    Link status indicator for the lower port When blue, the link is OK. Precautions The precautions provide safety guidance when working with Forcepoint appliances and electrical equipment. For additional safety information, see the Forcepoint Product Safety and Regulatory Compliance Guide.
  • Page 20 Next Generation Firewall Hardware Guide | Models 2201, 2205, 2210 General safety precautions Read the safety information and follow these rules to ensure general safety whenever you are working with electronic equipment. ■ Keep the area around the appliance clean and free of clutter. ■...

  • Page 21: Install The Appliance

    ■ The on-site installer is responsible for installing the appliance. For more information, see the Forcepoint Next Generation Firewall Installation Guide. To prepare for the appliance installation, the SMC administrator must do the following: If the SMC has not yet been installed, install the SMC.
  • Page 22 To maintain proper cooling, always keep the front door of the rack and all panels and components on the appliances closed when not servicing. Install the 2200 Series appliance in a 4 post rack using fixed brackets Use the rack-mounting brackets to secure the appliance in the rack.
  • Page 23 The bracket is used to support the appliance when setting the depth of the appliance in the rack. Attach the front panel to the front posts of the rack with three screws in each post. Install the 2200 Series appliance in a 4 post rack using sliding brackets Use separately purchased sliding brackets to install the appliance in a 4 post rack.
  • Page 24 Next Generation Firewall Hardware Guide | Models 2201, 2205, 2210 Attach an inner rail to each side of the appliance using three screws for each rail. ■ The inner rails are marked with "LH" for left and "RH" for right. ■...
  • Page 25 The rails lock into the rack when the appliance is pushed completely into the rack. Install the 2200 Series appliance in a 2 post rack Use the rack-mounting brackets to secure the appliance in the rack.
  • Page 26 Next Generation Firewall Hardware Guide | Models 2201, 2205, 2210 Attach a short bracket to each side of the appliance with five screws. Attach the brackets to the rack with three screws through the holes in the front of the brackets. Install an interface module If you have interface modules, install them in the appliance.
  • Page 27 Next Generation Firewall Hardware Guide | Models 2201, 2205, 2210 Push the module into the slot. Note If the module has a sticker, make sure that the sticker faces up. Important Do not insert the module in the wrong orientation. Inserting the modules incorrectly might damage the appliance and the modules and voids the warranty.
  • Page 28 Next Generation Firewall Hardware Guide | Models 2201, 2205, 2210 Example before and after ID mapping Connect network and management cables Connect the appliance to your networks. The management connection allows you to view the system console. Note Ethernet ports are mapped to interface IDs during the initial configuration. The ports and port numbers of the physical appliance must match the interface definitions and interface IDs configured for the engine in the Management Client.

  • Page 29: Maintenance

    Next Generation Firewall Hardware Guide | Models 2201, 2205, 2210 Steps Insert the SFP transceiver in the port slot until you feel the connector on the transceiver snap into place. Note Make sure that the latch on the SFP transceiver is up when you insert the SFP transceiver in the port slot.
  • Page 30 Next Generation Firewall Hardware Guide | Models 2201, 2205, 2210 Turn off the appliance Most Forcepoint NGFW appliance hardware components are not hot-swappable. Turn off the appliance from the NGFW Engine command line. The SMC administrator can also turn off the appliance remotely using the Management Client. For more information, see the Forcepoint Next Generation Firewall Product Guide.
  • Page 31 Next Generation Firewall Hardware Guide | Models 2201, 2205, 2210 Pull out the power supply module using the handle provided. Push the replacement power supply module into the power slot until it clicks in place. Replace the SSD Replace an SSD with another of the same model. Note We recommend fastening a grounding strap to your wrist so that it contacts your bare skin and attaching the other end of the strap to the appliance.
  • Page 32 In the network interface configuration options, make sure that the autodetected information is correct and that all interfaces have been detected. If autodetection fails, add network drivers manually. For detailed instructions, see the Forcepoint Next Generation Firewall Installation Guide. If the number of ports in the new module differs from the old module, adjust the mapping of interfaces to interface IDs.
  • Page 33 Next Generation Firewall Hardware Guide | Models 2201, 2205, 2210 Steps Turn off the appliance. Remove the interface module from the interface module slot. Locate the tab at the lower left corner of the plate. Insert the tab into the hole in the lower left corner of the slot casing.
  • Page 34 © 2021 Forcepoint Forcepoint and the FORCEPOINT logo are trademarks of Forcepoint. All other trademarks used in this document are the property of their respective owners. Published 17 December 2021...
