Appearance; Main Features - netvox R718DB2 User Manual

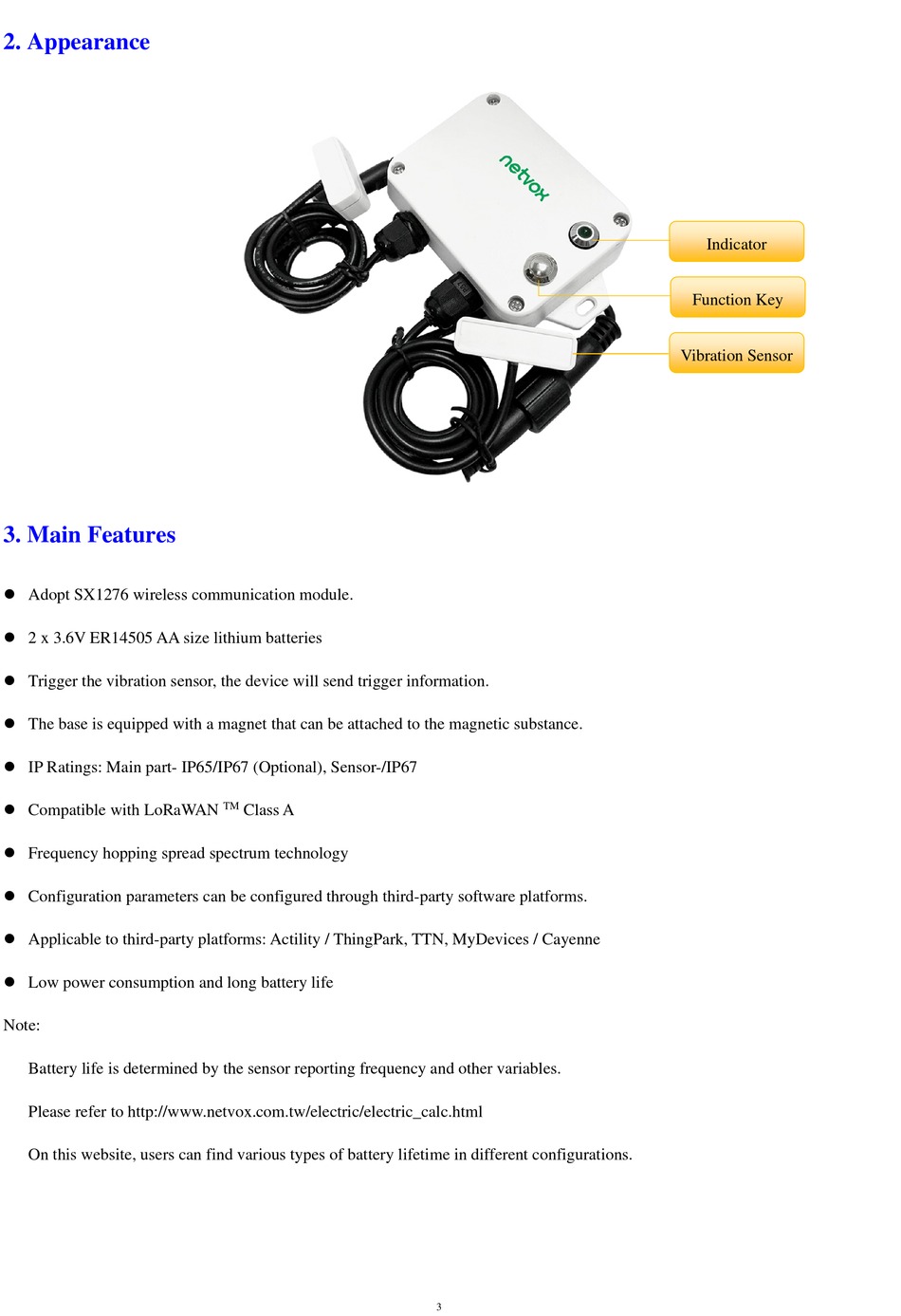

2. Appearance

3. Main Features

 Adopt SX1276 wireless communication module.
 2 x 3.6V ER14505 AA size lithium batteries
 Trigger the vibration sensor, the device will send trigger information.
 The base is equipped with a magnet that can be attached to the magnetic substance.
 IP Ratings: Main part- IP65/IP67 (Optional), Sensor-/IP67
 Compatible with LoRaWAN
 Frequency hopping spread spectrum technology
 Configuration parameters can be configured through third-party software platforms.
 Applicable to third-party platforms: Actility / ThingPark, TTN, MyDevices / Cayenne
 Low power consumption and long battery life
Note:
Battery life is determined by the sensor reporting frequency and other variables.
Please refer to http://www.netvox.com.tw/electric/electric_calc.html
On this website, users can find various types of battery lifetime in different configurations.
TM
Class A
3
Indicator
Function Key
Vibration Sensor
