Notes :
1) The device only wakes up and performs data sampling according to MinTime Interval. When it is sleeping, it does not
collect data.
2) The data collected is compared with the last data reported. If the data variation is greater than the ReportableChange value,
the device reports according to MinTime interval. If the data variation is not greater than the last data reported, the device
reports according to MaxTime interval.
3) We do not recommend to set the MinTime Interval value too low. If the MinTime Interval is too low, the device wakes up
frequently and the battery will be drained soon.
4) Whenever the device sends a report, no matter resulting from data variation, button pushed or MaxTime interval, another
cycle of MinTime/MaxTime calculation is started.

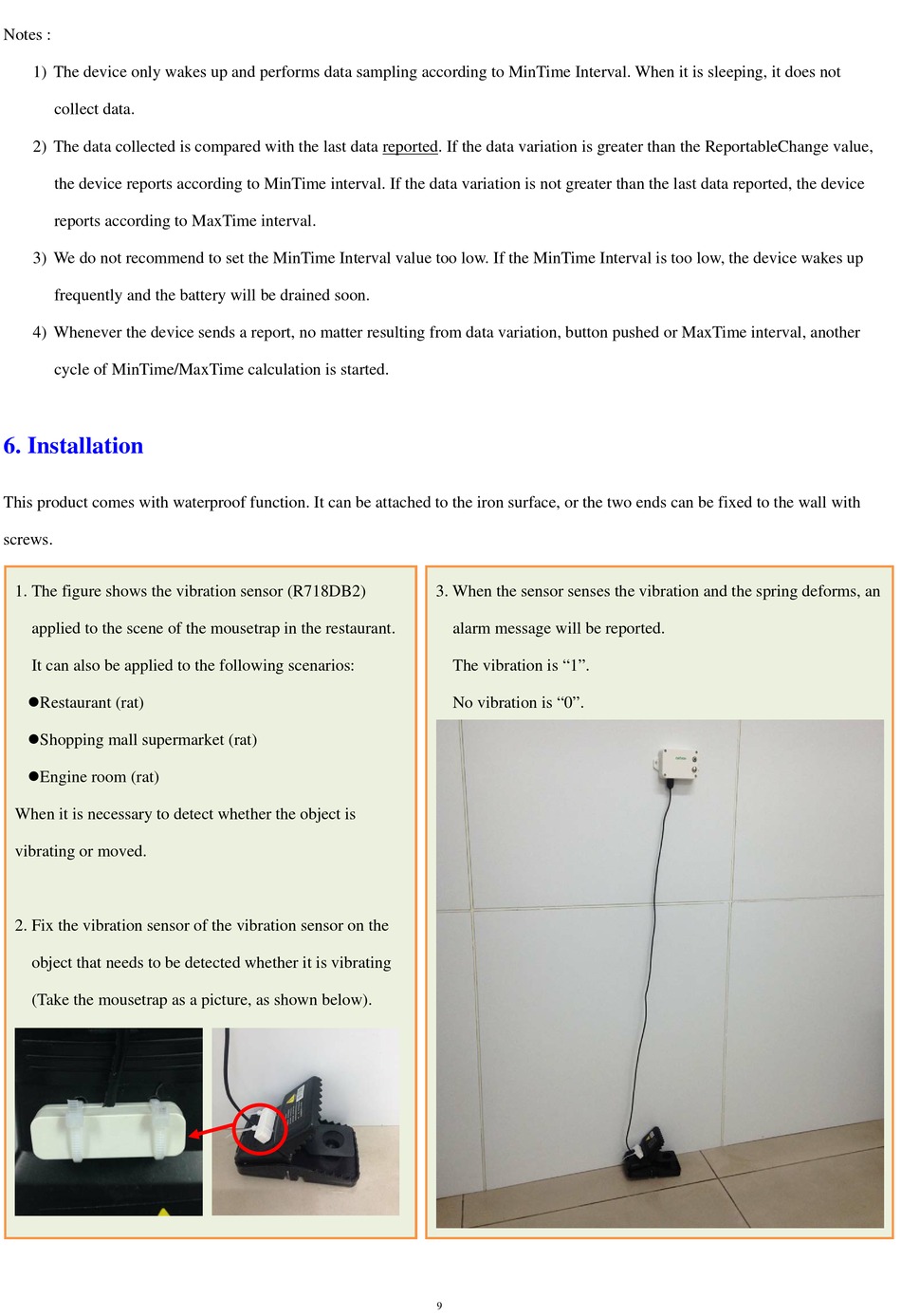

6. Installation

This product comes with waterproof function. It can be attached to the iron surface, or the two ends can be fixed to the wall with
screws.
1. The figure shows the vibration sensor (R718DB2)
applied to the scene of the mousetrap in the restaurant.
It can also be applied to the following scenarios:
Restaurant (rat)
Shopping mall supermarket (rat)
Engine room (rat)
When it is necessary to detect whether the object is
vibrating or moved.
2. Fix the vibration sensor of the vibration sensor on the
object that needs to be detected whether it is vibrating
(Take the mousetrap as a picture, as shown below).
3. When the sensor senses the vibration and the spring deforms, an
alarm message will be reported.
The vibration is "1".
No vibration is "0".
