R718DA2

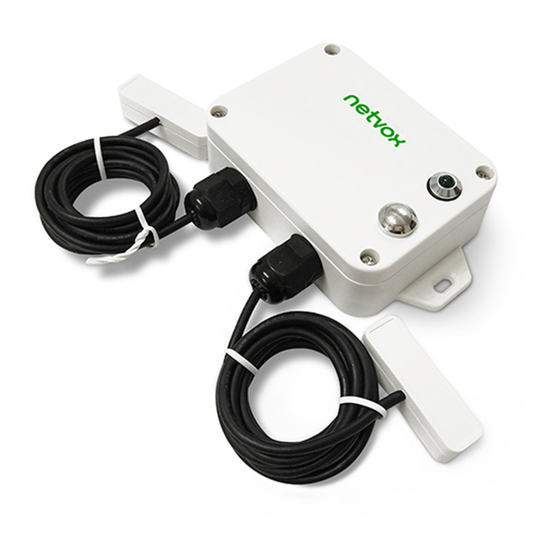

Wireless 2-Gang Vibration Sensor Rolling Ball Type
Wireless 2-Gang Vibration Sensor,
Rolling Ball Type
R718DA2
User Manual
Copyright©Netvox Technology Co., Ltd.
This document contains proprietary technical information which is the property of NETVOX Technology. It shall
be maintained in strict confidence and shall not be disclosed to other parties, in whole or in part, without written
permission of NETVOX Technology. The specifications are subject to change without prior notice.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the R718DA2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for netvox R718DA2

Summary of Contents for netvox R718DA2

  • Page 1 User Manual Copyright©Netvox Technology Co., Ltd. This document contains proprietary technical information which is the property of NETVOX Technology. It shall be maintained in strict confidence and shall not be disclosed to other parties, in whole or in part, without written...

  • Page 2: Table Of Contents

    Table of Content 1. Introduction ............................2 2. Appearance ............................3 3. Main Features ........................... 3 4. Set up Instruction ..........................4 5. Data Report ............................5 5.1 Example of ReportDataCmd ...................... 5 5.2 Example of ConfigureCmd ......................6 5.3 Example for MinTime/MaxTime logic ..................7 6.

  • Page 3: Introduction

    1. Introduction R718DA2 is a ball-type two-way vibration sensors of Netvox ClassA type equipment based on LoRaWAN open protocol. The sensor is attached to the detected device with magnet. When the device vibrates, the sensor is triggered. R718DA2 immediately sends the trigger information to the gateway. R718DA2 is compatible with LoRaWAN protocol.

  • Page 4: Appearance

     Low power consumption and long battery life Note: Battery life is determined by the sensor reporting frequency and other variables . Please refer to http://www.netvox.com.tw/electric/electric_calc.html On this website, users can find various types of battery life time in different configurations.

  • Page 5: Set Up Instruction

    4. Set up Instruction On/Off Power on Insert batteries (Users may need a screwdriver to open) Turn on Press and hold the function key for 3 seconds and the green indicator flash once. Turn off (Restore to factory setting) Press and hold the function key for 5 seconds and the green indicator flashes 20 times. Power off Remove Batteries.

  • Page 6: Data Report

    The device report interval will be programmed based on the default firmware which may vary. The interval between two reports must be the minimum time. Please refer Netvox LoRaWAN Application Command document and Netvox Lora Command Resolver http://cmddoc.netvoxcloud.com/cmddoc to resolve uplink data.

  • Page 7: Example Of Configurecmd

    (1Byte 0:off 1:on) (5Bytes,fixed 0x00) Example 1 of Uplink: 012F012401000000000000 byte (01): Version byte (2F): DeviceType 0x2F － R718DA2 byte (01): ReportType byte (24): Battery － 3.6V, 24(Hex) = 36(Dec), 36x0.1v=3.6v byte (01): Status － on byte (00): Status － off...

  • Page 8: Example For Mintime/Maxtime Logic

    Reserved 0x01 ReportReq (2bytes Unit: s) (2bytes Unit: s) (1byte Unit: 0.1v) (4Bytes, Fixed 0x00) Config Status Reserved 0x81 ReportRsp (0x00_success) (8Bytes, Fixed 0x00) R718DA2 0x2F ReadConfig Reserved 0x02 ReportReq (9Bytes, Fixed 0x00) ReadConfig MinTime MaxTime BatteryChange Reserved 0x82 ReportRsp...
  • Page 9 Example#2 based on MinTime = 15 Minutes, MaxTime= 1 Hour, Reportable Change i.e. BatteryVoltageChange= 0.1V. MaxTime Sleeping(MinTime) sleeping sleeping sleeping Wakes up and Wakes up and Wakes up and Wakes up and Wakes up and collects data collects data collects data collects data collects data REPORT 3.6V...

  • Page 10: Installation

    7. Information about Battery Passivation Many of Netvox devices are powered by 3.6V ER14505 Li-SOCl2 (lithium-thionyl chloride) batteries that offer many advantages including low self-discharge rate and high energy density. However, primary lithium batteries like Li-SOCl2 batteries will form a passivation layer as a reaction between the lithium anode and thionyl chloride if they are in storage for a long time or if the storage temperature is too high.

  • Page 11: Important Maintenance Instruction

    c. The voltage of the circuit should be ≧3.3, indicating successful activation. Brand Load Resistance Activation Time Activation Current 165 Ω NHTONE 5 minutes 20mA 67 Ω RAMWAY 8 minutes 50mA 67 Ω 8 minutes 50mA 67 Ω SAFT 8 minutes 50mA Note: If you buy batteries from other than the above four manufacturers, then the battery activation time, activation current, and...
