2-18 Compaq R6000 Series UPS Operation and Reference Guide
Connecting Communications Ports
Connecting Communication Ports to Other Devices
Installing and Connecting Communication Options
CAUTION: To avoid damage to the equipment, only use the communications
cables with the part number:
295245-004 (Twelve-foot interface cable)
One is supplied with your kit. This UPS/Computer Interface Cable carries power
and is specifically designed for UPS communications.
Connect Port 1 of the UPS communication ports to the appropriate
communication port on the host computer using a UPS/Computer Interface
Cable.
In a single host computer setup, Port 2 is used for additional power
management applications, such as Compaq Power Management Software,
LanSafe III, FailSafe III, and OnliNet.

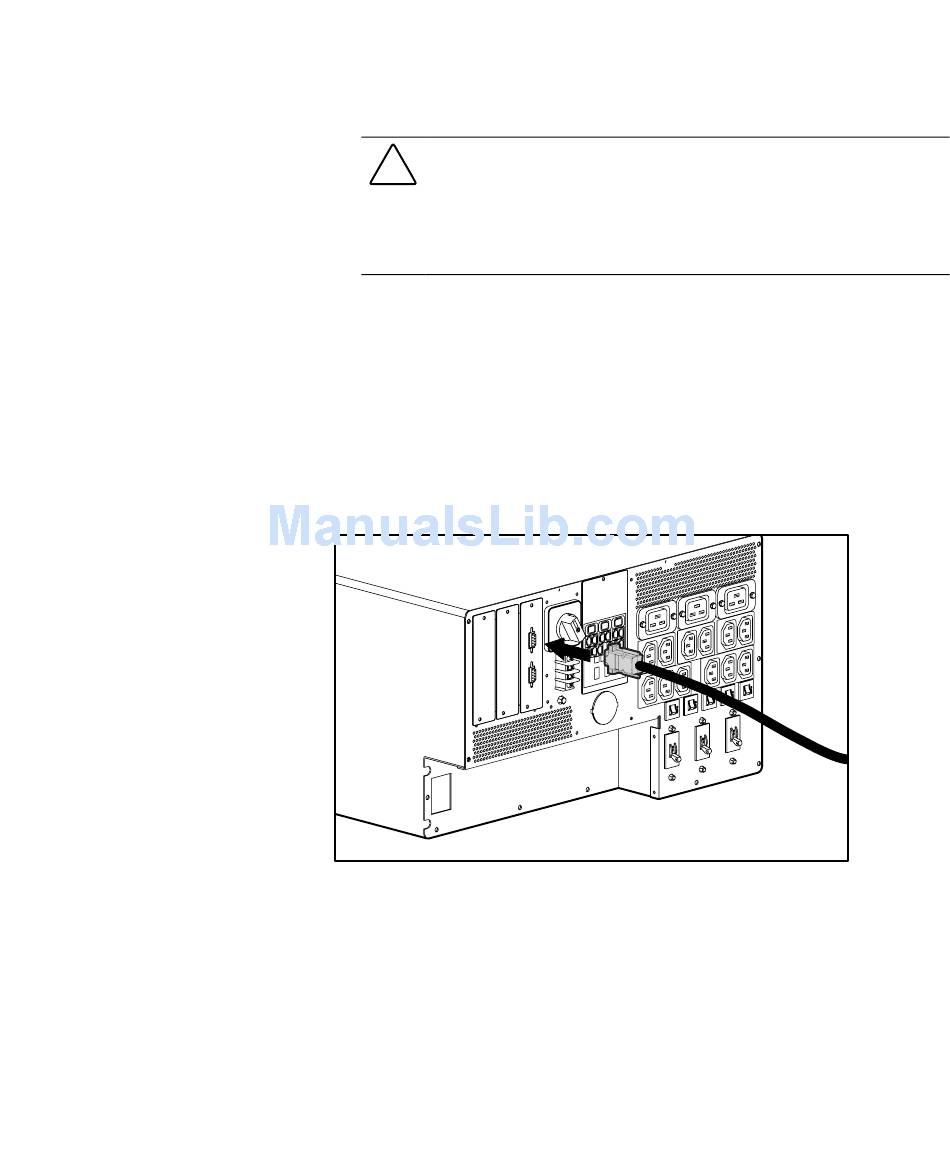

Figure 2-14. Connecting a DE9 communication cable
Option boards for the Compaq R6000 UPS include the Compaq Multi-Server
UPS Card, the Compaq Scalable UPS Card, and the Compaq SNMP-EN
Adapter. When using any of the Compaq option boards to expand the
capabilities of the Compaq R6000 UPS, install the options using the
instructions included with those kits.
BY PA SS
NO RM AL
3
2
1
3
3
2
2
1
1
5
5
5
4
4
4
5
3
2
4
1
3
1
2
&
4
REV . P00
4-00 1
1384 2524
