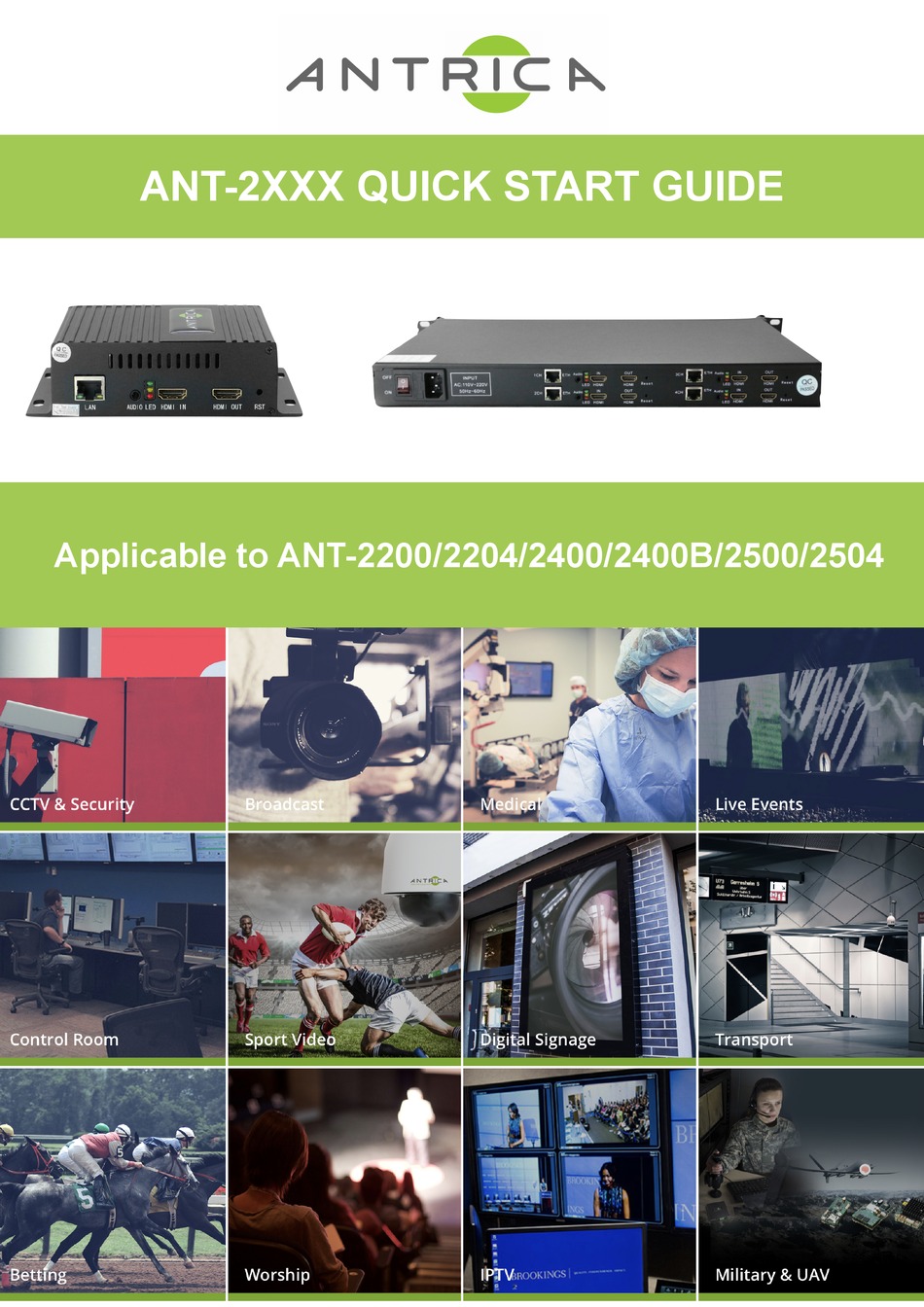

- Page 1 ANT-2XXX QUICK START GUIDE Applicable to ANT-2200/2204/2400/2400B/2500/2504 Antrica Quick Start Guide ANT-2XXX Series V12018 Page ! 1...
- Page 2 Please Note! This example shows setting of HDMI but setting HD-SDI models is the same. Also H265 encoders will have an additional pull down to select H265 or H264. Other than this settings are all the same Antrica Quick Start Guide ANT-2XXX Series V12018 Page ! 2...
- Page 3 192.168.1.168 or 200/201/202/203 as applicable You will be asked to LOGIN: User : admin , password: admin NOTE! 4 channel units if factory reset will default to 192.168.1.168 Antrica Quick Start Guide ANT-2XXX Series V12018 Page ! 3...
- Page 4 Multicast MPEG-TS streaming For RTMP you need 3 pieces of information RTMP Server IP: video.mudu.tv RTMP app name: 8eano RTMP stream name: zvrut9 rtmp://video.mudu.tv/ 8eano/zvrut9 After any changes always click APPLY Antrica Quick Start Guide ANT-2XXX Series V12018 Page ! 4...
- Page 5 Codec Functions HTTP Settings RTSP Settings MPEG TS Settings RTMP Settings To Enable ONVIF discovery select “Enable” In VLC player open a Network stream (see URLs page 4) and Apply Antrica Quick Start Guide ANT-2XXX Series V12018 Page ! 5...
- Page 6 The secondary stream can be set in HDMI 2nd. Note the URLs for secondary stream are using /hdmi_ext as opposed to /hdmi for the main stream. This can be changed as long as it is different to the main stream extension. Antrica Quick Start Guide ANT-2XXX Series V12018 Page ! 6...
- Page 7 Audio Codec: Choose AAC or MP3 (Note RTSP can be AAC or G711 PCM) AAC Type : Choose LC or HE here Resample: 32000 42100 resampling or disable. RTSP Audio: Select G711 (ONVIF ) or AAC Audio Gain: Adjust from +10 to -20dB Antrica Quick Start Guide ANT-2XXX Series V12018 Page ! 7...
- Page 8 ONVIF , the same as log in credentials unless changed. 5.2 Other Information Please visit our website www.antrica.com and browse to the product page (e.g ANT-2XXX ) where you can find a DOWNLOADS SECTION : - application notes...
