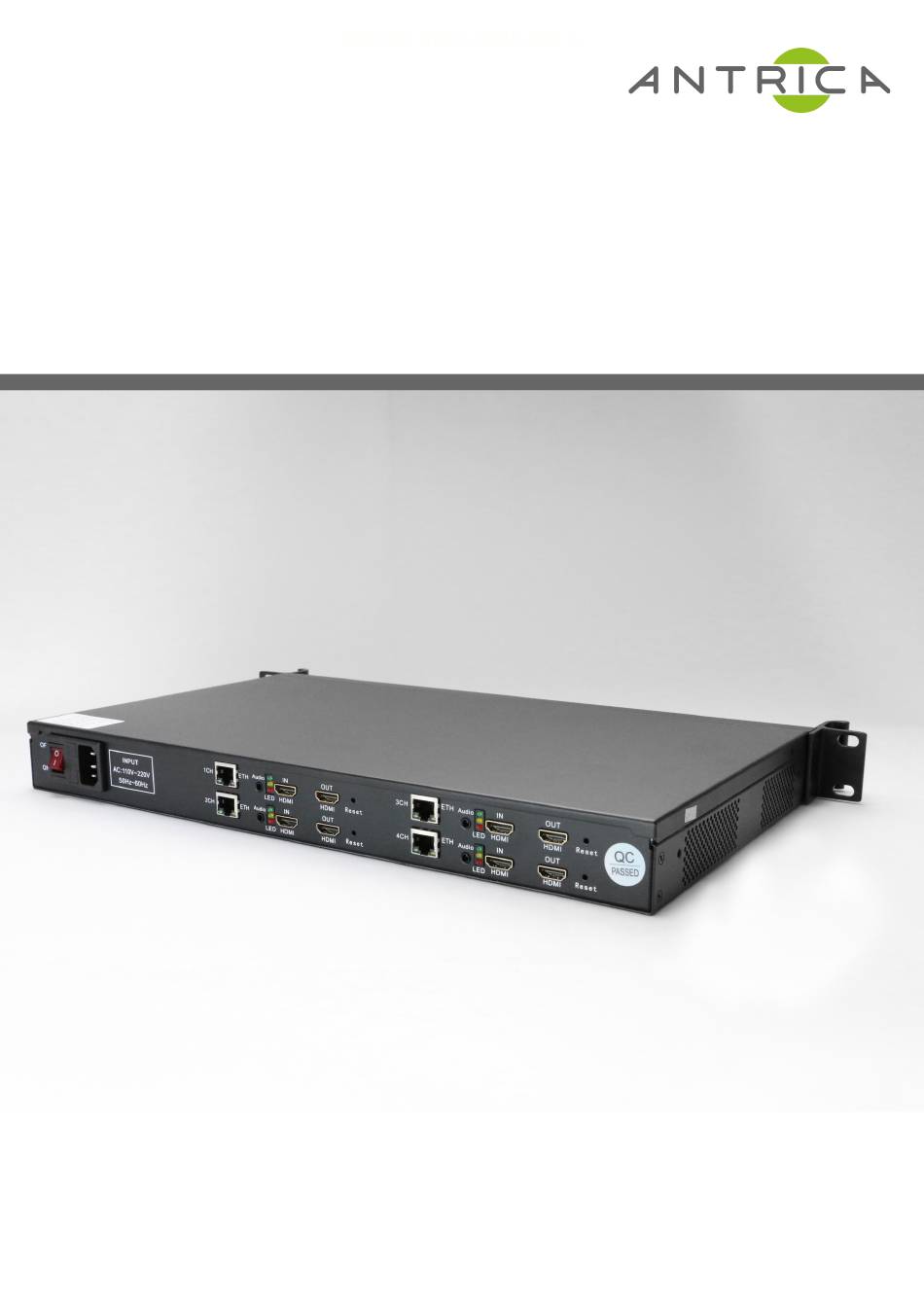

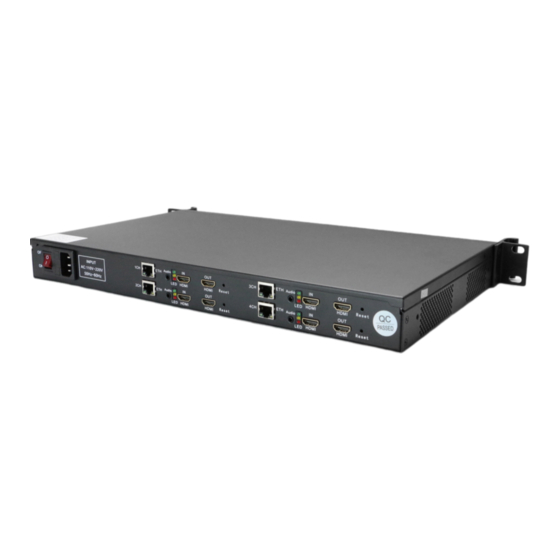

  • Page 1 USER MANUAL ANT-2014 ANT-2204 Video Encoder For further product information and downloads please visit www.antrica.com...
  • Page 2 Page 1 Table of contents Page 1.0 Safety Instructions: Precautions to avoid damage…....Page 2 2.0 Overview: Product overview…............Page 3 3.0 Main Features: Key features of the Encoder…......Page 4 4.0 Technical Specification: Specifications electrical & mechanical. Page 5 5.0 Signal Connections: Overview of main electrical connections….
  • Page 3 ● Make sure the AC power is unplugged in case of changing cables ● Only Antrica staff are approved to remove the case else the warranty will be invalid. ● Ensure good ventilation when the device is in operation as this may cause damage to the device due to overheating.
  • Page 4 Page 3 2.0 OVERVIEW The ANT-2010 HDMI ENCODER is a low cost , high performance and easy-to-use video streaming device for RTSP HTTP RTMP and MPEG-TS streaming. Designed for professional video applications requiring 1080P60 HDMI signals to be streamed live. This product has a 1 channel HDMI audio and video input interface, and can simultaneously encode video and audio.

  • Page 5: Main Features

    Page 4 3.0 MAIN FEATURES HDMI Input per Encoder unit Two hardware versions, 1channel Compact, 4channel 1RU (19 inch) Adjustable Protocol, Bitrate, Resolution, Profile per HDMI Source Input Dual streams out per HDMI input source simultaneously supports one channel up to 1920x1080p Full HD and one channel 1280x720 HD output (max) Each channel stream can support any one of the following UDP/RTSP/ HTTP/MPEG-TS/RTMP protocols...

  • Page 6: Technical Specification

    Page 5 4.0 TECHNICAL SPECIFICATION VIDEO Input 1x HDMI input v1.3a Resolution 1920 x1080P60 i60 1280 x720 50P/P60 etc Encoding H.264 High Profile to Baseline Video Bitrate 12-0.8 Mbits/sec Bitrate Mode CBR or VBR Adjustable GOP Video Pre Processing De-Interlacing , Noise reduction and image sharpening AUDIO Encoding...

  • Page 7: Signal Connections

    Page 6 5.0 SIGNAL CONNECTIONS When installing the Encoder each channel requires 4 connections. Power , Ethernet , Video input (HDMI) and Audio. Ethernet Interface RJ45 Audio Input Analogue Jack Video Input –HDMI IN/OUT RESET 12v DC Input ANT-2010 User Manual V1...
  • Page 8 Page 7 6.0 NETWORK When you enter the WEB interface using a browser, you will need to set the Laptop to a fixed IP address in the 192.168.1.xxx range Browse to 192.168.1.168 (default IP address of encoder) 192.168.1.200 201 202 and 203 (default IP address of encoder) You can now enter the settings page with a Log In of: User: admin...
  • Page 9 Page 8 7.0 STATUS > HDMI STATUS This page is an Informa@on page only and details the main seBngs of the encoder These settings can be changed further on in this manual. Access Address: This is the main HTTP URL for the main stream. Note that the main URL is http://192.168.1.168:80/hdmi and secondary URL for 2 Stream is http://192.168.1.200:80/hdmi http://192.168.1.168:80/hdmi_ext...
  • Page 10 Page 9 8.0 NETWORK > NETWORK On this page you can set up the main Network Settings of the encoder: 192.168.1.200 DHCP: Either is Enabled or Disabled (Fixed IP address) IP: Current IP address Netmask: Current Network Mask 255.255.255.0 or 255.255.0.0 etc Gateway: Router Gateway IP address DNS: DNS Server IP address if used MAC: The MAC address of this encoder (unique address)
  • Page 11 Page 10 9.0 HDMI MAIN > MAIN On this page you can see the settings as they apply to the HDMI input such as Streaming type, encoding settings such as bit rate frame rate etc. More details are described on the following 4 pages: ANT-2010 User Manual V1...
  • Page 12 Page 11 9.1 HDMI MAIN > MAIN (part 1 of 4) Here you are able to change the main stream settings as they relate to H264 encoding. Channel Name: The name given to this stream (chan) appears on web page only Bitrate Control: CBR (Constant Bit Rate) or VBR (Variable Bit Rate) Key Interval: This is the I frame interval or Key Frame .
  • Page 13 Page 12 9.2 HDMI MAIN > MAIN (part 2 of 4) Here you can change settings to do with MPEG-TS streams and also adjust the encoder for optimum decoding using FFMPEG or VLC based players. Package A or B: If using an FFMPEG based decoder use Package A , If using VLC based decoder use Package B.
  • Page 14 Page 13 9.3 HDMI MAIN > MAIN (part 3 of 4) These settings define HTTP and RTSP streaming parameters and enable or disable these streams. HTTP Format: Enables or Disables the HTTP streaming format HTTP Port: Set the port to be used for http streaming (usually port 80) RTSP URL: Set the stream identifier used in RTSP streaming e.g rtsp://192.168.1.168:554/hdmi Stream identifier “hdmi”...
  • Page 15 Page 14 9.4 HDMI MAIN > MAIN (part 4 of 4) These settings define the MPEG-TS or RTMP stream settings Unicast IP: This refers to MPEG-TS streaming , set up the IP address of the Receiving Decoder here Unicast Port: This refers to MPEG-TS streaming in unicast mode, set the Port here Multicast IP: This refers to MPEG-TS streaming in multicast mode.
  • Page 16 Page 15 10.0 HDMI 2 > SECONDARY On this page you can define parameters to do with a secondary stream with individual settings for the secondary stream. All settings are the same as primary stream but totally independent. There may be some limitations when the primary stream is set to max resolution frame rate as CPU loading will be at its peak.
  • Page 17 Page 16 11.0 AUDIO EXPAND > AUDIO SETTING These settings allow the user to adjust the audio characteristics of the encoder Audio Input: Select either line input (analogue jack) or embedded audio via HDMI input Audio Bitrate: choose the bit rate for audio encoding Audio Channel: Stereo Mono L or Mono R can be selected Audio Codec: Choose AAC or MP3 (Note RTSP can be AAC or G711 PCM) AAC Type : Choose LC or HE here...
  • Page 18 Page 17 12.0 AUDIO EXPAND > MAIN OSD SETTING / 2 OSD SETTING These settings allow you to define the position colour and size of both text and a bitmap image burnt into the streaming video.The text and image will be displayed at the receiving end. 2nd OSD Setting: Select an On Screen Display to be burnt into the SECONDARY stream...
  • Page 19 Page 18 13.0 AUDIO EXPAND > COLOUR SETTING These settings allow the user to adjust Brightness, Contrast Hue and Saturation of the image being streamed Brightness; Set from 0-100 (100 is maximum ) Contrast; Set from 0-100 (100 is maximum ) Hue;...
  • Page 20 Page 19 14.0 AUDIO EXPAND > IMAGE SETTING These settings allow you to set up various filters to improve the image quality NOISE: Enable or disable a noise filter for removing white noise from camera images typically found on night time images. SHARPENING: Enables a sharpening filter for improving edge detail SHARPENING STRENGTH: Allows the user to set up the level of sharpening FILTERING: OPEN /CLOSE Leave Open this feature is not supported currently...
  • Page 21 ONCE YOU CLICK UPDATE DO NOT TURN OFF THE SYSTEM UNTIL THE UNIT REBOOTS OR WAIT 5 MINUTES BEFORE DEPOWERING. FAILURE TO FOLLOW THIS STEP WILL RESULT IN THE UNIT NO LONGER FUNCTIONING AND WILL NEED TO BE SENT BACK TO ANTRICA. 15.0...
